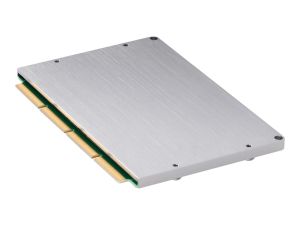

BKCM11EBI38W | Intel NUC 11 Compute Element - CM11EBi38W

Essentials

Product Collection

Intel NUC Compute Elements

Code Name

Products formerly ELK BAY

Status

Launched

Launch Date

Q1'21

Expected Discontinuance

1H'24

Supported Operating Systems

Windows 10, 64-bit*, Windows 10 IoT Enterprise*, Red Hat Linux*, Ubuntu 20.04 LTS*

Board Form Factor

U-Series Compute Element (95 x 65 x 6 mm)

Processor Included

Intel Core i3-1115G4 Processor (6M Cache, up to 4.10 GHz)

Intel vPro Platform Eligibility

No

# of Cores

2

# of Threads

4

Max Turbo Frequency

4.10 GHz

Warranty Period

3 yrs

Supplemental Information

Embedded Options Available

No

Description

Platform benefits of 11th Gen Intel Core processors include revolutionary Intel Iris Xe graphics and support for advanced wireless and wired connectivity with Intel Wi-Fi 6 (Gig+) and Thunderbolt technology.

Memory & Storage

Included Memory

8GB (dual-channel)

Memory Types

LPDDR4x-4266

ECC Memory Supported

No

Processor Graphics

Integrated Graphics

Yes

Graphics Output

2x DDI (DP or HDMI), 1x DP/typeC, 1x eDP

# of Displays Supported

4

Expansion Options

PCI Express Configurations

1x PCIe x4 Gen 3 (NVMe/SATA) 1x PCIe x4 Gen 4 (NVMe) 1x PCIe x1 Gen 3

I/O Specifications

USB Configuration

4x USB 3.2 Gen 2 3x USB 2.0

Integrated LAN

Built-in GbE MAC (for i219 PHY)

Integrated Wireless

Intel Wi-Fi 6 AX201

Integrated Bluetooth

Yes

Additional Headers

HD Audio, DMIC, eSPI

# of Thunderbolt Ports

1x Thunderbolt 4

Advanced Technologies

Intel Virtualization Technology for Directed I/O (VT-d)

Yes

Intel vPro Platform Eligibility

No

Intel ME Firmware Version

15

Intel Virtualization Technology (VT-x)

Yes

Intel Platform Trust Technology (Intel PTT)

Yes

Security & Reliability

Intel AES New Instructions

Yes

Intel Trusted Execution Technology

No
