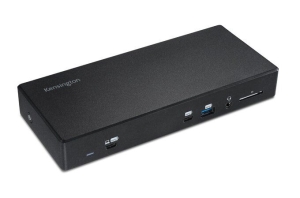

Kensington SD4850P USB-C 10Gbps Dual Video Driverless Docking Station
- 100W PD - DP++/HDMI - Windows
Overview
Driverless, USB-C Connectivity with 10Gbps Data Transfer Speed and
100W Power Delivery (PD 3.0)
No driver installation required to access 10Gbps Data Transfer Speed and 100W
Power Delivery (PD 3.0). The best docking station for all Windows OS laptops
with a USB-C port supporting DisplayPort Alt Mode and Power
Delivery.
Numerous Video Ports
With two DisplayPort++ ports and one HDMI port, the user can select the right
connections and resolutions for their needs an optional USB-C Alt Mode can be
used in place of one DP++ port. Resolutions supported vary by the device
connected (see manual or specifications table for more
information).
Dynamic Video Support
Supports a minimum resolution of Single 4K @ 30Hz, Dual 1080p @ 60Hz, and
Triple 1600x900 @ 60Hz when connected to a DP1.2/HBR2 device and a maximum
resolution of Single 4K @ 60Hz, Dual 4K @ 60Hz, and Triple 4K at 60Hz when
connected to a DP1.4 HBR3 device. A dynamic 4K switch allows you to toggle
between modes, prioritizing resolution over USB, Ethernet, and SD Card speeds.
See manual or specifications table for more information.
Universal Windows Compatibility
A windows dock that connects seamlessly to any laptop running Windows 7 and
above.
13-in-1 design with 6 USB-ports
Complete with 6 USB-ports that give full power to your laptop and devices.
Its front side features one USB-C 3.2 Gen2 port up to 5V/3A/10Gbps, one USB-A
3.2 Gen2 port up to 5V/2.4A/10Gbps, a combo audio port, and a UHS II SD 4.0
Memory Card Reader. Its rear features four USB-A 3.2 Gen1 ports up to
5V/0/9A/5Gbps, a Gigabit Ethernet port, and four video ports: two DP++ ports,
one HDMI port, and one USB-C port.
UHS II SD 4.0 Memory Card Reader
Eliminates the need for additional adapters and accessories to transfer large
hi-res photos and video footage at ultra-fast speeds.
Free Kensington DockWorks Software and 3-Year
Warranty
DockWorks WiFi Auto-Switch guarantees the fastest, most reliable internet
connection, while MAC Address ID Pass-Through and Reset and Device Connection
Monitoring give IT managers maximum network monitoring and visibility.
Kensingtons 3-Year Warranty lets you rest assured, covered by
Kensington.
The SD4850P USB-C 10Gbps Dual Video Driverless Docking Station - 100W PD -
DP++/HDMI - Windows is the top-of-the-line USB-C driverless dock for any Windows
OS laptop with a USB-C port supporting DisplayPort Alt Mode and Power Delivery.
One connection expands your Windows 7 or above laptop into a fully powered yet
streamlined desktop setup supporting up to Dual 4K via a 13-in-1 design complete
with 6 USB-ports.
- Best For: Windows OS (7 or above) laptop with a USB-C port supporting
DisplayPort Alt Mode and Power Delivery
- Connection Technology: USB-C
- Power Delivery: Supports up to 100W of Power Delivery (PD 3.0)
- Compatibility: Compatible with Windows 7 or above laptops with a USB-C
port supporting DisplayPort Alt Mode and Power Delivery
- # of Monitors Supported: 2
- Video Ports: 2 x DisplayPort++ ports and 1 x HDMI port
- Maximum Resolution Supported: Single 4K @ 60Hz, Dual 4K @ 60Hz, and Triple
4K at 60Hz when connected to a DP1.4 HBR3 device
- Plug & Play: Plug & play installation, though installation of
Kensington DockWorks software is recommended for the best connection,
performance, and security from your Kensington universal docking
station
- System Requirements: Driverless no firmware or software required for
setup
- Warranty: 3 Years
- USB-C Microsoft Devices: We are aware of a general USB-C compatibility
issue between USB-C docking stations (not only those from Kensington) and
USB-C based Microsoft devices. The issue results in a lack of consistent
charging and video output to your USB-C Microsoft device. If you would like to
contact us to be updated when a fix is in place, please reach out to our Tech
Support team.
Specifications
|
Connection
technology |
USB-C
Alt Mode |
|
Driverless |
Yes |
|
Number
of Screen Outputs |
3 |
|
Video
ports |
DisplayPort++,
USB-C, HDMI |
|
Maximum
resolution |
4K |
|
Power
delivery |
100W |
|
Operating
system(s) |
Windows |
|
Number
of USB ports |
6 |
|
USB
fast charging |
Yes |
|
Docking
station family |
The
Task Master |
|
DockWorks |
Yes |
|
Best
For |
USB-C
Laptops & Ultrabooks that support Power Delivery and Monitors that
support up to dual 4K (4 Lane mode) |
|
Compatibility |
Windows
7 or above |
|
Card
Reader |
SD
Card Slot (UHS-II, SD4.0) |
|
USB-A
ports |
5x:
(1) USB-A 3.2 Gen2 (front) with 5V/2.4A fast-charging & (4) USB-A 3.2
Gen1 (back) supporting 5V/0.9A |
|
USB-C
ports |
1
x: USB-C 3.2 Gen2 (front) with 5V/3A charging |
|
Audio |
1
x 3.5mm Combo Microphone & Headphone Port
(front) |
|
Data
transfer speeds |
Supports
up to 10Gbps data transfer speed |
|
Ethernet
Speed (Mbps) |
1000,
100, 10 |
|
Maximum
resolution supported |
Minimum
Resolution (DP1.2/HBR2): Single 4K @ 30Hz Dual 1080p @ 60Hz Triple
1600x900 @ 60Hz ,Maximum Resolution (DP1.4/HBR3): Single 4K @ 60Hz Dual 4K
@ 60Hz Triple 4K @ 60Hz |
|
Period
of Warranty |
3
years |
|
Plug
& play |
Plug
& play installation without need for drivers or
downloads |
|
Security
slot compatibility |
Kensington
Security Slot, Kensington Nano Security Slot |
|
System
requirements |
Host
device must support Power Delivery and DisplayPort Alt mode over
USB-C |
|
USB-C
Power Delivery |
Supports
USB-C PD 3.0 (100W of laptop charging) |
|
Video
output |
1
x HDMI v2.0, 1 x USB-C DP ALT Mode, 2 x DisplayPort++
v1.4 |
|
4K
support |
Yes |
