All stock codes associated to this product
USB3SDOCKHDV, 2452823

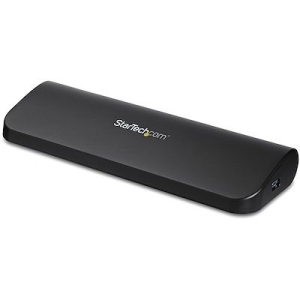

StarTech Dual-Monitor USB 3.0 Docking Station with HDMI &
DVI/VGA
Overview
This USB 3.0 dock combines three USB 3.0 ports, headphone and microphone
audio connectors, and a Gigabit Ethernet RJ45 port, into a single docking
station for maximum productivity.
Display Adaptability
Offering flexible dual video combinations right out-of-the-box, this
universal laptop docking station features HDMI, DVI and VGA external monitor
outputs. Each video output supports HD video resolutions (2048x1152 max) and HD
video playback for an ideal solution to expanding your notebook's video
capability.
Available display combinations:
Integrated USB Hub
The built-in USB hub features three USB 3.0 ports for connecting extra
peripherals such as external hard drives or a wired mouse, as if they are
connected directly to your laptop.
Direct Ethernet Connectivity
The integrated RJ45 Ethernet port supports speeds of 10/100/1000 Mbps, giving
you an instant connection to a wired network.
StarTech.com laptop docking stations can be used for cost savings and faster
deployment with just a single cable. This USB 3.0 Docking Station is backed by a
competitive 3-year warranty and free lifetime Technical Support.
Specifications
|
Compatibility |
Windows
XP SP3 (32-bit), Vista, 7, 8, 8.1, 10 |
|
macOS
10.6 - 10.12, 10.14 - 10.15, 11.0 |
|
Chrome
v69+ |
|
Warranty
Information |
|
|
Warranty |
3
Years |
|
Connector(s) |
|
|
2
- Connector Type(s) |
3.5
mm Mini-Jack (3 Position) |
|
1
- Connector Type(s) |
DVI-D
(25 pin) |
|
RJ-45 |
|
VGA
(15 pin, High Density D-Sub) |
|
HDMI
(19 pin) |
|
USB
Type-B (9 pin) USB 3.0 |
|
3
- Connector Type(s) |
USB
Type-A (9 pin) USB 3.0 (5 Gbps) |
|
Environmental |
|
|
Operating
Temperature |
0C
to 40C (32F to 104F) |
|
Storage
Temperature |
-10C
to 60C (14F to 140F) |
|
Humidity |
0~90%
RH |
|
Hardware |
|
|
4K
Support |
No |
|
Fast-Charge
Port(s) |
No |
|
Displays
Supported |
2 |
|
Bus
Type |
USB
3.0 |
|
Industry
Standards |
IEEE
802.3, IEEE 802.3u, IEEE 802.3ab, USB 3.0 |
|
Chipset
ID |
DisplayLink
- DL-3900 |
|
Genesys
Logic - GL3520 |
|
Realtek
- RTL8211E |
|
Packaging
Information |
|
|
Package
Height |
2,6
in [66 mm] |
|
Package
Length |
11,7
in [29,6 cm] |
|
Shipping
(Package) Weight |
31,0
oz [878 g] |
|
Package
Width |
7,7
in [19,5 cm] |
|
Performance |
|
|
Maximum
Data Transfer Rate |
5
Gbps (USB 3.0) |
|
2
Gbps (Ethernet; Full-Duplex) |
|
Maximum
Analog Resolutions |
2048x1152
(VGA) |
|
Maximum
Digital Resolutions |
1920x1200
(DVI-D) |
|
1920x1080
(HDMI) |
|
Lower
resolutions are also supported. |
|
Audio
Specifications |
The
HDMI port supports audio output |
|
Type
and Rate |
USB
3.0 - 5 Gbit/s |
|
Compatible
Networks |
10/100/1000
Mbps |
|
Auto
MDIX |
Yes |
|
Full
Duplex Support |
Yes |
|
Physical
Characteristics |
|
|
Weight
of Product |
10,4
oz [295 g] |
|
Color |
Black |
|
Material |
Plastic |
|
Cable
Length |
35,4
in [90 cm] |
|
Product
Length |
12,0
in [30,4 cm] |
|
Product
Width |
7,0
in [17,8 cm] |
|
Product
Height |
1,7
in [44 mm] |
|
Power |
|
|
Power
Source |
AC
Adapter Included |
|
Input
Voltage |
100
- 240 AC |
|
Input
Current |
0.9
A |
|
Output
Voltage |
5
DC |
|
Output
Current |
4:00
am |
|
Center
Tip Polarity |
Positive |
|
Plug
Type |
B |
|
Power
Consumption (In Watts) |
20 |
|
Software |
|
|
OS
Compatibility |
Windows
XP SP3 (32-bit), Vista, 7, 8, 8.1, 10 |
|
macOS
10.6 - 10.12, 10.14 - 10.15, 11.0 |
|
Chrome
v69+ |
|
Special
Notes / Requirements |
|
|
System
and Cable Requirements |
USB
3.0 enabled computer system with available USB 3.0
port |
|
Available
AC electrical outlet |
|
HDMI
(and either DVI-D or VGA if dual display is desired) enabled display
device(s) e.g. monitor, projector, HTDV, etc. with
cables |
|
What's
in the Box |
|
|
1
- Included in Package |
Docking
Station |
|
0.9m
USB 3.0 Cable |
|
Universal
Power Adapter (NA/EU/UK/AU) |
|
Installation
CD |
|
Instruction
Manual |
