All stock codes associated to this product
CDPVGDVHDB, 3502285

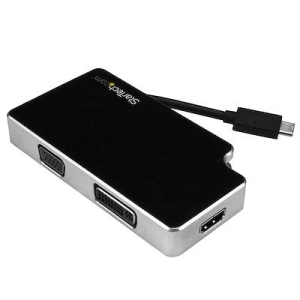

Startech Travel A/V Adapter: 3-in-1 USB-C to VGA, DVI or HDMI -
4K
Overview
This 3-in-1 travel adapter offers a portable solution for connecting your
USB-C computer to a VGA, DVI, or HDMI display.
The travel adapter is compatible with your DP alt mode computer. DP alt mode
means your computer can pass a DisplayPort video signal through the USB-C
port.
Stylish connectivity for your USB-C laptop
This travel adapter comes with a built-in black USB-C cable and works well
with your Dell XPS, MacBook and any device that supports USB-C DP alt
mode.
All-in-one video connectivity, with travel in
mind
Instead of carrying three separate video adapters in your laptop bag, this
3-in-1 adapter gives you all the video outputs you'll need. With VGA, DVI and
HDMI outputs, this adapter lets you connect from your laptop's USB Type-C port
to almost any boardroom or classroom display, without the inconvenience of
carrying a separate adapter for each display type.
With support for multiple video outputs and a small-footprint design, this
adapter is the ideal plug-and-play solution for travel or BYOD (Bring Your Own
Device) applications around the office.
Innovative, built-in cable manager
The adapter features a built-in cable fastener. Simply tuck the cable into
place along the side of the adapter for quick and secure storage while youre
traveling to ensure the adapter is neatly stored in your travel
bag.
Astonishing picture quality
The HDMI output on this travel adapter supports Ultra HD 4K resolutions,
providing four times the picture quality of high-definition 1080p. The HDMI
output is also backward compatible with lower resolutions, such as 1080p and
720p, so the adapter is also perfect for your legacy video equipment. The VGA
and DVI outputs also support high-definition maximum resolutions of up to 1920 x
1200, so you can still enjoy excellent video quality.
The travel adapter is compatible with USB Type-C Intel Thunderbolt 3 devices
that are capable of outputting a DisplayPort signal.
The CDPVGDVHDB is backed by a StarTech.com 3-year warranty and free lifetime
technical support.
Notes
- macOS 10.12.6 or later is required for your MacBook to support this
product.
- Your USB-C equipped host laptop must support video (DP alt mode) to work
with this adapter. The adapter does not support USB Power Delivery.
Specifications
|
Warranty
Information |
Warranty |
3
Years |
|
Connector(s) |
1
- Connector A |
USB-C
(24 pin) DisplayPort Alt Mode |
|
1
- Connector B |
VGA
(15 pin, High Density D-Sub) |
|
|
DVI-I
(29 pin) |
|
|
HDMI
(19 pin) |
|
Environmental |
Operating
Temperature |
5C
to 35C (41F to 95F) |
|
Storage
Temperature |
-40C
to 70C (-40F to 158F) |
|
Humidity |
5~95%
RH |
|
Hardware |
Active
or Passive Adapter |
Active |
|
AV
Input |
USB-C |
|
AV
Output |
HDMI
- 1.4 |
|
|
VGA |
|
|
DVI-I
(Digital Only) - Single-Link |
|
Chipset
ID |
Cypress
- CYPD2120-24LQXIT |
|
Cypress
- CY7C65217 |
|
Analogix
- ANX9847FN-AA-R |
|
MegaChips
- MCDP2850-BC |
|
Packaging
Information |
Package
Height |
1.3
in [32.0 mm] |
|
Package
Length |
6.9
in [17.4 cm] |
|
Shipping
(Package) Weight |
5.8
oz [165.0 g] |
|
Package
Width |
5.7
in [14.4 cm] |
|
Performance |
Audio
Specifications |
HDMI
- 7.1 Channel Audio |
|
Video
Revision |
DisplayPort
1.2 |
|
Maximum
Cable Distance To Display |
49.9
ft [15.2 m] |
|
Audio
Specifications |
DVI
- No Audio Support |
|
Video
Revision |
HDMI
1.4 |
|
Audio
Specifications |
VGA
- No Audio Support |
|
Maximum
Analog Resolutions |
1920
x 1200 @ 60Hz |
|
Maximum
Digital Resolutions |
3840
x 2160 @ 30Hz |
|
Supported
Resolutions |
HDMI
output: 3840 x 2160, 2560 x 1600, 1920 x 1200, 1920 x 1080, 1280
x 720 |
|
|
DVI
and VGA output: 1920
x 1200, 1920 x 1080, 1280 x 720 |
|
Wide
Screen Supported |
Yes |
|
General
Specifications |
Only
one video output is supported on the video adapter at a time. If multiple
connections are made, only one of the outputs will
function. |
|
Physical
Characteristics |
Color |
Black
& Silver |
|
Material |
Plastic |
|
Cable
Length |
3.5
in [90 mm] |
|
Product
Length |
4.3
in [11.0 cm] |
|
Product
Width |
2.4
in [60.0 mm] |
|
Product
Height |
0.7
in [18.0 mm] |
|
Weight
of Product |
2.4
oz [67.0 g] |
|
Special
Notes / Requirements |
System
and Cable Requirements |
Your
USB-C port must support DisplayPort over USB-C (DP Alt mode) in order to
work with this adapter. |
|
Note |
macOS
10.12.6 or later is required for your MacBook to support this
product. |
|
|
Your
USB-C equipped host laptop must support video (DP alt mode) to work with
this adapter. The adapter does not support USB Power
Delivery. |
|
|
Maximum
Cable Distance to Display refers to digital video. VGA distance
capabilities are dependent upon the quality of your
cabling |
|
What's
in the Box |
1
- Included in Package |
USB-C
travel adapter |
