All stock codes associated to this product
HB30C3AGEPD, 3614348

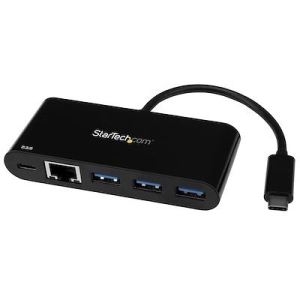

Startech 3 Port USB-C Hub with Gigabit Ethernet & 60W Power
Delivery Passthrough Laptop Charging - USB-C to 3x USB-A (USB 3.0 SuperSpeed
5Gbps) - USB 3.1/3.2 Gen 1 Type-C Adapter Hub
Overview
This 3-port USB 3.0 hub with Gigabit Ethernet couples your USB peripheral and
RJ45 network connections into a single convenient hub, with support for USB
Power Delivery. This means that you can power and charge your laptop through its
USB-C port while simultaneously powering the hub.
With its integrated USB Type-C cable and small-footprint design, this
versatile hub offers a perfectly portable solution for connecting devices that
require traditional USB Type-A ports to your USB-C or Thunderbolt 3 equipped
computer.
Merge two vital port types into one stylish
hub
If your USB-C equipped laptop or MacBook is missing the ports you need, this
hub can help. The versatile USB 3.0 hub gives you access to not only your USB
peripheral devices but also a wired internet connection. It offers a Gigabit
Ethernet port, so you can connect to a network in locations where Wi-Fi is
unreliable or unavailable.
Connect your USB devices in seconds
This USB hub is multi-platform compatible, which means it will work with a
wide range of USB-C laptops that use a USB-C power adapter. It also works with a
range of operating systems such as Windows, macOS, Linux and Chrome OS. It
automatically installs once you connect it to your laptop, so you can be up and
running in seconds.
Carry fewer cables and power adapters
This USB-C 3.0 hub supports USB Power Delivery 2.0, so instead of carrying
multiple cables and power adapters, you can use your laptops USB-C power adapter
to power both your laptop and the hub. By using just a single power adapter
instead of two, you can eliminate clutter and hassle when you
work.
Take it with you wherever you go
With its compact and rugged design, you can take this portable USB 3.0 hub
anywhere you go. Because its so compact, its easy to tuck into your laptop bag
and only takes up a small amount of desk space when you connect it to your
workstation. For portable applications, having the integrated host (USB-C) cable
means one less thing to remember to carry with you.
The HB30C3AGEPD is backed by a StarTech.com 2-year warranty and free lifetime
technical support.
Specifications
|
Warranty
Information |
Warranty |
2
Years |
|
Auto-Negotiation |
Yes |
|
Connector(s) |
1
- Connector Type(s) |
USB-C
(24 pin) USB Power Delivery only |
|
3
- Connector Type(s) |
USB
Type-A (9 pin) USB 3.0 (5 Gbps) |
|
1
- Connector Type(s) |
RJ-45 |
|
|
USB
Type-C (24 pin) USB 3.0 (5Gbps) |
|
Environmental |
Operating
Temperature |
0C
to 45C (32F to 113F) |
|
Storage
Temperature |
-10C
to 70C (14F to 158F) |
|
Humidity |
10~90%
RH (Non-condensing) |
|
Hardware |
USB-C
Device Port(s) |
USB
Power Delivery |
|
USB-C
Host Connection |
Yes |
|
Fast-Charge
Port(s) |
No |
|
Ports |
3 |
|
Interface |
USB
3.0 |
|
Bus
Type |
USB
3.0 |
|
Interface |
RJ45
(Gigabit Ethernet) |
|
Industry
Standards |
IEEE
802.3, IEEE 802.3u, IEEE 802.3ab |
|
|
USB
3.0 - Backward compatible with USB 2.0 and 1.1 |
|
|
IEEE
802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN
Tagging, 802.1p Layer 2 Priority Encoding |
|
Chipset
ID |
VIA/VLI
- VL100 |
|
VIA/VLI
- VL813 |
|
Realtek
- RTL8153 |
|
Packaging
Information |
Shipping
(Package) Weight |
4.1
oz [115 g] |
|
Package
Length |
1.2
in [30 mm] |
|
Package
Width |
6.7
in [17 cm] |
|
Package
Height |
5.6
in [14.2 cm] |
|
Performance |
Maximum
Data Transfer Rate |
5
Gbps (USB 3.0) |
|
2
Gbps (Ethernet; Full-Duplex) |
|
Type
and Rate |
USB
3.0 - 5 Gbit/s |
|
UASP
Support |
Yes |
|
Flow
Control |
Full
duplex flow control |
|
Compatible
Networks |
10/100/1000
Mbps |
|
Auto
MDIX |
Yes |
|
Full
Duplex Support |
Yes |
|
Jumbo
Frame Support |
9K
max. |
|
Physical
Characteristics |
Form
Factor |
Compact |
|
Color |
Black |
|
Material |
Plastic |
|
Cable
Length |
5.9
in [15 cm] |
|
Product
Length |
3.7
in [95 mm] |
|
Product
Width |
1.6
in [41 mm] |
|
Product
Height |
0.7
in [17 mm] |
|
Weight
of Product |
1.6
oz [44.9 g] |
|
Power |
Power
Source |
USB-Powered |
|
Power
Delivery |
60W |
|
Software |
OS
Compatibility |
Windows
XP, Vista, 7, 8, 8.1, 10 |
|
Windows
Server 2003, 2008 R2, 2012, 2016, 2019 |
|
macOS
10.7 to 10.15, 11.0 VLAN tagging is currently not supported in
macOS |
|
Linux
Kernel 2.6.25 to 4.11.x LTS Versions
only |
|
Special
Notes / Requirements |
System
and Cable Requirements |
Available
USB Type-C port - USB 3.0 (5Gbps) (to ensure the hub powers and charges
your laptop, your host laptop's USB-C port must support USB Power Delivery
2.0) |
|
|
Optional:
USB-C power adapter (for example, your laptops USB-C based power
adapter) |
|
Note |
The
hub's USB-C port is for USB Power Delivery only. It does not support
DisplayPort alt mode, or data transfers. |
|
|
Not
all USB-C ports support the full functionality of the USB Type-C standard.
Ensure that your host laptop's USB-C port supports USB Power Delivery
2.0 |
|
|
The
hub can connect to a host laptops USB-C port that doesnt support USB Power
Delivery 2.0. However, in this configuration if a power adapter is
connected to the hub, it will not pass power through to your host
laptop. |
|
|
USB
3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers
speeds up to 5Gbps. |
|
What's
in the Box |
1
- Included in Package |
USB
hub |
|
|
quick-start
guide |
