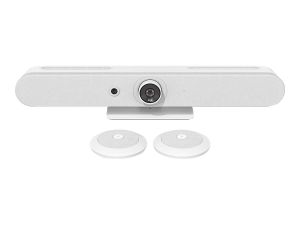

Logitech Rally Bar Mini - White
Overview
SIMPLE TO USE
Start your meeting with just one touch, seamlessly connecting Rally Bar Mini
to your preconfigured room solution.
LOOKS TRUE-TO-LIFE
Upgrade your meeting experience with razor-sharp video, outstanding color,
and full room coverage.
STAYS FOCUSED
Using AI, human perception, and motorized pan and tilt, Rally Bar Mini adapts
to meeting dynamics and keeps the camera on the action.
SOUNDS AWESOME
Rally Bar Minis advanced audio engineering delivers rich, natural sound and
makes sure every voice is clearly heard.
EXPAND THE CONVERSATION
Easily accommodate any small room or huddle space, starting with a 4.6 m mic
pickup range (varies by environment) and the option to add up to 2 Rally mic
pods.
SUPER SMART
Keep the focus on meeting participants with AI Viewfinder, which uses scene
awareness to optimize RightSight auto-framing and camera control.
SIMPLE TO MANAGE
Monitor and manage your meeting room devices from one single platform with
Logitech Sync. Plus, get business insights into how your rooms are being
used.
DEVICE MANAGEMENT TECHNOLOGY PARTNERS
Our integration with partner solutions and dashboards means you can easily
manage your devices in other platforms.
YOUR SUSTAINABILITY ALLY
Our commitment to creating a more sustainable world starts with our 1.5C
Climate Pledge, 100% renewable electricity goal, and a portfolio of video
collaboration solutions that help reduce your carbon footprint.
WELCOME TO THE FAMILY
Explore Logitechs beautifully simple, next generation of small, medium, and
large room solutions that can be deployed in PC or appliance mode.
Specifications
|
DIMENSIONS |
Height: 91.4
mm |
|
Width: 719
mm |
|
Depth: 101
mm |
|
Lens Depth: 18.5
mm |
|
Weight: 4.03
kgs |
|
Certifications &
Compatibility |
Certifications: Zoom
Certified, Certified for Microsoft Teams as a USB device. Contact the
manufacturer for additional information on pending and granted
certifications. |
|
Compatibility: Plug and
play USB connectivity with virtually any video conferencing
application |
|
Appliance mode:
Supports compatible video conferencing software in appliance mode (no PC
required), including Zoom Rooms Appliances |
|
Certification pending
for Microsoft Teams Rooms on Android and additional video conferencing
platforms. |
|
GENERAL
SPECIFICATIONS |
Built-in Components: 6
beamforming microphones, PTZ camera, 3 speakers, AI Viewfinder, cable
management & retention system, table stand, Logitech CollabOS
platform |
|
Enclosure: All-in-one
enclosure with integrated table stand and patented speaker suspension
system to eliminate vibration-induced camera shake and audio
interference |
|
Device Management:
Logitech Sync |
|
Displays Supported:
2 |
|
Display Resolution:
1080p |
|
Network Protocol
Support: IPv4, IPv6 |
|
Proxy Support: IP based
Proxy, FQDN based Proxy, Proxy using PAC file |
|
Camera |
Resolution: 4K, 1440p,
1080p, 900p, 720p, and SD at 30fps |
|
Pan: Motorized
25 |
|
Tilt: Motorized
15 |
|
Zoom: 4X HD digital
zoom |
|
Diagonal Field of View:
120 |
|
Horizontal Field of
View: 113 |
|
Vertical Field of View:
80.7 |
|
Total Room Coverage
(field of view + pan and tilt): 163 horizontal x 110
vertical |
|
Woofer
Speaker |
Driver: 70
mm |
|
Sensitivity: 92 dB SPL
@1W, 99dB SPL @8.0W, both +/-2dB at meter |
|
Rated Power:
8W |
|
THD: 1kHz <2% at
1W |
|
Speaker Sampling Rate:
48KHz |
|
Impedance: 4
Ohms |
|
Midrange
Speakers |
Drivers: 2 x 43
mm |
|
Sensitivity: 84 dB SPL
@ 1W/1M |
|
Rated Power:
4W |
|
THD: 1kHz <2% at
1W |
|
Speaker Sampling Rate:
48KHz |
|
Impedance: 4
Ohms |
|
Microphones |
Frequency response:
90Hz 16kHz |
|
Sensitivity:
>-36dBFS +/-1 dB @ 1Pa |
|
Microphone data rate
output: 48 kHz |
|
Pickup Range: 4.5
m |
|
Beamforming Elements:
Six omnidirectional digital MEMS microphones forming five adaptive
acoustic broadside beams |
|
Audio processing: AEC
(Acoustic Echo Cancellation), VAD (Voice Activity
Detector) |
|
Noise suppression: AI
based de-noising algorithm |
|
Add-on Mics: Supports
up to 2 additional Rally Mic Pods |
|
RightSense
Technologies |
RightLight: Renders
natural skin tones for each participant |
|
RightSight: Maintains
persistent room awareness and detects human figures to auto-frame
participants |
|
RightSound:
Distinguishes speech from other sounds to auto-level voices while
suppressing background noise and echo |
|
Interfaces |
HDMI Out:
2 |
|
HDMI In:
1 |
|
USB: 3x Type A, 1x Type
C |
|
Network: 10/100/1G
Ethernet |
|
WiFi:
802.11a/b/g/n/ac |
|
External Mic Input: Yes
(proprietary input supports optional Rally Mic Pod, Rally Mic Pod Hub, and
Rally Mic Pod Extension Cable) |
|
Remote Control:
Bluetooth Low Energy |
|
Power &
Cables |
Power supply:
Auto-sensing |
|
Operating
Voltage/Power: 100-240V, 19V, 4.74A |
|
Power Supply
Dimensions: 127 mm x 51 mm x 30 mm |
|
DC Cable: 1.5
m |
|
AC Cable: 1
m |
|
HDMI 1.4 Cable: 2
m |
|
USB A to USB C 3.0
Cable: 2.2 m |
|
Environmental |
Operating Temperature:
0 to 40C |
|
Storage Temperature:
-40 to 70C |
|
Humidity: 10 to
95% |
|
BTU/hr: 57 idle, 64 in
meeting |
|
Security |
Full Disk Encryption:
AES-128 |
|
Data Encryption:
Symmetric Keys, PKI |
|
Device Identity:
Protected by device attestation |
|
Device Access:
Authenticated using API |
|
Key Protection: Arm
TrustZone, RPMP |
|
PACKAGE
CONTENTS |
Rally Bar
Mini |
|
Power
supply |
|
AC power
cord |
|
HDMI
cable |
|
USB
cable |
|
Remote control Lens
caps for main lens and AI Viewfinder |
|
User
documentation |
