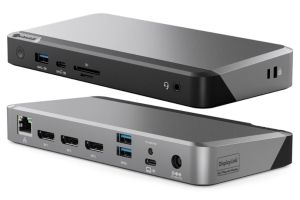

DUPRDX3-WW | Alogic Triple 4K Display Universal Docking Station - DX3

The ALOGIC DX3 Triple 4K Display Universal Docking Station is designed to expand the capabilities of any laptop. Engineered for compatibility across all Windows, MacOS and ChromeOS laptops, the DX3 dock provides access to all of the ports required in a home office, education, or corporate environment.
The dock provides for connection of up to three external monitors, Gigabit Ethernet networking, 3 x USB-A 3.2 (5G), 1 x USB-C 3.2 (10G), 3.5mm Combo Headphone Jack and SD and Micro SD Card Readers.
Equipped with USB Power Delivery technology, the dock can also charge laptops with up to 100W of power.
Feature laden, this dock is a powerhouse companion for any laptop.

Triple Display – Up to 4K
The DX3 dock can connect up to three external displays at 4K resolutions via its triple DisplayPort outputs* for the ultimate in workstation display capabilities.
* The available resolution of the third video output is dependent on the capabilities of the computer used with the docking station. Refer to the resolution support table for details on the output capabilities of computers based on their specifications.

Truly Universal All-in-One Connectivity
The DX3 docking station provides universal compatibility across Windows, Mac and Chromebook computers and laptops. Allowing modern USB-C equipped or older USB-A computers to be connected this dock enables IT professionals and organisations to deploy the DX3 docking station as a single solution across all users. The DX3 dock helps removes clutter and can power hot desking arrangements in any workspace environment.
In addition to supporting up to three external displays, the dock provides connections for all other standard peripherals including:
• 3 x DisplayPort video outputs at up to 4K resolutions*
• 3 x USB-A (5G)
• 1 x USB-C (10G)
• Gigabit Ethernet
• Combo Headphone/Microphone Jack
• SD 4.0 and Micro SD 4.0 Card Reader
The dock also features lock slots for securing it to a desk when used in an office or shared working environment.

100W Laptop Charging / Power Delivery
When connected, the dock can charge laptops with up to 100W of power. This allows for a perfect solution to add multiple displays, USB accessories, Ethernet, headphone/mic and charge your laptop all at the same time.
When connected to a host computer with USB-C ports that support USB Power Delivery, the dock will connect peripherals and charge the laptop over a single USB-C cable. USB-A enabled laptops can be charged from the dock using the ALOGIC DCAP-SPL USB-C Data &Power Splitter (available separately).

PRODUCT SPECIFICATION
Physical Characteristics
Product Dimensions: 190 x 90 x 6.5mm (W x D x H)
Colour: Space Grey and Black
Weight (product): 535g
Materials: ABS

Warranty
2 Years

Output
3 x DisplayPort (DP1.4/DP++)
1 x USB-C 3.1 Gen 2 (10G) BC 1.2 and Apple Charging Support
1 x USB-A 3.1 Gen 1 (5G) BC 1.2 and Apple Charging Support
2 x USB-A 3.1 Gen1 (5G)
1 x 3.5mm TRRS Audio / Microphone Jack
1 x RJ45 Ethernet 1Gbps
1 x SD Card Reader (SD 4.0)
1 x Micro SD Card Reader (SD 4.0)

Input
1 x USB-C Port

Power
135W External Power Adapter (supplied)
Dock can provide up to 100W power to computer

Video Resolution
Up to 3 x 4K UHD 60Hz*
USB-A hosts limited to 2x 4K UHD 60Hz outputs

Audio Support
Analogue audio line/microphone in/out

Package Includes
1 x Dock
1 x USB-C Cable with USB-A Adapter for Connection to Computer
1 x 135W AC Power Adapter
1 x US; 1 x UK; 1 x EU; 1 x AU Power Cord
1 x User Manual

Device Compatibility
Windows, MacOS, ChromeOS Computers

Compliance
FCC, CE, RoHS

PRODUCT FEATURE
1. Supports up to 3x 4K displays
2. Universal support for all USB-C and USB-A laptops
3. Comprehensive support for connecting peripherals:
• 3 x DisplayPort
• 3 x USB-A (5G)
• 1 x USB-C (10G)
• Gigabit Ethernet
• Combo Headphone/Microphone Jack
• SD and Micro SD Card Reader
4. Power Delivery of up to 100W to charge and power connected laptops
5. Gigabit Ethernet port for wired networking in corporate environments
6. Durable and stylish ABS housing
7. Lock slots for securing the device in shared working environments
