SB-WC12TBD | Alogic Smartbox Power Wall 12 Tilt Bay Notebook & Tablet

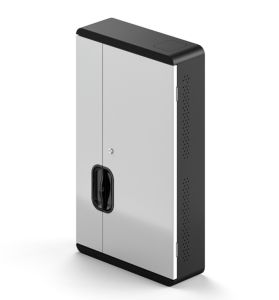

The Smartbox Power Wall 12-Bay Charging Cabinet is a dedicated wall cabinet that securely stores and charges up to 12 devices [sized up to 13�], including tablets, Chromebooks and Notebooks. The lockable cabinet’s slim profile occupies a fraction of the room space of bulkier cabinets, delivering a smarter and better solution.

The Smartbox’s slim design is a space-friendly solution for offices and learning environments with comprehensive IT storage requirements. The cabinet’s 12 tilted bays significantly reduce the depth of space the cabinet consumes. The Smartbox features optional cable management support inside and daisy-chaining connectivity. Its wall-mount configuration conserves space on desks and floors.

The Smartbox Power Wall 12-Bay Charging Cabinet is a charging powerhouse, and safety-minded storage cabinet. Its hybrid steel and plastic construction enhances it durability and minimises installation and mounting effort. The Smartbox features a three-point locking system to secure valuables. Its slim-depth dimensions are important in settings such as primary schools, where bulkier cabinet protrusion becomes a greater safety and storage issue.

PRODUCT SPECIFICATION
Device Capacity
12 Bays

Support Device
Up to 13� screen size

Warranty
2 years

Compliance
North America: FCC Part 15/IEC-003, UL 60950-1 /62368-1, cULus:CSA
Europe: EN55022(EN55032), EN55024, LVD EN60950-1
Australia/N.Z.: AS/NZS CISPR 22, AS/NZS 60950-1

Physical Characteristics
Compartment Dimensions (mm): (H) 240 x (W) 350 x (D) 26
Cabinet Dimensions (mm): (H) 890 x (W) 530 x (D) 180
Packaging Dimensions (mm): (H) 1010 x (W) 665 x (D) 240
Weight: N.W: 17.3kgs  G.W: 22.3kgs

Charging Type
12 Bay AU power strip

Power Specifications
AC200-240V / 10A

PRODUCT FEATURE
- Power over-current protection
- Durable and light weight steel and plastic structure
- 3-point key lock
- Tilt device placement
- Fixed compartments with cable management
- Daisy-Chain design
