All stock codes associated to this product
UH3239AT, UH3239-AT

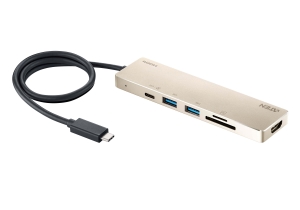

Aten USB-C Multiport Mini Dock with Power Pass-Through
Overview
The UH3239 USB-C Multiport Mini Dock with Power Pass-Through is a portable,
versatile and flexible 6-in-1 adapter for USB-C PCs or laptops. The durable
aluminum enclosure ships with dual USB 3.2 Type-A ports, a USB-C PD port, an
HDMI port along with an SD card and a MicroSD card slots. It covers users'
peripheral connectivity demands while allowing power delivery to the connected
USB-C device. It supports resolutions up to 4K HDMI (3840 x 2160 @ 30Hz) to
ensure that every detail of the video is displayed in the crisp and sharp UHD
resolution on the 4K graphics-supported laptop. Besides, its 2 USB 3.2 Gen 1
Type-A ports guarantee effective communication with peripherals at a decent 5
Gbps transmission speed. Thanks to the USB-C PD port, the UH3239 can provide
power or charge the external devices, and hence, there will be no more tangled
data cables on the desk.
The UH3239 is a plug-and-play device compatible with all major operating
systems (Windows, macOS X and iPadOS). It is a compact, yet competent, data and
power transmission solution for on-the-go professionals when it comes to
building a mobile workstation ecosystem.
- 6-in-1 multi-function dock that includes 1x HDMI, 1x SD / Micro SD card
reader, 1x USB-C PD port and 2x USB 3.2 Gen 1 Type-A ports
- Supports USB PD 2.0 for laptop charging up to 60W via USB-C PD power
adapter power profiles include 5V, 12V, 15V, 20V
- Supports resolutions up to 4K (3840 x 2160 @ 30Hz) for superior video
distribution
- Plug and Play no drivers needed
- Works with all major operating systems: Windows, macOS X and
iPadOS
- Compatible with Thunderbolt 3 (USB-C)
- Apple M1 chip compatible
Diagram
Specifications
|
Computer
Connections |
1 |
|
Cable
Length |
55cm |
|
Connectors |
|
Computer |
USB
3.2 Gen1 Type-C Male Cable |
|
Device |
2
x USB 3.2 Gen 1 Type-A Female (Blue) |
|
Power |
1
x USB Type-C Female ( (supports USB 3.2 Gen1 Type-C Port data transfer)
) |
|
Support
Power Delivery 2.0 for laptop charging up to 60W, power profiles include
5V, 12V, 15V, 20V (additional USB-C power adapter
needed) |
|
Video
Output |
1
x HDMI Female (Black) |
|
Performance |
|
Flash
Memory |
Supports
SD V1.0/ v1.1/ v2.0/ V3.01 and V5.0 |
|
SD
(Capacity up to 2GB) |
|
SDHC
(Capacity up to 32GB) |
|
SDXC
(Capacity up to 2TB) |
|
Video
Resolution |
3840
x 2160@30Hz |
|
Power
Consumption |
DC5V:15WBTU |
|
System
Requirements |
Windows
10 or later, USB-C enabled computer with DP Alt
Mode* |
|
*
With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info
about CPU generation, please nd:
https://www.intel.com/content/www/us/en/processors/processor-numbers.html |
|
Mac
OS X 10.12 or later, USB-C enabled computer |
|
iPadOS
13.1 or later, iPad Pro (USB-C) |
|
Environmental |
|
Operating
Temperature |
0
40C |
|
Storage
Temperature |
-20
60C |
|
Humidity |
0
80% RH, Non-condensing |
|
Physical
Properties |
|
Housing |
Aluminum |
|
Weight |
0.08
kg ( 0.18 lb ) |
|
Dimensions
(L x W x H) |
13.30
x 3.60 x 1.10 cm |
|
(5.24
x 1.42 x 0.43 in.) |
|
Note |
For
some of rack mount products, please note that the standard physical
dimensions of WxDxH are expressed using a LxWxH
format. |
