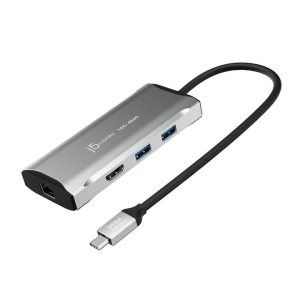

j5Create 4K60 Elite USB-C 10Gbps Travel Dock
Overview
Featuring all the ports you need, the 4K60 Elite USB-C 10Gbps Travel Dock is
equipped with an advanced USB-C E-Mark chip for compatibility with USB4,
Thunderbolt 3, and Thunderbolt 4 hosts and devices.
It supports DisplayPort 1.4 allowing you to add a 4K 60Hz HDMI display and
has a Gigabit Ethernet port for adding a wired network. It includes three USB
SuperSpeed 10 Gbps ports (1 USB-C and 2 USB Type-A) for peripheral connectivity
or downstream charging. The USB-C port also offers up to 100W of power
pass-through when connected to a power adapter.
- Built-in advanced USB-C E-Mark integrates USB4, Thunderbolt 3 and
Thunderbolt 4 compatibility
- Backwards compatible with USB 3.2/3.1
- Features a 4K HDMI output, supporting video resolutions up to 3840 x 2160
at 60 Hz
- Maximize your gaming experience with 1920 x 1080 @ 144 Hz refresh
rate
- Extending one display up to 3840 x 2160 @ 60, easily switch to a higher
refresh rate of 2560 x 1440 @ 120 Hz via HDMI port to enjoy your gaming under
Windows OS
- Three SuperSpeed USB 10Gbps downstream ports (1 USB-C and 2 Type-A) to
connect peripherals
- Charge and power connected laptop and peripherals with 100W Power
Delivery
- Easily add a wired network connectivity with the Gigabit Ethernet
port
- Plug-and-play, no driver installation required
Specifications
|
Hardware |
|
|
Audio
Supported |
Yes |
|
Host
Connector |
1
- USB-C Male |
|
Network
Interface |
RJ45
(Gigabit Ethernet) |
|
Ports |
1
- USB-C SuperSpeed 10Gbps with Power Delivery
3.0 |
|
2
- USB Type-A SuperSpeed 10Gbps |
|
1
- 4K HDMI |
|
1
- RJ45 Gigabit Ethernet |
|
Power
Source |
Bus-powered
or self-powered |
|
Video
Output |
1
- HDMI Female |
|
Warranty |
2
Year Limited |
|
Performance |
|
|
Audio
Channel |
2.1
via HDMI |
|
Compatible
Networks |
10/100/1000
Mbps |
|
Displays
Supported |
1 |
|
Max
Data Transfer Rate |
10Gbps |
|
Max
Display Refresh Rate |
3840
x 2160 @ 60 Hz |
|
2560
x 1440 @ 120 Hz |
|
1920
x 1080 @ 144 Hz |
|
(Windows) |
|
Max
Display Resolution |
3840
x 2160 |
|
Power |
|
|
Input
Current |
Up
to 5A |
|
Input
Voltage |
Up
to 20V |
|
Output
Current |
Up
to 4.5A |
|
Output
Voltage |
Up
to 20V |
|
Power
Consumption |
400
mA |
|
Power
Delivery |
Up
to 100W via USB-C |
|
Physical
Specifications |
|
|
Cable
Length |
5.9
in. (150 mm) |
|
Color |
Space
Grey |
|
Enclosure
Type |
Aluminum |
|
Operating
Humidity |
<
85% non-condensing |
|
Operating
Temperature |
30
to 116F (-1 to 41C) |
|
Product
Depth |
1.85
in. (47 mm) |
|
Product
Height |
0.62
in. (16 mm) |
|
Product
Weight |
3.06
oz (87g) |
|
Product
Width |
4.33
in. (110 mm) |
|
Storage
Humidity |
<
85% non-condensing |
|
Storage
Temperature |
0
to 155F (-17 to 68C) |
|
Package
Contents |
1
- JCD392 4K60 Elite USB-C 10Gbps Travel Dock |
|
1
- Quick Installation Guide
(QIG) |
