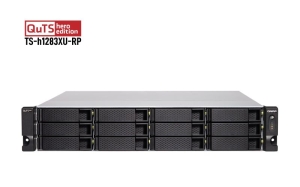

QNAP TS-h1283XU-RP-E2136-32G Powered by QuTS hero - a ZFS-based
operating system with greater reliability and higher performance
Overview
The QuTS hero NAS TS-h1283XU-RP is powered by an Intel Xeon E processor with
up to 128 GB DDR4 Error Correcting Code (ECC) memory to deliver server-grade
performance with dependable reliability. Running the brand new QuTS hero
operating system that incorporates ZFS, the TS-h1283XU-RP supports
near-limitless snapshots, SnapSync, block-level inline data deduplication, and
inline data compression. The TS-h1283XU-RP helps your business achieve reliable
service-level agreement performance, whether in a mission-critical file server,
virtualization server, VDI, collaborative video editing, or efficient file
backup and recovery applications.
- DDR4 ECC memory detects and then corrects single-bit memory errors,
demonstrating high reliability for crucial applications.
- Pre-installed with a dual-port 10GbE RJ45 adapter and a dual-port 10GbE
SFP+ adapter for bandwidth-demanding applications.
- PCIe expandability allows for 10GbE/25GbE/40GbE adapters, QM2 cards, or
Fibre Channel cards to increase application performance.
- SSD cache acceleration improves random read/write performance to meet
IOPS-demanding applications.
- Supports virtualization storage for VMware, Citrix, Microsoft Hyper-V,
Windows Server 2019, and hosts virtual machines and containers.
- QTS App Center includes feature-rich apps for expanding NAS applications
without extra costs.
Specifications
|
CPU |
Intel
Xeon E E-2136 6-core / 12-thread processor |
|
CPU
Architecture |
64-bit
x86 |
|
Floating
Point Unit |
Yes |
|
Encryption
Engine |
Yes (AES-NI) |
|
System
Memory |
32
GB UDIMM DDR4 ECC (2 x 16GB) |
|
Maximum
Memory |
128
GB (4 x 32 GB) |
|
Memory
Slot |
4
x UDIMM DDR4 |
|
Flash
Memory |
5GB
(Dual boot OS protection) |
|
Drive
Bay |
12
x 3.5-inch SATA 6Gb/s, 3Gb/s |
|
Drive
Compatibility |
3.5-inch
SATA hard disk drives |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
|
Hot-swappable |
Yes |
|
SSD
Cache Acceleration Support |
Yes |
|
GPU
pass-through |
Yes |
|
Gigabit
Ethernet Port (RJ45) |
4 |
|
10
Gigabit Ethernet Port |
2
x 10GbE SFP+ SmartNIC port, 2 x 10GBase-T port |
|
Wake
on LAN (WOL) |
Yes |
|
Jumbo
Frame |
Yes |
|
PCIe
Slot |
4 |
|
Slot
1: PCIe Gen 2 x4 (PCH) |
|
Slot
2: PCIe Gen 3 x8 (CPU) |
|
Slot
3: PCIe Gen 3 x4 (CPU) |
|
Slot
4: PCIe Gen 3 x4 (CPU) |
|
Slot
3 and slot 4 are preinstalled with 10GbE network
adapters |
|
USB
3.2 Gen 2 (10Gbps) Port |
2
x Type-C USB 3.2 Gen 2 10Gbps |
|
4
x Type-A USB 3.2 Gen 2 10Gbps |
|
Form
Factor |
2U
Rackmount |
|
LED
Indicators |
HDD
1-12, Status, LAN, storage expansion port
status |
|
Buttons |
Power,
Reset |
|
Dimensions
(HxWxD) |
88.3
482 562 mm |
|
Weight
(Net) |
11.75
kg |
|
Operating
temperature |
0
- 40 C (32F - 104F) |
|
Storage
Temperature |
-20
- 70C (-4F - 158F) |
|
Relative
Humidity |
5-95%
RH non-condensing, wet bulb: 27C (80.6F) |
|
Power
Supply Unit |
500W(x2),
100-240V |
|
Power
Consumption: Operating Mode, Typical |
105.12
W |
|
Tested
with drives fully populated. |
|
Fan |
System
fan: 2 x 60mm, 12VDC |
|
System
Warning |
Buzzer |
|
Max.
Number of Concurrent Connections (CIFS) - with Max.
Memory |
10000 |
