All stock codes associated to this product
TS464URP4G, TS-464U-RP-4G, QN17010, BAQNTS464URP4G, BAQN-TS-464U-RP-4G

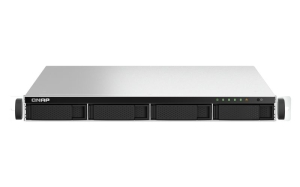

QNAP TS-464U-RP Intel quad-core rackmount NAS with dual-port 2.5GbE
and PCIe expandability for high-speed transmission and virtualization
applications
Overview
Powered by an Intel Celeron N5105/N5095 quad-core processor (burst up to
2.9GHz), the TS-464U-RP features two 2.5GbE RJ45 ports and Port Trunking for up
to 5Gbps combined bandwidth. The built-in 4K HDMI output allows for multimedia
and virtual machine display. With a PCIe Gen 3 slot, the TS-464U-RP provides
flexibility in extending NAS functionality, allowing you to install various
cards: a 10GbE/5GbE network card, QM2 card for M.2 SSD caching, or Edge TPU for
AI image recognition. The TS-464U-RP also supports AES 256-bit encryption to
ensure the confidentiality of sensitive business data without affecting system
performance. The TS-464U-RP also features a redundant power supply to ensure
maximum system uptime.
2.5GbE connectivity
Up to 5 Gbps transfer speeds can be achieved by setting port trunking with
the two built-in 2.5GbE (2.5G/1G/100M) ports.
PCIe expandability
Install a PCIe Gen3 x2 card to expand the core functionality of the
TS-464U-RP, including a Multi-Gig 10GbE/5GbE/2.5GbE network card, a QM2 card, or
a USB 3.2 Gen 2 (10Gbps) card.
Snapshots
Protect your files and data from accidental deletion and malware attacks with
snapshots that fully record the system status and data.
License-free virtualized environment
Host multiple containerized apps to run a wide range of applications and
services.
Drives Auto-Tiering
Qtier auto-tiering technology and SSD caching enable constant storage
optimization.
Flexible expansion
Scale your storage capacity to fit growing data needs by connecting QNAPs
expansion units.
Specifications
|
CPU |
Intel
Celeron N5105/N5095 4-core/4-thread processor, burst up to 2.9
GHz |
|
CPU
Architecture |
64-bit
x86 |
|
Graphic
Processors |
Intel
UHD Graphics |
|
Floating
Point Unit |
Yes |
|
Encryption
Engine |
Yes (AES-NI) |
|
Hardware-accelerated
Transcoding |
Yes |
|
System
Memory |
4
GB SO-DIMM DDR4 (1 x 4 GB) |
|
Maximum
Memory |
16
GB (2 x 8 GB) |
|
Memory
Slot |
2
x SO-DIMM DDR4 |
|
When
installing two memory modules, please ensure that they are the same size
and ideally use the same type of RAM for both memory
slots. |
|
Flash
Memory |
4GB
(Dual boot OS protection) |
|
Drive
Bay |
4
x 3.5-inch SATA 6Gb/s, 3Gb/s |
|
Drive
Compatibility |
3.5-inch
bays: |
|
3.5-inch
SATA hard disk drives |
|
2.5-inch
SATA hard disk drives |
|
2.5-inch
SATA solid state drives |
|
Hot-swappable |
Yes |
|
M.2
Slot |
Optional
via a PCIe adapter |
|
SSD
Cache Acceleration Support |
Yes |
|
2.5
Gigabit Ethernet Port (2.5G/1G/100M) |
2
(also support 10M) |
|
Wake
on LAN (WOL) |
Yes |
|
Jumbo
Frame |
Yes |
|
PCIe
Slot |
1 |
|
Slot
1: PCIe Gen 3 x2 |
|
USB
2.0 port |
2 |
|
USB
3.2 Gen 2 (10Gbps) Port |
2
x Type A USB 3.2 Gen 2 |
|
HDMI
Output |
1,
HDMI 1.4b |
|
Form
Factor |
1U
Rackmount |
|
LED
Indicators |
HDD
1-4, Status, LAN, Expansion, Power |
|
Buttons |
Power,
Reset |
|
Dimensions
(HxWxD) |
43.3
x 482.6 x 508.7 mm |
|
Weight
(Net) |
8.12
kg |
|
Weight
(Gross) |
10.1
kg |
|
Operating
temperature |
0
- 40 C (32F - 104F) |
|
Storage
Temperature |
-20
- 70C (-4F - 158F) |
|
Relative
Humidity |
5-95%
RH non-condensing, wet bulb: 27C (80.6F) |
|
Power
Supply Unit |
250W
(x2), 100-240V |
|
Power
Consumption: HDD Sleep Mode |
37.469
W |
|
Power
Consumption: Operating Mode, Typical |
51.404
W |
|
Tested
with drives fully populated. |
|
Fan |
2
x 40mm, 12VDC |
|
System
Warning |
Buzzer |
|
Max.
Number of Concurrent Connections (CIFS) - with Max.
Memory |
1500 |
