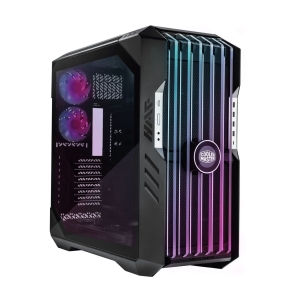

H700E-IGNN-S00 | CoolerMaster HAF 700 EVO Case - NO PSU, Titanium Grey

Model Number

H700E-IGNN-S00

Exterior Color

Titanium Grey

Materials - Exterior

Mesh, Steel, Plastic

Materials - Left Side Panel

Tempered Glass, Steel

Dimensions (L x W x H)

556 x 279 x 540 mm (Body Size), 666 x 291 x 626 mm (incl. Protrusions)

Motherboard Support

Mini ITX, Micro ATX, ATX, E-ATX, SSI CEB, SSI EEB

Expansion Slots

8

5.25" Drive Bays

N/A

2.5" / 3.5" Drive Bays (combo)

12

2.5" Drive Bays

12

I/O Panel - USB Ports

1x USB 3.2 Gen 2 Type C, 4x USB 3.2 Gen 1 (3.0)

I/O Panel - Audio In / Out

1x 3.5mm 4 Poles Audio Jack, 1x 3.5mm Mic Jack

I/O Panel - Other

1x LED Controller A1 (ARGB Gen 2), 1x ARGB/PWM Hub

Pre-installed Fans - Front

2x SickleFlow PWM Performance Ed. 200mm

Pre-installed Fans - Rear

2x SickleFlow PWM ARGB 120mm

Pre-installed Fans - Bottom

1x SickleFlow PWM ARGB 120mm

Fan Support - Top

2x 200mm, 3x 140mm, 6x 120mm (Remove 480mm bracket)

Fan Support - Front

2x 200mm, 3x 120/140mm

Fan Support - Rear

2x 120mm

Fan Support - Bottom

3x 120/140mm

Fan Support - Side

4x 120mm / 3x 140mm

Radiator Support - Top

Up to 2x 360mm / 1x 420mm

Radiator Support - Front

Up to 420/360mm

Radiator Support - Rear

Up to 240mm

Radiator Support - Bottom

Up to 420/360mm

Radiator Support - Side

Up to 480/420mm

Clearance - CPU Cooler

166mm / 6.53 inch

Clearance - PSU

200mm / 7.87 inch

Clearance - GFX

490mm / 19.29 inch

Cable Routing - Behind Motherboard Tray

90-101mm

Additional Included Accessories

Universal Graphics Card Holder Kit V2

Dust Filters

Front, Bottom, Side

Power Supply Support

Bottom Mount, ATX

Warranty

2 years

Note

* For regular 30mm thick radiators, for thicker please reference compatibility sheet

Series

HAF Series

Size

Full Tower
