All stock codes associated to this product
5329096, IW-PLG.4BAYS, IWPLG4BAYS
Inwin IW-PLG High Performance GPU Workstation
Overview
- Compliance for Intel Xeon Scalable / AMD EPYC family
- 9 expansion slots supporting up to 4 x full-height, full-length,
double-width GPU cards
- Screwless adjustable card holder for full-height GPU cards
- High efficiency CRPS modules with PDB (80 Plus Platinum
800W/1200W/1600W/2000W)
- Supports maximum 14 x 2.5" SSD drives
- Supports rack installation by slide rails
- Lockable front and side panel
Multi-GPU Computing Workstation
The InWin IW-PLG Tower is a professional workstation designed for SMB
servers, 3D rendering, virtualization, healthcare data center and AI
applications. Supporting the latest Intel Xeon Scalable & AMD EPYC
processors, the IW-PLG Tower offers high levels of performance, reliability and
availability.
Efficient Thermal Performance
With the 3x 92mm fans that take in cool air from the front, hot air flows out
via 1x120mm fan of the rear case for efficient thermal performance. An
additional, optional fan kit on the rear panel adds GPU thermal
support.
Slide Rail Support
Supports rack installation by 28" tool-less & ball-bearing slide
rail.
Specifications
|
Specification |
|
|
Industry
Standard |
EIA-RS310D |
|
M/B
Form Factor |
ATX(12"
x 9.6"), CEB(12" x 10.5"), EEB(12" x 13") |
|
Drive
Bay |
External
2.5"/3.5" hot-swap trays x 12 (pre-installed x 8), 5.25" x
1 |
|
Internal
2.5" x 2 or 3.5" x 1 |
|
Power
Supply |
Supports: |
|
Form
factor: 80 Plus Platinum CRPS with PDB cable
management |
|
Watt:
800W/1200W/1600W/2000W |
|
Indicator |
Power
status, HDD LED, LAN1/LAN2/LAN3/LAN4 LED, ID LED, system fail activity
LED |
|
Front
Control Panel |
Power
switch, ID switch, system reset, NMI, USB 3.0 x
2 |
|
Chassis
Security |
Supports
padlock loop or kensington lock |
|
Backplane |
Mini-SAS
HD (SFF-8643), 12Gbps supported x 3 (pre-installed x
2) |
|
Cooling
Fan |
Middle:
92 x 25mm PWM fan x 3 |
|
Rear:
120 x 25mm PWM fan x 1 |
|
Expansion
Slot |
Full-height
PCIe slot x 9 |
|
Material |
Material:
SGCC |
|
Thickness:
1.0mm |
|
Rail
Kit |
Supports
28" tool-less & ball-bearing slide rail |
|
Product
Dimensions (DxWxH; Chassis Only) |
589.7
x 200 x 430mm |
|
(23.22"
x 7.87" x 16.93") |
|

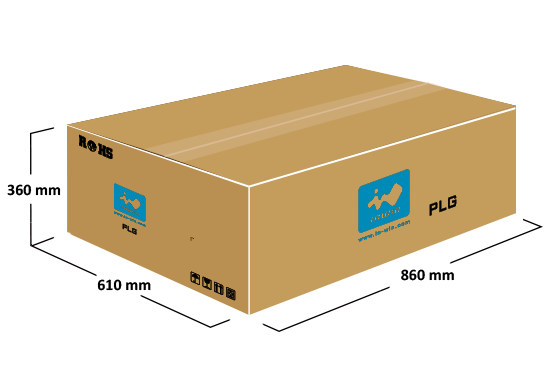

Package
Dimensions (DxWxH) |
860
x 610 x 360mm |
|
Weight
(Chassis Only) |
Net
weight: 16.95kg |
|
Gross
weight: 21.28kg |
|
Cubic
Feet |
6.67 |
|
Container
Information |
Single
packing with pallets: |
|
20':
100pcs |
|
40':
220pcs |
|
40'
HQ: 264pcs |
|
12Gbps
Backplane Specifications |
|
|
Backplane |
Mini-SAS
HD backplane |
|
Dimension
(W x H) |
111.5mm
x 111.5mm |
|
Backplane
Type |
Passive |
|
Host
Interface |
Mini-SAS
HD (SFF-8643) x 1 |
|
HDD
Interface |
SAS/SATA
HDD x 4 |
