j6create Multi-Angle Dual HDMI Docking Stand - Space
Grey
Overview
Equipped with a USB-C Mini Docking Station with Power Delivery (8 Functions
in 1)

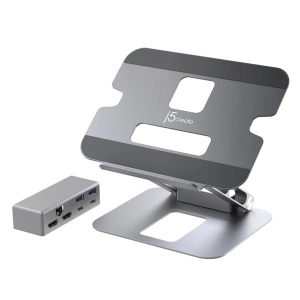

This multi-angle stand is made of durable aluminum and can support a variety
of items in addition to a laptop including tablets, books, etc. Its foldable
design allows for easy storage or transport, while the viewing angles and
heights can be adjusted to fit your needs and optimize your viewing experience.
This versatile stand gives you the ability to create a more efficient workspace,
whether you need extra space or a standing desk setup.
The integrated USB-C mini dock lets you easily create a workstation with one
4K HDMI or Dual 1080p HDMI display outputs, a Gigabit Ethernet port for easy
network access, and two USB 5Gbps Type-A downstream ports, as well as a USB-C
port that supports 5Gbps data transfer rate and up to 100W pass-through,
providing all the connectivity you need for enhanced productivity and to connect
your peripherals.
- Fits most laptops up to 16 in.
- Aluminum construction with a weight capacity of up to 9 lbs. (4
kg)
- Adjustable viewing angles and heights help reduce eye strain and improve
posture
- Nonslip protective pads help prevent slipping and scratches
- Foldable design for easy storage and portability
- Supports 4K HDMI or dual 1080p HDMI display on compatible USB-C laptops
with DisplayPort 1.2 alt mode with MST support*
- Integrated USB-C mini dock offers support for dual HDMI, network access,
and three USB ports
- Easily create a 4K HDMI or dual 1080p HDMI setup with your Thunderbolt 3/4
or USB-C laptop with DP Alt mode
- Two 5Gbps Type-A ports for data transfer and syncing, or charging your
USB devices
- One USB-C port with 5Gbps data transfer and support for 100W power
pass-through
- Reliable network connectivity via the Gigabit Ethernet
port
Specifications
|
Hardware |
|
|
Additional
Storage |
No |
|
Adjustable
Angle |
N/A |
|
Assembly
Required |
No |
|
Audio
Supported |
Yes |
|
Docking
Station Included |
Yes |
|
Host
Connector |
1
- USB-C Female |
|
Maximum
Weight Capacity |
9
lbs. (4 kg) |
|
Network
Interface |
Yes |
|
Number
Of Tiers |
N/A |
|
Ports |
1
- USB-C 5Gbps (Data transfer & Power Delivery
3.0) |
|
2
- USB 5Gbps Type-A |
|
2
- HDMI (4K for Single display, 1080p for Dual
display) |
|
1
- Gigabit Ethernet |
|
Power
Source |
Bus-powered
or self-powered |
|
Video
Output |
2
- HDMI Female |
|
Warranty |
2-Year
Limited |
|
Performance |
|
|
Audio
Channel |
2.1
via HDMI |
|
Displays
Supported |
2 |
|
Max
Display Refresh Rate |
4K
@ 30 Hz |
|
Max
Display Resolution |
3840
x 2160 |
|
Wide
Screen Supported |
Yes |
|
Power |
|
|
Input
Current |
Up
to 5A |
|
Input
Voltage |
Up
to 20V |
|
Output
Current |
Up
to 4.5A |
|
Output
Voltage |
Up
to 20V |
|
Power
Consumption |
900
mA |
|
Power
Delivery |
Up
to 100W |
|
Physical
Specifications |
|
|
Cable
Length |
23.6
in. (60 cm) |
|
Color |
Space
Gray |
|
Enclosure
Type |
Aluminum |
|
Operating
Humidity |
<
85% non-condensing |
|
Operating
Temperature |
30
to 116F (0 to 30C) |
|
Product
Depth |
2.08
in. (53 mm) |
|
Product
Height |
11.4
in. (290 mm) |
|
Product
Weight |
2.89
lbs. (1.31 kg) (including cable) |
|
Product
Width |
8.9
in. (226 mm) |
|
Stand
Material |
Aluminum |
|
Storage
Humidity |
<
85% non-condensing |
|
Storage
Temperature |
0
to 155F (-10 to 65C) |
|
Package
Contents |
1
- JTS427 Multi-Angle Dual HDMI Docking Stand |
|
1
- USB-C 3.2 male to male host cable |
|
1
- Quick Installation Guide
(QIG) |
