All stock codes associated to this product
JTS327, 15AJTS327, 15A-JTS327, 4712795086430

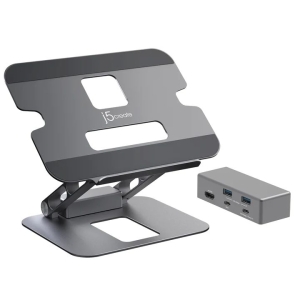

j5create Multi-Angle 4K Docking Stand
Overview
Equipped with a USB-C Mini Docking Station with Power Delivery (6 Functions
in 1)
This multi-angle stand is made of durable aluminum and can support a variety
of items in addition to a laptop including tablets, books, etc. Its foldable
design allows for easy storage or transport, while the viewing angles and
heights can be adjusted to fit your needs and optimize your viewing experience.
This versatile stand gives you the ability to create a more efficient workspace,
whether you need extra space or a standing desk setup.
The integrated USB-C mini dock features a 4K HDMI output, two USB 5Gbps
Type-A ports, as well as a USB-C port that supports 5Gbps data transfer rate and
up to 100W pass-through, providing all the connectivity you need for enhanced
productivity and to connect your peripherals.
- Fits most laptops up to 16 in.
- Aluminum construction with a weight capacity of up to 9 lbs. (4
kg)
- Adjustable viewing angles and heights help reduce eye strain and improve
posture
- Nonslip protective pads help prevent slipping and scratches
- Foldable design for easy storage and portability
- Integrated USB-C mini dock features a 4K HDMI output and three USB
SuperSpeed 5Gbps ports
- Easily connect your Thunderbolt 3/4 or USB-C laptop with DP Alt mode to
a 4K 30Hz display
- 2 x Type-A ports for data transfer and syncing, or charging your USB
devices
- 1 x USB-C port with 5Gbps data transfer and support for 100W power
pass-through
Specifications
|
Hardware |
|
|
|
Additional
Storage |
No |
|
Adjustable
Angle |
Yes |
|
Assembly
Required |
No |
|
Audio
Supported |
Yes |
|
Docking
Station Included |
Yes |
|
Host
Connector |
1
- USB-C Female |
|
Maximum
Weight Capacity |
9
lbs. (4 kg) |
|
|
Network
Interface |
Yes |
|
|
Number
Of Tiers |
N/A |
|
|
Ports |
1
- USB-C 5Gbps (Data transfer & Power Delivery
3.0) |
|
|
2
- USB Type-A 5Gbps |
|
|
1
- 4K HDMI |
|
|
Power
Source |
Bus-powered
or self-powered |
|
|
Video
Output |
1
- HDMI Female |
|
|
Warranty |
2-Year
Limited |
|
|
Performance |
|
|
|
Audio
Channel |
2.1
via HDMI |
|
|
Displays
Supported |
1 |
|
|
Max
Display Refresh Rate |
4K
@ 30 Hz |
|
|
Max
Display Resolution |
3840
x 2160 |
|
|
Wide
Screen Supported |
Yes |
|
|
Power |
|
|
|
Input
Current |
Up
to 5A |
|
|
Input
Voltage |
Up
to 20V |
|
|
Output
Current |
Up
to 4.5A |
|
|
Output
Voltage |
Up
to 20V |
|
|
Power
Consumption |
900
mA |
|
|
Power
Delivery |
Up
to 100W |
|
|
Physical
Specifications |
|
|
|
Cable
Length |
23.6
in. (60 cm) |
|
|
Color |
Space
Gray |
|
|
Enclosure
Type |
Aluminum |
|
|
Operating
Humidity |
<
85% non-condensing |
|
|
Operating
Temperature |
30
to 116F (0 to 30C) |
|
|
Product
Depth |
2.08
in. (53 mm) |
|
|
Product
Height |
11.4
in. (290 mm) |
|
|
Product
Weight |
2.89
lbs. (1.31 kg) (including cable) |
|
|
Product
Width |
8.9
in. (226 mm) |
|
|
Stand
Material |
Aluminum |
|
|
Storage
Humidity |
<
85% non-condensing |
|
|
Storage
Temperature |
0
to 155F (-10 to 65C) |
|
|
Package
Contents |
1
- JTS327 Multi-Angle 4K Docking Stand |
|
|
1
- USB-C 3.2 male to male host cable |
|
|
1
- Quick Installation Guide (QIG) |
|
