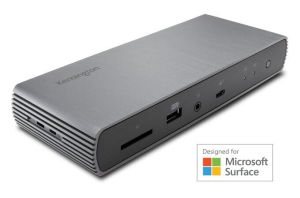

Kensington SD5750T Thunderbolt 4 Dual 4K Dock (DFS)
Overview
Designed exclusively for Surface, the SD5750T Thunderbolt 4 Dual 4K Dock
(DFS) offers premium Thunderbolt benefits now and into the future. Compatible
with USB4/Thunderbolt 4-enabled Surface laptops, supporting USB-C and USB-A
accessories and provides full Power Delivery regardless of how many devices are
connected. Features include 11-ports [4 x Thunderbolt 4, 4 x USB-A (1 x 5V/1.5A
charging port on the front and 3 x Gen2 @ 10Gbps ports on the rear), 1 x Gigabit
Ethernet port, 1 x audio combo jack and 1 x UHS-II SD 4.0 card reader], Single
8K @ 30 Hz or up to Dual 4K @ 60Hz video, 40Gbps data transfer speeds, secure
and manageable Intel VT-d DMA protection, a zero-footprint mounting option,
security cable lock slots, free Kensington DockWorks software and a three-year
warranty.
- Best For: USB4/Thunderbolt 4 Surface devices. Supports Single 8K or Dual
4K video
- Connection Technology: Thunderbolt 4
- Power Delivery: Supports USB-C PD 3.0 (90W of laptop
charging)
- Compatibility: Windows 10
- No. of Monitors Supported: 2
- Video Ports: Thunderbolt 4 ports
- Maximum Resolution Supported: Thunderbolt - Single 8K 30Hz or Dual 4K 60Hz
via the available Thunderbolt 4 ports
- Plug and Play: Plug and play installation, optional Kensington DockWorks
software is recommended for the best connection, performance and security from
your Kensington docking station
- System Requirements: Compatible with USB4/Thunderbolt 4 Surface
devices
- Warranty: 3 Years
Specifications
|
Connection
technology |
Thunderbolt
4 |
|
Driverless |
Yes |
|
Video
ports |
Thunderbolt
4 |
|
Maximum
resolution |
8K |
|
Power
delivery |
90W |
|
Operating
system(s) |
Windows |
|
USB
fast charging |
Yes |
|
Docking
station family |
The
Innovator |
|
DockWorks |
Yes |
|
Best
For |
USB4/Thunderbolt
4 Surface devices, supporting Single 8K or Dual 4K
video. |
|
Certified
For |
Designed
for Microsoft Surface |
|
Compatibility |
Windows
10 or above |
|
Card
Reader |
SD
Card Slot (UHS-II, SD4.0) |
|
USB-A
ports |
4
x (1) USB 2.0 (front) with 5V/1.5A fast-charging & (3) USB 3.2 Gen2
(back) supporting 5V/0.9A |
|
Audio |
1
x 3.5mm Combo Microphone & Headphone Port
(front) |
|
Data
transfer speeds |
Supports
up to 40Gbps data transfer speed |
|
Ethernet
Speed (Mbps) |
1000,
100, 10 |
|
Maximum
resolution supported |
Single
8K 30Hz or Dual 4K 60Hz |
|
Plug
& play |
Plug
& play installation without need for drivers or
downloads |
|
Security
slot compatibility |
Kensington
Security Slot, Kensington Nano Security Slot |
|
System
requirements |
USB4/Thunderbolt
4 Surface devices. |
|
Thunderbolt
Ports |
4
x Thunderbolt 4 Ports (1 x upstream and 3 x
downstream) |
|
USB-C
Power Delivery |
Supports
USB-C PD 3.0 (90W of laptop charging) |
|
Video
output |
Thunderbolt
4 ports |
|
4K
support |
Yes |
|
Device
Compatibility |
Surface
Pro 8, Surface Laptop Studio, Surface Pro 9, Surface Laptop 5 (13.5"),
Surface Laptop 5
(15") |
