All stock codes associated to this product
PS0120AA1PRP, 5507780, 15TAPS0120AA1PRP, 15TA-PS0120AA1PRP, 4062507150943

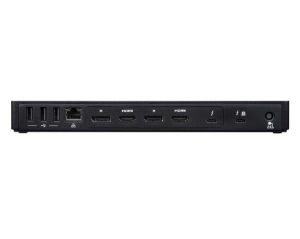

Thunderbolt 4 Dock 0.8M Passive Cable
One cable. A world of possibilities.
Unleash extensive possibilities with Thunderbolt 4 dock - for comprehensive, flexible connectivity for the devices you need most.
Benefit from the combination of a full set of ports and Thunderbolt 4 connectivity, output from up to four 4K displays via 2x HDMI and 2x DisplayPort outputs, transfer at high speeds of up to 40 Gbps (eight times faster than USB 3.0), and turn your desk into the ultimate, clutter-free workstation.
The dock even comes equipped for security with a slim lock slot.
Network &Communication
Ethernet Technology | Gigabit Ethernet |
Power Description
Maximum Power Supply Wattage | 135 W |
Software
Operating System Supported | Windows |
Miscellaneous
Compatibility | A Dynabook Computer with a Thunderbolt 4/USB Type-C Port |
Brand Compatibility | Dynabook |
Kensington Security Slot | Yes |
Interfaces/Ports
Host Interface | USB Type C |
Thunderbolt |
HDMI | Yes |
Number of HDMI Ports | 2 |
Network (RJ-45) | Yes |
DisplayPort | Yes |
Thunderbolt | Yes |
Number of DisplayPorts | 2 |
Headphone/Microphone Combo Port | Yes |
Number of RJ-45 Ports | 1 |
USB Type-C | Yes |
USB Type-C Detail | 1 x 90W PD |
Number of USB Type-C Ports | 2 |
Number of USB Type-A Ports | 4 |
Thunderbolt Ports Quantity | 1 |
USB Type-A | Yes |
Physical Characteristics
Weight (Approximate) | 440 g |
Height | 27 mm |
Width | 84 mm |
Depth | 245 mm |
Product Color | Black |
General Information
Product Type | Docking Station |
Manufacturer Part Number | PS0120AA1PRP |
Manufacturer Website Address | https://us.dynabook.com |
Manufacturer | Dynabook Americas, Inc |
Product Name | Thunderbolt 4 Dock |
Brand Name | Dynabook |
Technical Information
Device Supported | Desktop PC/Notebook/Monitor |
Connectivity Technology | Wired |
Memory Card Supported | SD |
Memory Card Reader | Yes |
Number of Displays Supported | 4 |
Supported Resolutions | 3840 x 2160 |
7680 x 4320 |
Screen Mode Supported | 8K |
4K |
