All stock codes associated to this product
P55240B21, P55240-B21, 5509204, 190017604701

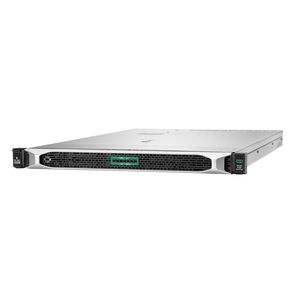

HPE ProLiant DL360 G10 Plus 1U Rack Server - 1 x Intel Xeon Silver 4309Y 2.80 GHz - 32 GB RAM - 12Gb/s SAS Controller - Intel C621A Chip - 2 Processor Support - 2 TB RAM Support - Up to 16 MB Graphic Card - 10 Gigabit Ethernet - 8 x SFF Bay(s) - Hot Swappable Bays - 1 x 800 W - Intel Optane Memory Ready
HPE ProLiant DL360 Gen10 Plus server
Do you need to efficiently expand or refresh your IT infrastructure to propel the business? Adaptable for diverse workloads and environments, the compact 1U HPE ProLiant DL360 Gen10 Plus server delivers enhanced performance with the right balance of expandability and density. Designed for supreme versatility and resiliency while backed by a comprehensive warranty, the HPE ProLiant DL360 Gen10 Plus server is ideal for IT infrastructure, either physical, virtual, or containerized.
The HPE ProLiant DL360 Gen10 Plus server supports the 3rd Generation Intel Xeon Scalable Processors with up to 40 cores, plus 3200 MT/s HPE DDR4 SmartMemory up to 4.0 TB per socket. Introducing PCIe Gen4 and Intel Software Guard Extensions (SGX) support on the dual-socket segment, the HPE ProLiant DL360 Gen10 Plus server complements Gen10 reach by delivering premium compute, memory, I/O, and security capabilities for customers focused on performance at any cost.
Display &Graphics
| Graphics Memory Capacity | 16 MB |
Miscellaneous
| Security Features | - UEFI Secure Boot and Secure Start support
- Immutable Silicon Root of Trust
- FIPS 140-2 validation
- Common Criteria certification
- Configurable for PCI DSS compliance
- Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser
- Support for Commercial National Security Algorithms (CNSA)
- iLO Security Modes
- Granular control over iLO interfaces
- Smart card (PIV/CAC) and Kerberos based 2-factor Authentication
- Tamper-free updates - components digitally signed and verified
- Secure Recovery - recover critical firmware to known good state on detection of compromised FW
- Ability to rollback firmware
- Secure erase of NAND
- TPM (Trusted Platform Module)
- Bezel Locking Kit
- Chassis Intrusion detection option
|
Network &Communication
| Ethernet Technology | 10 Gigabit Ethernet |
Storage
| Total Hard Drive Capacity | No |
Chipset
| Chipset Manufacturer | Intel |
| Chipset Model | C621A |
Controllers
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | MR416i-a |
Power Description
| Plug/Connector Type | C13/C14 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 800 W |
I/O Expansions
| Number of Internal 2.5" Bays | 8 |
| Number of Total Expansion Bays | 8 |
| Number of Total Expansion Slots | 2 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | 2 PCIe: 1 x16 FH, 1 x16 LP |
Operating System
| Operating System | No |
| Operating System Supported | Windows Server 2019 Datacenter |
| Red Hat Enterprise Linux 6.9 |
| Ubuntu 18.04 LTS |
| Hyper-V |
| Oracle Linux |
| Windows Server 2016 Standard |
| Red Hat Enterprise Linux 7.6 |
| Windows Server 2019 Essentials |
| ClearOS 7.6 |
| Ubuntu 16.04.3 |
| Red Hat Enterprise Linux 7.3 |
| Windows Server 2012 R2 Standard |
| Windows Server 2012 R2 Essentials |
| Windows Server 2019 Standard |
| Windows Server 2016 Essential |
| Red Hat Enterprise Linux 8 |
| Windows Server 2012 R2 Datacenter |
| Windows Server 2016 Datacenter |
| SuSE Linux Enterprise Server 15 |
| SUSE Linux Enterprise Server 12 SP3 |
Physical Characteristics
| Weight (Approximate) | 18.11 kg |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 42.9 mm |
| Width | 434.6 mm |
| Depth | 741.9 mm |
Interfaces/Ports
| VGA | Yes |
| Network (RJ-45) | No |
| Remote Management | Yes |
| Total Number of USB Ports | 5 |
| Number of USB 3.0 Ports | 5 |
| Number of VGA Ports | 1 |
| Remote Management Controller | HPE iLO 5 |
Memory
| Maximum Memory Supported | 2 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | DDR4 SDRAM |
| Number of Total Memory Slots | 32 |
| Number of Occupied Memory Slots | 1 |
| Intel Optane Memory Ready | Yes |
General Information
| Product Type | Server |
| Manufacturer Part Number | P55240-B21 |
| Manufacturer Website Address | https://www.hpe.com/au/ |
| Manufacturer | Hewlett Packard Enterprise |
| Product Name | ProLiant DL360 Gen10 Plus Server |
| Product Line | ProLiant |
| Product Series | DL360 G10 Plus |
| Brand Name | HPE |
Processor
| Cache | 12 MB |
| Processor Speed | 2.80 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4309Y |
| Processor Core | Octa-core (8 Core) |
| Processor Manufacturer | Intel |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 3rd Gen |
