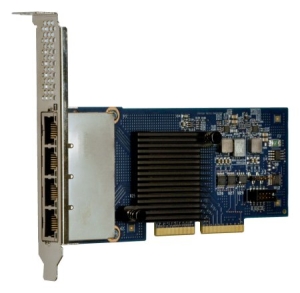

Lenovo 7ZT7A00536 network card Internal Ethernet 1000 Mbit/s

Ports & interfaces
Internal	Yes
PCI version	2.0
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	4
Bandwidth
Maximum data transfer rate	1000 Mbit/s
Network
iSCSI support	Yes
Maximum data transfer rate	1000 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3p, IEEE 802.3q, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Auto MDIX IEEE	Yes
Jumbo frames support	Yes
Flow control support	Yes
Design
Internal	Yes
Product colour	Black, Blue
Component for	Server
System requirements
Compatible operating systems	Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 5 Server Edition Red Hat Enterprise Linux 5 Server with Xen x64 Edition Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server Edition Red Hat Enterprise Linux 6 Server x64 Edition SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for x86 SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T VMware ESXi 5.0 VMware ESXi 5.1 VMware ESXi 5.5 VMware ESXi 6.0 VMware ESXi 6.5
Operational conditions
Operating temperature (T-T)	0 - 55  Â°C
Storage temperature (T-T)	-20 - 65  Â°C
Operating relative humidity (H-H)	5 - 85%
Weight & dimensions
Width	17 mm
Depth	135 mm
Height	69 mm
Packaging data
Quantity	1
Performance
Auto MDIX IEEE	Yes
Receive Side Scaling (RSS)	Yes
Intel Â® Virtualization Technology (Intel Â® VT)	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Technical details
Harmonized System (HS) code	85176990
Other features
Compatible operating systems	Microsoft Windows Server 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Microsoft Windows Server 2016 Red Hat Enterprise Linux 5 Server Edition Red Hat Enterprise Linux 5 Server with Xen x64 Edition Red Hat Enterprise Linux 5 Server x64 Edition Red Hat Enterprise Linux 6 Server Edition Red Hat Enterprise Linux 6 Server x64 Edition SUSE LINUX Enterprise Server 11 for AMD64/EM64T SUSE LINUX Enterprise Server 11 for x86 SUSE LINUX Enterprise Server 11 with Xen for AMD64/EM64T VMware ESXi 5.0 VMware ESXi 5.1 VMware ESXi 5.5 VMware ESXi 6.0 VMware ESXi 6.5
Receive Side Scaling (RSS)	Yes
Intel Â® Virtualization Technology (Intel Â® VT)	Yes
Intel Virtual Machine Device Queues (VMDq)	Yes
Flow control support	Yes
Harmonized System (HS) code	85176990
Packaging content
Quantity	1

---

Intel I350 Gigabit Ethernet adapters from Lenovo build on Intel's history of delivering Ethernet products with flexible design and robust driver support. Available in either 1-port fiber configuration or a 2/4-port copper configuration, these adapters offer excellent price/performance, enhanced power-savings, and market-leading I/O virtualization technologies that includes SRIOV and VMDq. This product guide provides essential presales information to understand the I350 Gigabit Ethernet offerings and their key features, specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about I350 Gigabit Ethernet adapters and consider their use in IT solutions.
