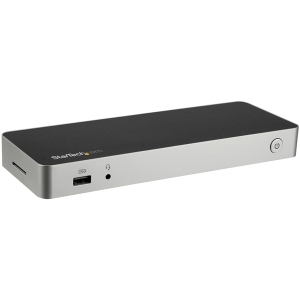

DK30CHDDPPD | StarTech.com USB C Dock - Dual Monitor HDMI & DisplayPort 4K 30Hz

Ports & interfaces
Combo headphone/mic port	Yes
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	4
Connectivity technology	Wired
Host interface	USB 3.2 Gen 1 (3.1 Gen 1) Type-C
Ethernet LAN (RJ-45) ports	1
HDMI ports quantity	1
DisplayPorts quantity	1
Headphone outputs	1
Headphone connectivity	3.5 mm
USB Power Delivery	Yes
USB Power Delivery up to	60 W
Network
Full duplex	Yes
Auto MDI/MDI-X	Yes
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports	1
10G support	No
Performance
UASP support	Yes
Maximum digital resolution	3840 x 2160 pixels
Full duplex	Yes
Auto MDI/MDI-X	Yes
Product colour	Black, Silver
On/off switch	Yes
Card reader integrated	Yes
Compatible memory cards	MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Data transfer rate	5 Gbit/s
Certification	CE, FCC, REACH
Housing material	Plastic
Storage
Card reader integrated	Yes
Compatible memory cards	MMC, MicroSD (TransFlash), MicroSDHC, MicroSDXC, SD, SDHC, SDXC
Power
Compatible power plug types	AU, JP, US
Power source type	DC
Input current	2 A
AC input voltage	100 - 240 V
Power supply type	External
Output voltage	20 V
Output current	5 A
Software
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Mac compatibility	Yes
Other operating systems supported	ChromeOS
Operational conditions
Operating temperature (T-T)	0 - 60  Â°C
Storage temperature (T-T)	-20 - 60  Â°C
Operating relative humidity (H-H)	0 - 95%
Sustainability
Sustainability certificates	RoHS
Weight & dimensions
Width	80 mm
Depth	220 mm
Height	25 mm
Weight	261 g
Package width	155 mm
Package depth	270 mm
Package height	90 mm
Package weight	1.3 kg
Design
Windows operating systems supported	Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64
Mac operating systems supported	Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 13.0 Ventura
Product colour	Black, Silver
Certification	CE, FCC, REACH
Packaging data
Package width	155 mm
Package depth	270 mm
Package height	90 mm
Package weight	1.3 kg
Packaging content
Manual	Yes
Cables included	USB Type-C
Technical details
Sustainability certificates	RoHS
Products per master (outer) case	6 pc(s)
Master (outer) case width	280 mm
Master (outer) case length	335 mm
Master (outer) case height	302 mm
Logistics data
Products per master (outer) case	6 pc(s)
Master (outer) case width	280 mm
Master (outer) case length	335 mm
Master (outer) case height	302 mm
Other features
Power supply type	External
Chipset	DisplayLink - DL-5700, Genesys Logic - GL3215, VIA Labs - VL813, Texas Instruments - TPS65983

---

Add dual monitors (4K HDMI Â® & 4K DP), an SD card reader, multiple USB ports, GbE, and audio to your laptop, plus power and charge your laptopThis dual-monitor USB-C™ dock transforms your MacBook or Windows Â® laptop into a dual Ultra HD 4K workstation, with support for 4K DisplayPort and HDMI monitors. It gives you all the connections to create a fully capable workstation, including an SD™ card reader slot.The USB-C docking station features USB Power Delivery 2.0 (60W), to power and charge your laptop as you work. It’s the perfect companion for your MacBook Pro or other Thunderbolt™ 3 equipped laptop.Create a dual-4K video workstationThe USB-C dock expands the display capabilities of your laptop across two Ultra HD 4K monitors. It enables DisplayLink Â® and USB-C DP Alt Mode to allow dual 4K video output to HDMI and DisplayPort 4K monitors. With the dual-4K dock, you can connect:• 1x 4K DisplayPort display at 3840 x 2160 resolution @ 30Hz• 1x 4K HDMI display at 3840 x 2160 resolution @ 30HzSD card readerThe dock provides direct access to your SD memory cards or microSD™ cards (with adapter). The SD card slot can also be used for additional storage and backup through macOS X Time Machine or Windows 10 File History.Ample connectionsThe dock provides four USB 3.0 (Type-A) ports to connect your peripherals, including a USB 3.0 fast-charge and sync port, a Gigabit Ethernet port, and a combined 3.5 mm audio and microphone port.Universal supportCompatible with Mac and Windows, this universal dock works with USB-C and Thunderbolt 3 enabled laptops.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:•Advanced Windows Layout Utility : To setup and save custom windows layouts.•Mac Address Pass-Through Utility : To improve network security.•USB Event Monitoring Utility : To track and log connected USB devices•Wi-Fi Auto Switch Utility : Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.StarTech.com/Connectivity-ToolsThe DK30CHDDPPD is backed by a StarTech.com 3-year warranty and free lifetime technical support.The StarTech.com Advantage
