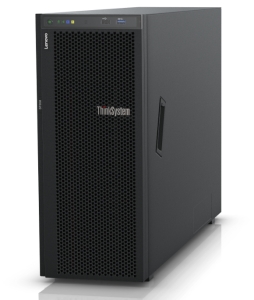

7X10A0AAAU | Lenovo ThinkSystem ST550 server 2.1 GHz 16 GB Rack (4U) Intel

Processor
Processor generation	2nd Generation Intel Â® Xeon Â® Scalable
Thermal Design Power (TDP)	85 W
Tcase	78  Â°C
Supported instruction sets	AVX-512
Scalability	2S
Processor threads	16
Processor package size	76.0 x 56.5 mm
Processor operating modes	64-bit
Processor lithography	14 nm
Processor codename	Cascade Lake
Memory types supported by processor	DDR4-SDRAM
Memory clock speeds supported by processor	2400 MHz
Maximum number of PCI Express lanes	48
Maximum internal memory supported by processor	1024 GB
Execute Disable Bit	Yes
Embedded options available	No
Processor cache	11 MB
Processor frequency	2.1 GHz
Processor family	Intel Xeon Silver
Processor model	4208
Processor cores	8
Number of processors installed	1
Processor boost frequency	3.2 GHz
Processor socket	LGA 3647 (Socket P)
Processor manufacturer	Intel
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory slots	12
Memory layout (slots x size)	1 x 16 GB
Memory clock speed	2933 MHz
Storage
Supported RAID controllers	930-8i 2GB Flash
RAID support	Yes
RAID levels	0,1,5,6,10,50,60
Supported HDD sizes	2.5"
Optical drive type	No
Hot-swap	Yes
Graphics
On-board graphics adapter model	Not available
On-board graphics adapter	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 ports quantity	5
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	2
Expansion slots
PCI Express slots version	3.0
Design
Chassis type	Rack (4U)
Rack mounting	Yes
Optical drive type	No
Product colour	Black
Performance
Performance management	XClarity Enterprise
Compatible operating systems	Microsoft Windows Server 2016 Microsoft Windows Server 2019 Red Hat Enterprise Linux 7.6 Red Hat Enterprise Linux 7.7 Red Hat Enterprise Linux 7.8 Red Hat Enterprise Linux 7.9 Red Hat Enterprise Linux 8.0 Red Hat Enterprise Linux 8.1 Red Hat Enterprise Linux 8.2 SUSE Linux Enterprise Server 12 SP4 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 12 Xen SP4 SUSE Linux Enterprise Server 12 Xen SP5 SUSE Linux Enterprise Server 15 SUSE Linux Enterprise Server 15 SP1 SUSE Linux Enterprise Server 15 SP2 SUSE Linux Enterprise Server 15 Xen SUSE Linux Enterprise Server 15 Xen SP1 SUSE Linux Enterprise Server 15 Xen SP2 VMware ESXi 6.5 U2 VMware ESXi 6.5 U3 VMware ESXi 6.7 U1 VMware ESXi 6.7 U2 VMware ESXi 6.7 U3 VMware ESXi 7.0 VMware ESXi 7.0 U1
Trusted Platform Module (TPM) version	1.2
Trusted Platform Module (TPM)	Yes
Software
Compatible operating systems	Microsoft Windows Server 2016 Microsoft Windows Server 2019 Red Hat Enterprise Linux 7.6 Red Hat Enterprise Linux 7.7 Red Hat Enterprise Linux 7.8 Red Hat Enterprise Linux 7.9 Red Hat Enterprise Linux 8.0 Red Hat Enterprise Linux 8.1 Red Hat Enterprise Linux 8.2 SUSE Linux Enterprise Server 12 SP4 SUSE Linux Enterprise Server 12 SP5 SUSE Linux Enterprise Server 12 Xen SP4 SUSE Linux Enterprise Server 12 Xen SP5 SUSE Linux Enterprise Server 15 SUSE Linux Enterprise Server 15 SP1 SUSE Linux Enterprise Server 15 SP2 SUSE Linux Enterprise Server 15 Xen SUSE Linux Enterprise Server 15 Xen SP1 SUSE Linux Enterprise Server 15 Xen SP2 VMware ESXi 6.5 U2 VMware ESXi 6.5 U3 VMware ESXi 6.7 U1 VMware ESXi 6.7 U2 VMware ESXi 6.7 U3 VMware ESXi 7.0 VMware ESXi 7.0 U1
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel Â® Turbo Boost Technology	2.0
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel Â® Hyper Threading Technology (Intel Â® HT Technology)	Yes
Intel Â® AES New Instructions (Intel Â® AES-NI)	Yes
Intel 64	Yes
Processor ARK ID	193390
Enhanced Intel SpeedStep Technology	Yes
Power
Redundant power supply (RPS) support	Yes
Number of main power supplies	1
Power supply	750 W
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	176 mm
Height	438 mm
Depth	670 mm

---

Workload-optimized support New second-generation Intel Â® Xeon Â® Scalable family CPUs offer increased performance of 36% over the previous generation*, support for faster 2933MHz TruDDR4 memory and Intel’s Vector Neural Network Instruction (VNNI) which accelerates processor performance for the needs of growing higher data transmitting speed and advanced computing performance. Up to 6% increases in per-core performance and hardware security mitigations round out the enhanced capabilities featured in this next-generation processor technology from Intel.* * Based on Intel internal testing, August 2018.
Accelerate data insights ThinkSystem ST550 supports up to two NVIDIA graphic processing unit (GPUs) cards up to 250W. Processing is offloaded to the GPU to maximize computing power and application performance, and the server is optimized to process large blocks of data in parallel. This high-performance parallel computing makes the ST550 ideal for virtualization, VDI, and private cloud.
Flexible storage Lenovo AnyBay design features a choice of drive interface type in the same drive bay: SAS drives, SATA drives, or U.2 NVMe PCIe drives. Freedom to configure some of the bays with PCIe SSDs and still use the remaining bays for capacity SAS drives provides the ability to upgrade to more PCIe SSDs in the future as needed.
