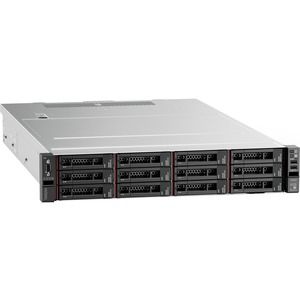

7X04A079AU | Lenovo ThinkSystem SR550 server 2.2 GHz 16 GB Rack (2U) Intel

Processor
Processor generation	2nd Generation Intel Â® Xeon Â® Scalable
Execute Disable Bit	Yes
Embedded options available	Yes
Processor cache	13.75 MB
Processor frequency	2.2 GHz
Processor family	Intel Xeon Silver
Processor model	4210
Number of processors installed	1
Processor boost frequency	3.2 GHz
Processor manufacturer	Intel
Motherboard chipset	Intel C622
Memory
Internal memory	16 GB
Internal memory type	DDR4-SDRAM
Memory slots	6x DIMM
Memory layout (slots x size)	1 x 16 GB
Memory clock speed	2666 MHz
ECC	Yes
Storage
Supported RAID controllers	930-8i 2GB Flash
HDD interface	Serial ATA, Serial Attached SCSI (SAS)
RAID support	Yes
RAID levels	0,1,5,6,10,50,60
Supported HDD sizes	3.5"
Optical drive type	No
Hot-swap	Yes
Graphics
On-board graphics adapter model	Matrox G200
On-board graphics adapter	Yes
Network
Ethernet LAN	Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 ports quantity	1
VGA (D-Sub) ports quantity	1
Ethernet LAN (RJ-45) ports	2
Design
Chassis type	Rack (2U)
Rack mounting	Yes
Optical drive type	No
Product colour	Black, Metallic
Performance
Performance management	XClarity Enterprise
Compatible operating systems	Windows Server 2012 R2, 2016, and 2019; Red Hat Enterprise Linux 6 (x64), 7, and 8; SUSE Linux Enterprise Server 11 (x64), 12, and 15; VMware vSphere (ESXi) 6.0, 6.5, and 6.7
Trusted Platform Module (TPM) version	2.0
Trusted Platform Module (TPM)	Yes
Software
Compatible operating systems	Windows Server 2012 R2, 2016, and 2019; Red Hat Enterprise Linux 6 (x64), 7, and 8; SUSE Linux Enterprise Server 11 (x64), 12, and 15; VMware vSphere (ESXi) 6.0, 6.5, and 6.7
Processor special features
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Virtualization Technology (VT-x)	Yes
Intel TSX-NI	Yes
Intel Trusted Execution Technology	Yes
Intel 64	Yes
Enhanced Intel SpeedStep Technology	Yes
Power
Redundant power supply (RPS) support	Yes
Number of main power supplies	1
Number of redundant power supplies supported	2
Power supply input frequency	50 - 60 Hz
Power supply	750 W
Operational conditions
Storage temperature (T-T)	-40 - 60  Â°C
Storage relative humidity (H-H)	8 - 90%
Technical details
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Sustainability certificates	ENERGY STAR
Weight & dimensions
Width	445 mm
Height	87 mm
Depth	764 mm

---

Affordable, all-purpose rack server for local/remote sites The 2U ThinkSystem SR550 2P rack server is designed for a balance of processing power, storage capacity, and cost. It provides selectable I/O options and tiered systems management.
Cost-efficient performance The ThinkSystem SR550 features a balance of performance, capacity, and value in a 2U form factor. Essential performance components are delivered in a combination that is designed to elevate the cost efficiency of the system, allowing the SR550 to meet both the workload needs and the budgetary needs of the enterprise.
Workload optimized support New second-generation Intel Â® Xeon Â® processor Scalable family CPUs offer increased performance of 36% over the previous generation*, support for faster 2933MHz TruDDR4 memory, and Intel’s Vector Neural Network Instruction (VNNI) which accelerates processor performance on Deep Learning and AI workloads. Up to 6% increases in per-core performance and hardware security mitigations round out the enhanced capabilities featured in this next-generation processor technology from Intel.* * Based on Intel internal testing, August 2018.
Empowering IT management Lenovo XClarity Controller is the embedded management engine in all ThinkSystem servers that is designed to standardize, simplify, and automate foundation server management tasks. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking, which can reduce provisioning time up to 95% versus manual operation. Running XClarity Integrator helps you streamline IT management, speed provisioning, and contain costs by seamlessly integrating XClarity into an existing IT environment.
