All stock codes associated to this product
7X04A07KAU, 5177698
| Processor |
|---|
| Execute Disable Bit | Yes |
| Embedded options available | Yes |
| Processor cache | 13.75 MB |
| Processor frequency | 2.2 GHz |
| Processor family | Intel Xeon Silver |
| Processor model | 4210 |
| Number of processors installed | 1 |
| Processor boost frequency | 3.2 GHz |
| Processor manufacturer | Intel |
| Motherboard chipset | Intel C622 |
| Memory |
|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 12x DIMM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory clock speed | 2666 MHz |
| ECC | Yes |
| Storage |
|---|
| Supported RAID controllers | 530-8i |
| RAID support | Yes |
| RAID levels | 0,1,5,10,50 |
| Optical drive type | No |
| Internal drive bays | 8 |
| Graphics |
|---|
| On-board graphics card model | Matrox G200 |
| On-board graphics card | Yes |
| Network |
|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Design |
|---|
| Chassis type | Rack (2U) |
| Redundant fans support | Yes |
| Rack rails | Yes |
| Rack mounting | Yes |
| Optical drive type | No |
| Product colour | Black, Metallic |
| Performance |
|---|
| Performance management | XClarity Enterprise |
| Compatible operating systems | Windows Server 2012 R2, 2016, and 2019; Red Hat Enterprise Linux 6 (x64), 7, and 8; SUSE Linux Enterprise Server 11 (x64), 12, and 15; VMware vSphere (ESXi) 6.0, 6.5, and 6.7 |
| Trusted Platform Module (TPM) | Yes |
| Software |
|---|
| Compatible operating systems | Windows Server 2012 R2, 2016, and 2019; Red Hat Enterprise Linux 6 (x64), 7, and 8; SUSE Linux Enterprise Server 11 (x64), 12, and 15; VMware vSphere (ESXi) 6.0, 6.5, and 6.7 |
| Processor special features |
|---|
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel TSX-NI | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel 64 | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Power |
|---|
| Redundant power supply (RPS) support | Yes |
| Number of redundant power supplies installed | 1 |
| Power supply input frequency | 50 - 60 Hz |
| Power supply | 750 W |
| Operational conditions |
|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 8 - 90% |
| Storage relative humidity (H-H) | 8 - 90% |
| Operating altitude | 0 - 3050 m |
| Technical details |
|---|
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Weight & dimensions |
|---|
| Width | 445 mm |
| Height | 87 mm |
| Depth | 764 mm |

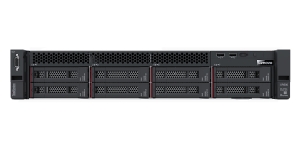

Essential and priced within reach The Lenovo ThinkSystem SR550 dual-socket 2U rack server is ideal for small to large organizations that need performance, storage capacity, flexible I/O, and resiliency. With industry-leading reliability† and customer satisfaction‡, and designed to handle a wide range of workloads, SR550 cost-effectively performs complex analytics on structured and unstructured data, speeds transactional systems, and powers through collaboration workloads with ever-growing data sets and large files shared within an organization.
Flexible to grow with your business SR550 offers numerous features to increase performance and flexibility. It features two Intel ® Xeon ® Scalable family CPUs, with 43 percent more cores, faster memory, increased I/O, and more storage capacity than the previous generation*. SR550 is available with up to 120TB of storage, a 50 percent increase. Software and hardware RAID with simple-swap hard drives make it easy to manage storage needs. SR550 also supports two internal M.2 boot drives, freeing up the other drive bays for additional storage capacity. Front USB 3.0 ports and optional front VGA simplify deployment and servicing. Plus, up to six PCIe adapter slots and several choices of optional 1GbE/10GbE LOM and NICs, 80 PLUS Platinum and Titanium PSUs, and continuous operation at 45 °C, provide additional flexibility and cost savings.
Easily managed Lenovo XClarity Controller is an all-new hardware embedded management engine common in every ThinkSystem server. XClarity Controller features an uncluttered graphical user interface, industry standard Redfish-compliant REST APIs, and enables booting in half the time of prior generation servers, with up to 6x faster firmware updates. Lenovo XClarity Administrator is a virtualized application that centrally manages ThinkSystem servers, storage, and networking. Via reusable patterns and policies, it ramps up and scales infrastructure provisioning and maintenance. It serves as a central integration point to extend your data center management processes to physical IT. Running XClarity Integrators in external IT applications, or integrating through REST APIs, helps you further speed services provisioning, streamline IT management, and contain costs.
