All stock codes associated to this product
R-VERTICAL-GPU-BRACKET-G-1, CAD-VGPU-BRACKET, CADVGPUBRACKET, R-Vertical-GPU-Bracket-G-1, RVerticalGPUBracketG1, 6933412796367
| Features |
|---|
| Rack mounting | Yes |
| Compatible chassis type | Universal |
| Number of graphics cards supported | 1 pc(s) |
| Type | GPU bracket |
| Material | Liquid Crystal Polymer (LCP), Polyamide, Polyvinyl chloride (PVC) |
| Product colour | Black |
| Compatible products | CG540/CG540 Limited/CG560/CG560 Limited/CK500/CK500 WH/CK560/CK560 WH/CH510/CH510 WH |
| PCI Express slots quantity | 1 |
| PCI Express slots version | 4.0 |
| Riser cable included | Yes |
| Weight & dimensions |
|---|
| Cable length | 0.15 m |
| Width | 18 mm |
| Depth | 121 mm |
| Height | 143 mm |
| Weight | 150 g |
| Package width | 47 mm |
| Package depth | 243 mm |
| Package height | 187 mm |
| Technical details |
|---|
| Rack mounting | Yes |
| Compatible chassis type | Universal |
| Number of graphics cards supported | 1 pc(s) |
| Cable length | 0.15 m |
| Type | GPU bracket |
| Material | Liquid Crystal Polymer (LCP), Polyamide, Polyvinyl chloride (PVC) |
| Product colour | Black |
| Compatible products | CG540/CG540 Limited/CG560/CG560 Limited/CK500/CK500 WH/CK560/CK560 WH/CH510/CH510 WH |
| Packaging data |
|---|
| Package width | 47 mm |
| Package depth | 243 mm |
| Package height | 187 mm |

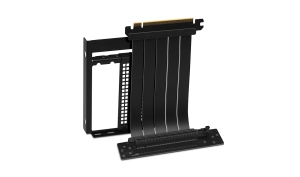

The DeepCool PCIe 4.0 Vertical GPU Bracket is designed to adapt the PCI expansion slots of a computer case into a vertical mount for graphics cards.
ON FULL DISPLAY Showcase your GPU vertically and eliminate any concern of a heavy graphics card potentially damaging your motherboard.
EMI SHIELDING Improve the connection stability across the PCIe cable with EMI shielding that protects against electromagnetic interference for a seamless experience.
FLEXIBLE CABLE The adapter wire is thin and pliable for easy adjustments to fit in your case at any angle.
GOLD-PLATED CONTACTS High quality soldered contacts increase conductivity for better signal integrity while also providing extra durability and longevity.
