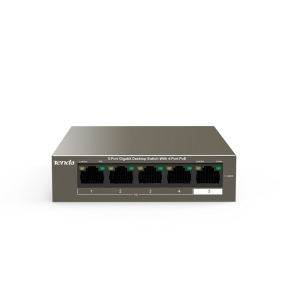

Tenda TEG1105P-4-63W Gigabit Desktop Switch with 4-Port

Standard&Protocol

IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3xIEEE 802.3afIEEE 802.3at

MTBF

100,000hours

Indicator

5*Link/Act per device

4*PoE per device

1*Power per device

Interface

4 10/100/1000Base-T ports(Data/Power)

1 10/100/1000Base-T port(Data)

Lightning Protection

6KV

Store & Forward

Yes

exchange capacity

10 Gbps

Packet Forwarding Rate

7.44Mpps

RAM Data Buffer

1Mb

MAC Address Table

2K

PoE supply management

Port 1 to Port 4 support IEEE802.3at/af PoE standard

PoE through pin

1 2 4 5 +3 6 7 8 -

Input Voltage

AC100-240V 50/60Hz

Dimension

100*100*26mm ( W x D x H )

Power Consumption

in full configuration<63W

PoE Max Power Supply58W

Port Features

Standard: the switch functions as a common unmanaged switch and all the ports of the switch can communicate with each other.

VLAN: In this mode,1-4 ports of the switch cannot communicate with each other, but can communicate with the 5 port .Solid DIP switch to isolate ports to prevent broadcast storm and defend DHCP spoofing

Environment

Operating Temperature: 0~40 (32~104)

Storage Temperature: -40~70 (-40~158)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
