ASUS ROG G16CHR-71470F016W Intel Â® Core™ i7

Processor
Processor generation	Intel Core i7-14xxx
Processor cache type	Smart Cache
Processor family	Intel Â® Core™ i7
Processor manufacturer	Intel
Processor model	i7-14700F
Processor cores	20
Processor boost frequency	5.4 GHz
Processor cache	33 MB
Processor threads	28
Performance cores	8
Efficient cores	12
Performance-core boost frequency	4.6 GHz
Performance-core base frequency	2.1 GHz
Efficient-core boost frequency	3.3 GHz
Efficient-core base frequency	1.5 GHz
Processor base power	65 W
Maximum turbo power	219 W
Efficient-core Max Turbo Frequency	4.2 GHz
Performance-core Max Turbo Frequency	5.3 GHz
Memory
Internal memory	16 GB
Internal memory type	DDR5-SDRAM
Maximum internal memory	64 GB
Memory layout (slots x size)	2 x 8 GB
Memory slots	4x DIMM
Storage
Total storage capacity	1 TB
Optical drive type	No
Storage media	SSD
Number of storage drives installed	1
Number of SSDs installed	1
SSD capacity	1 TB
SSD interface	PCI Express 4.0
SSD form factor	M.2
Total SSDs capacity	1 TB
NVMe	Yes
Graphics
Discrete graphics card	Yes
Graphics card HDMI ports quantity	1
Graphics card DisplayPorts quantity	3
Discrete graphics card memory	8 GB
Discrete graphics card model	NVIDIA GeForce RTX 4060
Discrete graphics memory type	GDDR6
On-board graphics card model	Not available
On-board graphics card	No
Discrete GPU manufacturer	NVIDIA
Optical drive
Optical drive type	No
Network
Ethernet LAN	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Wi-Fi	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Bluetooth	Yes
Bluetooth version	5.2
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Antenna type	2x2
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
Number of SATA III connectors	6
USB 2.0 ports quantity	4
HDMI ports quantity	2
DisplayPorts quantity	1
PS/2 ports quantity	1
Ethernet LAN (RJ-45) ports	1
Line-in	Yes
Line-out	Yes
Microphone in	Yes
DisplayPort version	1.4
Expansion slots
PCI Express x1 slots	1
PCI Express x16 (Gen 4.x) slots	1
Design
Product colour	Grey
Chassis type	Midi Tower
Placement supported	Vertical
Viewing window	Yes
Colour name	Gray
Performance
Market positioning	Gaming
Product type	PC
Motherboard chipset	Intel B760
Audio system	High Definition Audio
Audio output channels	7.1 channels
Software
Operating system installed	Windows 11 Home
Operating system architecture	64-bit
Power
80 PLUS certification	80 PLUS Gold
Power supply	750 W
Sustainability
Sustainability compliance	Yes
Sustainability certificates	RoHS
Weight & dimensions
Width	185 mm
Depth	421 mm
Height	510 mm
Weight	11 kg
Packaging content
Display included	No
Technical details
Sustainability compliance	Yes
Sustainability certificates	RoHS
Other features
Processor manufacturer	Intel
On-board graphics card	No

---

STORM THE BATTLEFIELD.


STRIX STYLING

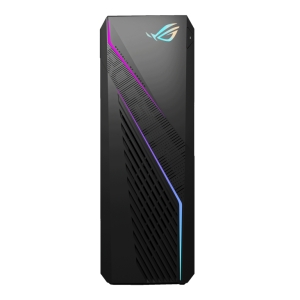

The ROG Strix G16CHR is designed for high performance gameplay, and looking good doing it. With a mesh front panel, a double D-ring handle, headset holder, and subtle RGB lighting accents, the G16CHR is a perfect blend of form and function.


BREATHE EASY
Not only is the mesh front panel great at providing uninterrupted fresh air to your PC components, but it sports the slashes and design language that make ROG unique. RGB lighting channels add a little dash of color on an otherwise clean front facia, letting you customize the G16CHR to suit your taste.


HIDDEN FEATURES
A headset holder is hidden inside the chassis, keeping it close at hand but out of the way when not in use.


HANDLE ANYTHING
When you need to move the Strix G16CHR across the house or to the next LAN event, the double D-ring handle ensures easy carrying.


NEX-GEN POWER
Dominate the battlefield with this high-powered Windows 11 Home gaming monster. Featuring up to an Intel Â® Core™ i7 processor 14700KF and up to an NVIDIA Â® GeForce RTX™ 4080 GPU, you can have the best of high resolution and high refresh rate gaming, even when all the graphics settings are pumped to the max. For the aspiring content creators or artists, up to 64GB of DDR5 RAM ensures that you can keep all of your applications running at once without a hiccup.


AIRFLOW OPTIMIZED
With high-powered components, excellent cooling is a must to ensure your hardware is running as efficiently as possible. Whether you opt for an air or liquid cooling solution, the ROG Strix G16CHR delivers cool and quiet operation during even the most intense gaming sessions.


LIQUID COOLING
The ROG Strix G16CHR also has a liquid cooling variant, harnessing the thermal conductivity to remove waste heat from the CPU incredible efficiently. Water cooling solutions can run their fans more slowly for the same amount of cooling as a traditional air cooler, keeping your machine quieter without sacrificing any performance.


AIR COOLING
Air cooling might not be the flashiest way to cool a CPU, but it certainly is the most reliable. With different air coolers for 65W and 105W TDP processors, the ROG Strix G16CHR channels air from underneath and through the mesh front panel to keep your machine running at peak performance at all times.


LIGHT 'EM UP
Light up your life with Aura Sync. ROG’s RGB control software, Aura Sync allows you to tweak the front panel, interior, and peripheral lighting on your machine. Keep your mouse, keyboard, monitor, and headphones all in perfect harmony with Armoury Crate.


SPLENDID SOUND
Revel in the richness of Dolby Atmos audio support, recreating soundscapes exactly as the artists intended. ROG also supports AI Noise-Cancellation technology, keeping your communications clear no matter what’s going on in the background.

With Dolby Atmos, artists and studios can effectively position each voice, instrument or sound in 3D space. This unlocks new details in music or soundtracks, and delivers them with unparalleled clarity and depth – putting you in the center of a whole new world of audio. With virtual surround sound, your headset becomes a tool to place sound spatially, giving you more awareness and immersion than ever in game.


CUT THE CHATTER
Two Way AI Noise Cancelation processes both incoming and outgoing audio to filter any errant background noises, making sure that your calls, chats and streams come through without distraction. Machine learning algorithms detect and suppress up to 95% of ambient noises, keeping comms clean at all times.


ABUNDANT CONNECTIVITY
Find support for all of your peripherals with the plentiful ports on offer for the G16CHR. Rear I/O includes dual HDMI, DisplayPort 1.4, ethernet, dual USB 3.2 Gen2 Type-A, four USB 2.0 Type-A, three audio ports with support for 7.1 channel surround sound, as well as a PS/2 combo port. The front panel sports dual USB 3.2 Gen1 Type-A as well as dual USB 3.2 Gen1 Type-C, along with microphone in and headphone out ports. Easily create a multimonitor setup and select the peripherals of your choice, because the G16CHR can support it all.

When you want to tweak settings, monitor temperatures, or tinker with your laptop, Armoury Crate is your command center. Real-time monitoring allows you to see what your GPU, CPU and memory are doing. RGB can be adjusted on a game-by-game basis with Aura Sync. Fan and power profiles allow you to change the acoustics, power delivery, and thermal characteristics of the laptop on the fly. And exclusive game deals keep your library topped off at all times.

Customize the RGB lighting on Aura-compatible peripherals to suit your gaming style. Aura Creator’s easy-to-use control panel allows you to alter a brilliant spectrum of lighting effects and colors, in addition to swapping preset lighting modes, you can also activate Aura Sync to match colors and effects across multiple devices.

Armoury Crate comes with a companion Android and iOS app, with complete control over your system settings. Turn your phone into a second screen to seamlessly adjust RGB or fan controls without tabbing out of your game.
