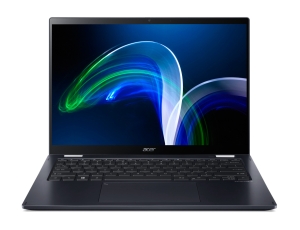

NX.VT2SA.00B-EN0 | Acer TravelMate TMP614RN-52 Intel Â® Core™ i5

Design
Colour name	Galaxy Black
Product type	Hybrid (2-in-1)
Product colour	Black
Form factor	Convertible (Folder)
Market positioning	Business
Display
HD type	WUXGA
Display diagonal	35.6 cm (14")
Display resolution	1920 x 1200 pixels
Touchscreen	Yes
LED backlight	Yes
Panel type	LCD
Native aspect ratio	16:10
Processor
Processor generation	11th gen Intel Â® Core™ i5
Configurable TDP-down	12 W
Processor cache type	Smart Cache
Configurable TDP-down frequency	1.2 GHz
Processor family	Intel Â® Core™ i5
Processor model	i5-1135G7
Processor boost frequency	4.2 GHz
Processor cores	4
Processor cache	8 MB
Processor manufacturer	Intel
Configurable TDP-up frequency	2.8 GHz
Configurable TDP-up	28 W
Memory
Internal memory	16 GB
Internal memory type	LPDDR4x-SDRAM
Storage
Optical drive type	No
Total storage capacity	512 GB
Storage media	SSD
Number of SSDs installed	1
SSD capacity	512 GB
SSD interface	PCI Express
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Total SSDs capacity	512 GB
NVMe	Yes
Graphics
Discrete graphics card	No
On-board graphics card family	Intel Iris Xe Graphics
On-board graphics card model	Intel Iris Xe Graphics
Discrete graphics card model	Not available
On-board graphics card	Yes
Audio
Number of built-in speakers	2
Built-in microphone	Yes
Camera
Front camera	Yes
Front camera resolution	1920 x 1080 pixels
Front camera HD type	Full HD
Infrared (IR) camera	Yes
Optical drive
Optical drive type	No
Network
Mobile network connection	No
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN controller model	Intel Wi-Fi 6 AX201
Bluetooth	Yes
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Ethernet LAN	No
Bluetooth version	5.0
Antenna type	2x2
WLAN controller manufacturer	Intel
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	2
USB Type-C DisplayPort Alternate Mode	Yes
HDMI ports quantity	1
Combo headphone/mic port	Yes
Charging port type	USB Type-C
Keyboard
Pointing device	Touchpad
Numeric keypad	No
Keyboard backlit	Yes
Software
Operating system installed	Windows 10 Pro
Operating system architecture	64-bit
Processor special features
Intel VT-x with Extended Page Tables (EPT)	Yes
Intel Trusted Execution Technology	No
Intel Stable Image Platform Program (SIPP)	No
Intel Software Guard Extensions (Intel SGX)	No
Intel Virtualization Technology for Directed I/O (VT-d)	Yes
Idle States	Yes
Embedded options available	No
CPU configuration (max)	1
Intel Virtualization Technology (VT-x)	Yes
Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery life (max)	18 h
Power
AC adapter power	65 W
AC adapter frequency	50 - 60 Hz
AC adapter input voltage	100 - 240 V
Security
Cable lock slot	Yes
Cable lock slot type	Kensington
Fingerprint reader	Yes
Password protection	Yes
Weight & dimensions
Weight	1.15 kg
Width	312 mm
Depth	226 mm
Height	16.8 mm
Packaging data
Cables included	AC
Packaging content
Cables included	AC
Other features
WLAN controller model	Intel Wi-Fi 6 AX201
On-board graphics card	Yes

---

Whether you're working in the office or at home, the Intel Â® Evo™-based1 TravelMate Spin P6 flexibly adapts to your environment to give you that extra boost to your productivity. Get more done throughout your day with an 11th Gen Intel Â® Core™ i7 processor1, a narrow-bezel 14-inch 16:10 FHD+ display, military-grade durability, an extra-long battery life, and more.


Premium Portable Design
Work the way you want in stand, tent, or tablet mode with 360 degrees of convertibility. The stunning aluminum-magnesium alloy body is just 16.8mm thin and weighs as low as 1.1kg1. The scratch-resistant and narrow-bezel 14" FHD+ IPS display with 100% sRGB coverage gives you vibrant, highly accurate colors and also a 16:10 aspect ratio that approaches the 'golden ratio,' giving you even more screen and an extra boost to productivity.


5G Connectivity Enabled
Technology changes rapidly — and this laptop has incorporated plenty with Sub-6 5G connectivity1, 2. You’ll maintain a consistent, high-speed wireless connection with eSim/uSim-enabled 5G technology. What’s it all mean? Fast speeds, low latency, and the world at your fingertips.


Authentic Writing Experience
Universally compatible with all touchscreen displays3 that support AES protocol, the Acer Active Stylus with Wacom AES 1.0 features 4096 different levels of pressure sensitivity to give you the natural feeling of holding a pen to paper for more precise strokes and movements. When docked, the stylus is quickly charged with just 15 seconds giving 90 minutes of unfettered use.


Tough and Tested
Durable and long-lasting, this laptop is MIL-STD-810H4 certified and stands up to all the rigors of business travel. The spill resistant keyboard and touchpad protects internal components from liquids, while the battery powers you through a day of meetings or offsite work with up to 18 hours8 of use. Fast charge technology also powers your device back up to 80% capacity in just an hour5.*


Industry-grade Security
Ensure secure authentication and safeguard company data with the hardware-level Trusted Platform Module 2.0 and vPro™ remote management technology. The built-in Acer User Sensing technology allows for accurate detection of people based on range and movement, and keeps your data safe by locking the screen when you leave. When you return, quickly log back in with Windows Hello using the IR webcam or the fingerprint reader located on the power button.


Optimized for Conference Calls
This laptop enhances conference calls with its dual upward speakers and a dual microphone array that picks up vocals from up to two meters away. AI-powered noise‑reduction technology also dramatically improves clarity by minimizing background noise for crystal-clear online voice communication, while the MIPI webcam offers brighter and clearer images even in low-light situations. When the webcam is not in use, feel free to close the camera shutter for some extra privacy.


Ports Aplenty
With dual USB 3.2 Gen 2 Type-C™ Thunderbolt™ 4 ports, you get blazingly fast data transfer rates up to 40Gpbs while supporting up to two 4K displays and battery charging. The full range of ports includes MicroSD and an NFC reader to easily share content or make mobile payments6.


Ultimate Performance
No job is too big or complex for the powerful processing power of an 11th Gen Intel Â® Core™ i7 processor1. Accomplish more and multitask with ease with up to 32 GB of rapid LPDDR4x memory and 1 TB of super-responsive M.2 PCIe Gen3 x4 NVMe SSD1.


First-class Features
Experience precise gesture control and swiping with the damage-resistant, ultra-responsive, and enlarged Corning Â® Gorilla Â® Glass Touchpad. The built-in DTS Â® Audio and Smart Amplifier gives you higher-quality, distortion-free sounds and deeper bass while also protecting the speakers from damage as you pump up the volume.
