All stock codes associated to this product
KRYM-USBEXT-4P-I-50M, KRYMUSBEXT4PI50M
Krysma

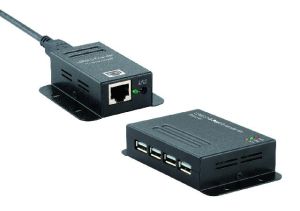

USB 2.0 CAT5/6 4 Port Extender can be used to extend the distance
between a USB peripheral device and host computer by up to 50m.
It
consists of a local unit which connects to the computer and a remote
unit that connects up to 4 devices. Standard, low cost CAT5/5e/6 network
cable (not included) is then used to bridge the connection between the
two units.
The Extender features Power over CAT5/6, this requires a
single power supply to be connected to the Transmitter/Local unit, and
this handy feature allows the Receiver/Remote unit and connected devices
to be located more freely as no power supply is required.
For added convenience both the Transmitter and Receiver units both feature integrated mounting brackets making installation even easier.Extend a USB 2.0 port up to 50m using low cost CAT5/5e/6 network cable (not included)
- USB 2.0 interface, backwards compatible with USB 1.1/1.0
- Supports date transfer rates of 1.5Mb/s, 12Mb/s, 480Mb/s
- Remote unit built in 4 port hub to connect 4 USB 2.0 devices
- Maximum distance between Local and Remote Unit: 50m
- Connection via CAT5 (or higher) cable
- Power over CAT5 requires a single power supply to be connected to the Transmitter only
- Metal Housing and ready for wall mounting
- Plug &ay installation, no drivers required
- Compatible with all OS with USB support
- Temperature Range: 0° – 40° C (operating), -10° – 70°C (storage)
- Humidity: max. 80% (operating), max. 95% (storage)
Transmitter
- Ports: RJ45 Female, 1x USB 2.0 Type B Female, 3.5/1.35mm Outer/Inner DC socket
- Dimensions (WxDxH): 60x67x23mm (includes mounting brackets)
Receiver
- Ports: RJ45 Female, 4x USB 2.0 Type A Female
- Dimensions (WxDxH): 110x64x23mm
Package Contents
- 1x USB 2.0 4 Port CAT5/6 Extender
- 1x 24V DC 0.5A Power Adapter
- 1x USB 2.0 Type A/B Cable (60cm)
- 1x User Manual
