All stock codes associated to this product
KRYM-USBEXT-1P-150M, KRYMUSBEXT1P150M
Krysma

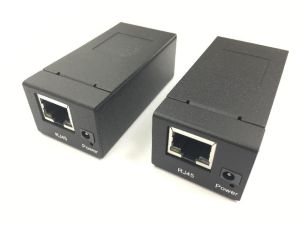

USB 2.0 CAT5/6 Extender can be used to extend the distance between a
USB peripheral device and host computer by up to 150m.
This device is a cost effective and high performance USB 2.0 extender, compliant with USB 2.0 Specifications (up to 480Mbps).
It
consists of a local unit which connects to the computer and a remote
unit that connects up a USB peripheral. Standard, low cost CAT5/5e/6
network cable (not included) is then used to bridge the connection
between the two units.
The transmitter will be powered by USB (5V DC bus powered), while a 5V/2A DC Power Adapter is required for the receiver.This long range USB extender support webcam with resolution up to 1080p.
Specifications:
- USB 2.0 interface, backwards compatible with USB 1.1/1.0
- Maximum distance between Local and Remote Unit: 150m
- Connection via CAT5 (or higher) cable
- Metal Housing
- Plug and Play installation, no drivers required
- Compatible with all OS with USB support
- Temperature Range: 0° – 40° C (operating), -10° – 70°C (storage)
- Humidity: max. 80% (operating), max. 95% (storage)
Transmitter
- Ports: RJ45 Female, 1x USB 2.0 Type B Female, 3.5/1.35mm Outer/Inner DC socket
- Dimensions (WxDxH): 32.2x 25.4×67.3mm
- Weight: 87g
Receiver
- Ports: RJ45 Female, 1x USB 2.0 Type A Female, 3.5/1.35mm Outer/Inner DC socket
- Dimensions (WxDxH): 32.2x 25.4×67.3mm
- Weight: 86g
Package Contents
- 1x USB 2.0 1-port CAT5/6 Extender (150m)
- 1x 5V 2A DC Power Adapter (For Receiver)
- 1x USB 2.0 Type A/B Cable (60cm)
- 1x User Manual
