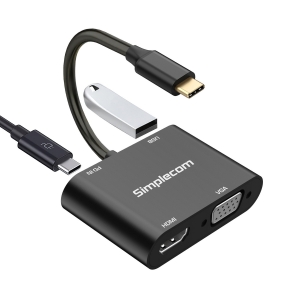

Simplecom DA440 4-in-1 USB-C Multiport Adapter with Power Delivery

Simplecom DA440 4-in-1 USB-C Multiport Adapter with Power Delivery USB 3.0 VGA HDMI

Quick Overview
- 4-in-1 USB-C multiport adapter with HDMI and VGA display outputs
- Connects monitor, USB and PD charger through a single USB-C port
- Up to 4K@30Hz UHD resolution on HDMI connection
- Up to 1080p@60Hz Full HD resolution on VGA connection
- Supports Mirror or Extended display mode
- Supports Power Delivery up to 100W charging via the USB-C port
- USB-A SuperSpeed port supports data transfer rate up to 5Gbps
- Durable and sleek aluminum alloy housing
- Portable and lightweight, easy to carry along when travelling
- Plug and play, no driver or software required

Specifications

- Material: Aluminum Case
- Interface: USB-C Male
- Connection Ports: HDMI, VGA, USB-A (USB 3.0), USB-C PD
- HDMI Version: HDMI 1.4
- HDMI Resolution: up to 4K@30Hz (3840x2160)
- VGA Resolution: up to 1080p@60Hz (1920x1080)
- PD Charging: 1x USB-C Female (for charging only), up to 100W
- USB Port: 1x USB-A (SuperSpeed 5Gbps)
- Operation Temperature: 0 - 50 Â°C
- Cable Length: 10cm
- Dimension: 6.2cm x 4cm x 1.5cm
- Weight: 41g

System Requirements

- Available USB-C port on PC, Mac, Phone or Tablet with DisplayPort Alternate Mode support
- Operating System: Windows 10 or above, macOS 10.12 or above, ChromeOS, Android

Important Note
- Please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
- Please note this adapter supports one extended screen only. HDMI and VGA cannot display different content simultaneously
- The USB-C female port is for PD charging only, not for data transfer
