All stock codes associated to this product
CHT590, HXSICHT590, HXSI-CHT590, 9350414003663

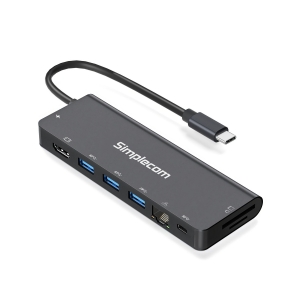

Simplecom CHT590 USB-C SuperSpeed 9-in-1 Multiport Docking Station HDMI 2.0
• 9-in-1 USB-C multiport docking station for comprehensive expansion to your laptop
• Single USB-C to extra USB ports, HDMI 2.0, Gigabit Ethernet, Card Reader and PD
• SuperSpeed USB ports support data transfer rate up to 5Gbps
• HDMI 2.0 port supports up to 4K@60Hz resolution in Mirror or Extended mode
• Gigabit Ethernet support connection speeds of up to 1000Mbps
• 2-Slot Card reader for SD and microSD with SuperSpeed data transfer rate
• USB-C PD port for charging the laptop with up to 100W of power
• Durable & stylish aluminium alloy housing
• Lightweight and portable, easy to carry along when travelling
• Built-in flexible USB-C Cable
• Plug & play, no driver software required
CHT590 is a 9-in-1 USB-C multiport docking station that enhance your laptop's connectivity through its USB-C port. It transforms a single USB-C port into nine ports, including three SuperSpeed USB-A ports, one SuperSpeed USB-C port, dual slot card reader, an HDMI 2.0 port, a Gigabit Ethernet port, and a 100W PD charging port.
If you need to connect various devices to your laptop simultaneously, this docking station is a comprehensive connectivity solution that enhances productivity and convenience.
Specifications
• Host Interface: USB-C
• USB Hub: 3x USB-A Female (SuperSpeed 5Gbps), 1x USB-C Female (SuperSpeed 5Gbps)
• HDMI Resolutions: Support up to 3840 x 2160p at 60Hz (4K@60Hz)
• Network Port: RJ45 Gigabit Ethernet (10/100/1000 Mbps)
• Card Reader: SD and MicroSD (SuperSpeed 5Gbps)
• PD Input: USB-C Female (for charging only), up to 100W
• Operation Temperature: 0 - 45 °C
• Housing Material: Aluminium
• Dimensions: 13 x 4.7 x 1.4 cm
• Cable Length: 19 cm
• Weight: 88g
System Requirements
• USB-C port with DP Alt Mode (DisplayPort Alternate Mode) support
• Thunderbolt USB-C port or USB4 port on laptop
• Operating system: Windows 10 or above, macOS 10.12 or above
• Laptop GPU with DP1.4 supports up to 4K@60Hz, laptop GPU with DP1.2 supports up to 4K@30Hz
Important Note
• Please confirm the USB-C port on your device supports DisplayPort Alternate Mode (DP Alt Mode). Some USB-C ports only work for charging or data transfer, no video output function
• 4K@60Hz is supported by laptop GPU with DP1.4 (e.g. Intel 11th Gen Core Mobile Processors or later)
• The USB-C PD port is for PD charging only, not for data transfer
