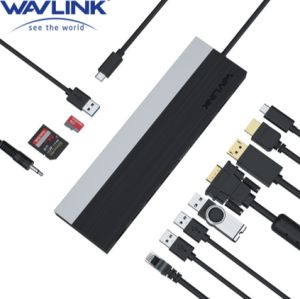

Wavlink WL-UMD01 USB-C 4K @ 60Hz Triple Display Docking Station

IMG 1 of 3
Our Price:
$213.40
or quickly purchase this product
Backorder
Part Number:
552201
(?) Brand:
Wavlink
Manuf No:
WL-UMD01
WLUMD01
Shipping Weight:
0.3 KG (Includes product packaging)
Estimate Shipping
Details Files Images & Video

Enter email address to be notified when this item is available again

All stock codes associated to this product
WL-UMD01, WLUMD01

Wavlink WL-UMD01 USB-C 4K @ 60Hz Triple Display Docking Station

Slim and compact base dock design with high strength cable provides additional durability and good heat dissipation effect. This MST Docking support triple display under USB-C Video Alternate Mode, resolution up to1080p and if the single DP or HDMI display will up to 4K@30.


Besides, it allows you to expand more USB devices, for example external storage, keyboard, mouse, headset, optical drive. Gigabit Ethernet quickly upload and download photos, videos, music and other files. Plug &Play, no need external software driver installation.


Product Features:
1. Compatible with Type-C USB3.1 Gen2 full specification PC Computer.

2. USB-C power portsupport PD3.0 for upstream power charging to PC computer maximum up to 100Watt
3. DisplayPort support V1.2a; HDMI port support HDMI V1.4b
4. Support single display, DP or HDMI up to 3840x2160@30, VGA up to 2048x1152@60
5. Support dual display, up to 2048x1152@60
6. Support triple display, up to 1920x1080@60
7. Build in Gigabit Ethernet network RJ-45 backward 10/100 Ethernet.

8. Build in 4-Pole phone Jack for stereo audio out and microphone in.

9. Build in Combo Card Reader support SD V2.0, SDHC up to 32GB; SDXC up to 2TB.

10. Two USB3.0 ports and two USB2.0 ports for devices connectivity. 11. Support OS Windows 7 / 8 / 10; Max OSX 10.


Working Standard:

1. USB-C: PD Power Adapter I/P
2. Single DisplayPort: 4K/30Hz max.
3. Single HDMI: 4K/30Hz max.
4. Single VGA: 2K/60Hz max.
5. 2 x USB-A Port: 5Gbps
6. 2 x USB-A Port: 480Mbps
7. RJ45: Gigabit Ethernet
8. CardReader: SD / TF
9. Phone Jack: Stereo 4pole TRRS Stere

Specifications:

Operating Temperature :0°C~40°C Reach Design in Storage Temperature :-10-70T 3C

Relative Humidity(Operational) :10%~90%,n

Relative Humidity(Storage) :10%~90%,n

Drop test (1 Meters): 3 st

Cycle work (hours) :24Hou

Note:
For the new version of MAC, VGA can work with HDMI and DP
VGA port may not work properly with old MAC OS

No additional files, specification sheets, guides or documentation found for product.

Warranty: 12 Month Return To Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
