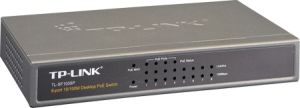

The TL-SF1008P 8-port 10/100M Desktop PoE Switch provides the seamless network connection. It integrates 100Mbps Fast Ethernet and 10Mbps Ethernet network capabilities
4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
TL-SF1008P has the priority * function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 53W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
TL-SF1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-link TL-SF1008P 8-port 10/100M Desktop PoE Switch is a great selection for expanding your home or office network.
Features:
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 53W for all PoE ports
- Supports PoE IEEE802.3af compliant PDs
- Supports IEEE802.3x flow control for Full-duplex Mode and backpressure for Half-duplex Mode
- 1K entry MAC address table of the TL-SF1008P with auto-learning and auto-aging
- LED indicators for monitoring power, link, activity and speed
- External power adapter supply
Specifications:
|
Software Specification
|
|
Standards and Protocols
|
IEEE 802.3, 802.3u, 802.3x, 802.3af
CSMA/CD, TCP/IP
|
|
Basic Function
|
Compatible with IEEE 802.3af compliant PDs
|
|
Port Priority Function
|
|
Wire-speed Performance
|
|
MAC Address Auto-Learning and Auto-aging
|
|
IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode
|
|
Backbound Bandwidth
|
1.6Gbps
|
|
MAC Address Table
|
1k
|
|
Forwarding Rate
|
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
|
|
Transmission Method
|
Store-and-Forward
|
|
Hardware Specification
|
|
Ports
|
8 10/100M Auto-Negotiation RJ45 ports with 4 PoE ports (port-1~port-4), Auto MDI/MDIX
|
|
Network Media
|
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
|
|
LED Indicators
|
Power, Link/Act, 100Mbps, PoE Status, PoE MAX
|
|
Safety & Emission
|
FCC, CE
|
|
Dimensions (W*D*H)
|
6.7*3.9*1.1 in. (171*98*27 mm)
|
|
Environment
|
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
|
|
Power Supply
|
External Power Adapter(Output: 48VDC / 1.25A)
|
|
Consumption
|
5.8 watts (max. no PD connected)
|
|
58 watts (max. with 53w PD conne
|
