All stock codes associated to this product
NTFWU3ES2HD, NT-FWU3ES2HD
Voyager Q
'Quad Interface' FireWire 800 & 400, USB 3.0/2.0, eSATA Drive Dock for 2.5" & 3.5" Serial ATA
The Easiest Way To Access Data From ANY 2.5" or 3.5" Serial ATA (SATA) Drive Up To 3.0TB!
Newest Generation of "Quad Interface" Docking Solutions!
- 2.5" & 3.5" SATA I/II/III drive connector
- Hinged flap for 3.5" drive access
- drive eject lever for safe removal of 3.5" drives
- Status LED:
Blue = Power
Flashing Red = Disk Activity
- Power receptacle
- USB 3.0/2.0/1.1 port
- eSATA port
- Two FireWire 800 (1394b) ports
- FireWire 400 (1394a) port
Description

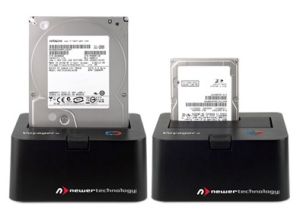

NewerTech Voyager Q
'Quad Interface' FireWire 800 & 400, USB 3.0/2.0, eSATA Drive Dock for 2.5" & 3.5" Serial ATA
Whether you're on a data recovery mission or just want to check the contents of an older swapped out drive, NewerTech Voyager is the easiest, most convenient way to access data from any Serial ATA (SATA) drive.
Just insert any standard 2.5" or 3.5" SATA I/II/III drive with up to 3.0TB capacity into the compact docking base and select one of the four interfaces supported by your Mac or PC for the fastest data transfer performance. Then, start reading and/or writing data to the docked drive. Theres nothing else to install or configure!
Saves Time & Money
With its Plug and Play design, the NewerTech Voyager saves you the time of installing a drive into a computer or the cost of an external enclosure. Now you can think of bare SATA drives with the same convenience and instant access benefits as flash memory cardsbut with huge gains in storage capacity!
Hot-Swap Ready
Have multiple drives you need to access? No problem, NewerTech Voyagers unique design makes hot-swapping SATA drives a breeze*. When finished using your drive, simply pull up on it or use the eject lever for 3.5" drives for quick and effortless removal.
Ideal Solution For Photographers & Videographers
Instead of needing multiple enclosures and power supplies for every archived drive, NewerTech Voyager makes accessing your valuable data a breeze. Just slide in your drive, find the desired image or clip, and then return the drive to your storage safe.
Truly Plug and Play
With all supported interface connector cables included, an auto-switching power supply for worldwide compatibility, and flexible operating system compatibility, the NewerTech Voyager can travel your data universe with ease.
Features
- Supports all all 2.5" and 3.5" SATA I/II/III drives and SSD drives up to 3.0TB
- "Quad Interface" for maximum data transfer rates and system compatibility
- Data transfer rates up to 5.0Gb/s (500MB/s)
- Push button drive eject for safe removal
- Hot-Swap functionality for fast access of multiple SATA drives
- Weighted base and non skid rubber feet for stable operation
- 2-Color Status LED:
Left side Blue = Power
Right side Flashing Red = Disk Activity
- Compact design...measures 5.28" x 3.70" x 2.68" inches
- Whisper Quiet operationno cooling fan needed
- Plug and Play with Macs and PCs
- All interface connection cables included
- RoHS Compliant
- One year warranty
- CE approved
Transfer Rates:
- USB 3.0: up to 5.0Gb/s (500MB/s)
- eSATA: up to 3.0Gb/s (or 300MB/s)
- FireWire 800: up to 800Mbps (100MB/s)
- FireWire 400: up to 400Mbps (50MB/s)
Specifications
Bridge Chipset
Oxford 944SE
Features
2-Color Status LED:
Left side Blue = Power
Right side Flashing Red = Disk Activity
RoHS Compliant
CE approved
Supports
Serial ATA 1.5G/3G/6G (SATA I/II/III) Drives of 2.5" and 3.5" types and up to 3.0TB.
Material
Weighted base and non skid rubber feet for stable operation
Interface/Ports
(1) eSATA port
(2) FireWire 800 (1394b) ports
(1) FireWire 400 (1394a) port
(1) USB 3.0/2.0/1.1 port
Power Supply
External Auto-Switching US/Intl. UL Listed 100-240V AC/ 50-60Hz, 12V/3 Amp Output
Dimensions and Weight
5.28" x 3.70" x 2.68" (W x D x H)
134.11mm x 93.98mm x 68.07mm
1.35 lbs. (.61kg) (without drive)
Warranty
One year warranty Register
Compatibility
Macintosh Requirements:
Macintosh OS 8.6 to 9.2.2, OS X 10.2.x or later, and an available FireWire, USB, or eSATA port.
Windows Requirements:
Windows Vista, XP, 2000, NT, 98, and an available FireWire, USB, or eSATA port.
Linux Requirements:
Linux compatible via supported USB and FireWire interfaces.
