All stock codes associated to this product
TLWN725N, TL-WN725N, NWTLWN725N, NWTL-WN725N, TL-WN725N, II20363, 1992204, 8888660000000, 6935364050719, TPTLWN725N

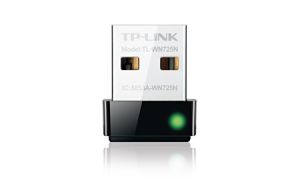

150Mbps Wireless N Nano USB Adapter
TL-WN725N
Highlights:
- Sleek miniature design so small that once plugged in, can be left in a Laptops USB port
- Speedy wireless transmission at up to 150Mbps ideal for video streaming or internet calls
- Advanced Security: Supports 64/128 WEP, WPA, PA2/WPA-PSK/WPA2-PSK(TKIP/AES)
- Connect in no time with easy setup utility in 14 languages
Overview
What This Product Does
TP-LINK's 150Mbps wireless N Nano USB adapter, TL-WN725N allows users to connect a desktop or notebook computer to a wireless network at 150Mbps. This miniature adapter is designed to be as convenient as possible and once connected to a computers USB port, can be left there, whether traveling or at home. It also features advanced wireless encryption and easy installation.

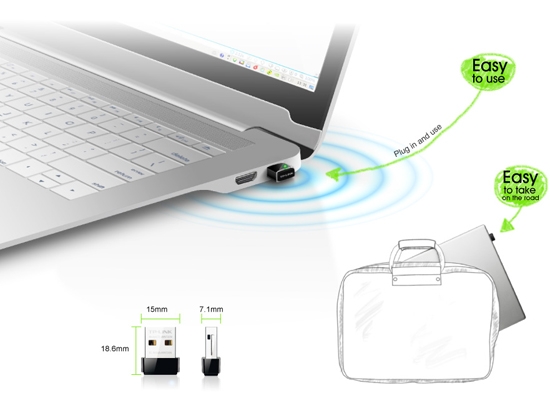

Miniature Design Plug in and forget
With its miniature size and sleek design, users can connect the nano adapter to any USB port and leave it there. Theres no need to worry about blocking adjacent USB interfaces or that the adapter may fall out when moving a connected laptop from A to B, with the tiny device flush against the USB port.
150Mbps Wireless N Speed - Stable Wireless Signals
The TL-WN725N complies with wireless 802.11 b/g/n standards, with transmission data rates of up to 150Mbps enabling fast wireless connections for lag-free online gaming and video streaming.
WPA / WPA2 Encryptions - Advanced Security
When speaking about wireless security, WEP encryptions are no longer the strongest and safest protections against intrusions. The TL-WN725N provides WPA/WPA2 encryptions created by the WI-FI Alliance, promoting interoperability and security for WLAN, which effectively and efficiently protects users wireless networks.
Bundled CD for Easy Operation
The TL-WN725N comes with a 14-language utility located on its bundled CD that helps users complete the software installation and wireless network settings, including security configurations and wireless connections, quickly and easily, even for novice users new to wireless networking.
Features
- Miniature design: 0.73x0.59x0.28in.(18.6x15x7.1mm)
- Wireless N speed up to 150Mbps
- 14-language utility and auto run CD
- Supports WMM (Wi-Fi Multimedia) Standard for better streaming of real-time data such as Video, Music, Video Chat
- Supports software-based WPS
- Supports Soft AP function for Wireless Internet Sharing
- Advanced Security: Supports 64/128 WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES), supports IEEE 802.1X
- Supports Windows XP 32/64bit, Vista 32/64bit, Windows 7 32/64bit, Windows 8 32/64bit
- Supports ad-hoc and infrastructure modes
- Seamlessly compatible with 802.11b/g/n products
Specifications
| HARDWARE FEATURES |
| Interface |
USB 2.0 |
| LED |
Status |
| Dimensions (W X D X H) |
0.73x0.59x0.28in.(18.6x15x7.1mm) |
| Weight |
0.07 ounces / 2.1 grams (Without packaging) |
| Antenna |
Internal antenna |
| WIRELESS FEATURES |
| Wireless Standards |
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency |
2.400-2.4835GHz |
| Signal Rate |
11b: Up to 11Mbps (dynamic)
11g: Up to 54Mbps (dynamic)
11n: Up to 150Mbps (dynamic)
|
| EIRP |
<20dBm |
| Reception Sensitivity |
130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER |
| Wireless Modes |
Ad-Hoc / Infrastructure mode |
| Wireless Security |
Supports 64/128 WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES), supports IEEE 802.1X |
| Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM |
| OTHERS |
| Certification |
CE, FCC, IC, RoHS |
| Package Contents |
150Mbps wireless N Nano USB adapter TL-WN725N
Resource CD
Quick Installation Guide |
| System Requirements |
Windows 8(32/64bits), Windows 7(32/64bits), Windows Vista(32/64bits),
Windows XP(32/64bits) |
| Environment |
Operating Temperature: 0~40 (32~104)
Storage Temperature: -40~70 (-40~158)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing |
