The Cisco 100BASE-X Small Form-factor Pluggable (SFP) is a hot-swappable input/output device that plugs into a Fast Ethernet port or slot, linking the port with the network.
Main features include the following:
Hot-swappable when deployed, the switch or router does not have to reboot.
Supports the "pay-as-you-populate" model.
Interchangeable with other 100BASE-X SFPs on the same line card.
Supports the Cisco quality ID feature that enables the switch or router to identify whether or not the SFP is a Cisco qualified SFP.
Optically interoperable with respective 100BASE-X Ethernet interfaces on the same link.

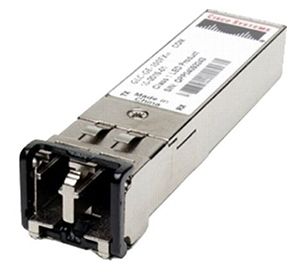

Figure 1. Cisco 100M Ethernet SFP
Cisco 100BASE-FX SFP
The Cisco 100BASE-FX SFP (part numbers GLC-FE-100FX and GLC-FE-100FX-RGD) operates on ordinary multimode fiber-optic (MMF) link spans up to 2 kilometers long.
Cisco 100BASE-LX10 SFP
The Cisco 100BASE-LX10 SFP (part numbers GLC-FE-100LX and GLC-FE-100LX-RGD) operates on ordinary single-mode fiber-optic (SMF) link spans up to 10 kilometers long.
Cisco 100BASE-BX10 SFP
The Cisco 100BASE-BX10 (part numbers GLC-FE-100BX-D and GLC-FE-100BX-U) SFPs operate on ordinary SMF single-strand link spans up to 10 kilometers long.
Cisco 100BASE-EX SFP
The Cisco 100BASE-EX SFP (part number GLC-FE-100EX) operates on ordinary single-mode fiber-optic (SMF) link spans up to 40 kilometers long.
Cisco 100BASE-ZX SFP
The Cisco 100BASE-ZX SFP (part number GLC-FE-100ZX) operates on ordinary single-mode fiber-optic (SMF) link spans up to 80 kilometers long.
Technical Specifications
Platform Support
The Cisco SFPs are supported across a variety of Cisco Systems switches, routers, and optical transport devices. For more details, refer to the document Cisco 100M Ethernet SFP Compatibility Matrix.
Connectors and Cabling
Connectors: Dual LC connector (GLC-FE-100FX, GLC-FE-100FX-RGD, GLC-FE-100LX, GLC-FE-100LX-RGD, GLC-FE-100EX and GLC-FE-100ZX) or single LC connector (GLC-FE-100BX-D and GLC-FE-100BX-U)
Table 1 provides cabling specifications for the SFPs for installation in a Fast Ethernet SFP port. Note that all SFP ports have LC-type connectors, and the minimum cable distance for all SFPs listed (MMF and SMF [G.652] is 2 meters [6.5 feet]).
Table 1. SFP Port Cabling Specifications
SFP
|
Wavelength (nm)
|
Fiber Type
|
Cable Distance
|
GLC-FE-100FX, GLC-FE-100FX-RGD
|
1310
|
MMF
|
2 km (6562 ft)
|
GLC-FE-100LX, GLC-FE-100LX-RGD
|
1310
|
SMF
|
10 km (32,810 ft)
|
GLC-FE-100BX-U
|
1310
|
SMF
|
10 km (32,810 ft)
|
GLC-FE-100BX-D
|
1550
|
SMF
|
10 km (32,810 ft)
|
GLC-FE-100EX
|
1310
|
SMF
|
40 km (131,240 ft)
|
GLC-FE-100ZX
|
1550
|
SMF
|
80 km (262,480 ft)
|
Standards
Compatible with IEEE 802.3ah Draft 3.0
Compatible with standard as specified in IEEE 802.3
Table 2 gives information about fiber loss.
Table 2. Fiber-Loss Budgets
SFP
|
Type
|
Transmit (dBm)
|
Receive (dBm)
|
|
Maximum
|
Minimum
|
Maximum
|
Minimum
|
GLC-FE-100FX, GLC-FE-100FX-RGD
|
100BASE-FX
|
-14
|
-20
|
-14
|
-31
|
GLC-FE-100LX, GLC-FE-100LX-RGD
|
100BASE-LX10
|
-8
|
-15
|
-8
|
-28
|
GLC-FE-100BX-U
|
100BASE-BX10-U
|
-8
|
-14
|
-3
|
-28.2
|
GLC-FE-100BX-D
|
100BASE-BX10-D
|
-8
|
-14
|
-3
|
-28.2
|
GLC-FE-100EX
|
100BASE-EX
|
0
|
-5
|
-8
|
-28
|
GLC-FE-100ZX
|
100BASE-ZX
|
2
|
-3
|
-8
|
-30
|
Dimensions
Dimensions (H x W x D): 8.5 x 13.4 x 56.5 mm
Environmental Conditions and Power Requirements
Operating temperature range:
Commercial temperature range (COM): 0 to 70C (32 to 158F), applicable to GLC-FE-100FX, GLC-FE-100LX, GLC-FE-100BX-D, GLC-FE-100BX-U, GLC-FE-100EX and GLC-FE-100ZX
Industrial temperature range (IND): -40 to 85C (-40 to 185F), applicable to GLC-FE-100FX-RGD and GLC-FE-100LX-RGD
Storage temperature range: -40 to 85C (-40 to 185F)
Table 3. Electrical Power Interface
Parameter
|
Symbol
|
Minimum
|
Typical
|
Maximum
|
Units
|
Supply Current
|
Is
|
-
|
200
|
300
|
mA
|
Surge Current
|
ISurge
|
-
|
-
|
30
|
mA
|
Input Voltage
|
Vcc
|
3.1
|
3.3
|
3.5
|
V
|
Warranty
Standard warranty: 90 days
Extended warranty (option): Available under a Cisco SMARTnet support contract for the Cisco switch or router chassis
Ordering Information
Table 4 gives ordering information for the Cisco SFP.
Table 4. Ordering Cisco SFP
Product Number
|
SFP
|
GLC-FE-100FX
|
100BASE-FX SFP for Fast Ethernet SFP ports
|
GLC-FE-100FX-RGD
|
100BASE-FX Rugged SFP for Fast Ethernet SFP ports
|
GLC-FE-100LX
|
100BASE-LX10 SFP for Fast Ethernet SFP ports
|
GLC-FE-100LX-RGD
|
100BASE-LX10 Rugged SFP for Fast Ethernet SFP ports
|
GLC-FE-100BX-U
|
100BASE-BX10-U SFP for Fast Ethernet SFP ports
|
GLC-FE-100BX-D
|
100BASE-BX10-D SFP for Fast Ethernet SFP ports
|
GLC-FE-100EX
|
100BASE-EX for Fast Ethernet SFP Ports
|
GLC-FE-100ZX
|
100BASE-ZX for Fast Ethernet SFP Ports
|
