All stock codes associated to this product
AESN4DA25
AESN4DA25
2.5" Snap-In Disk Array
Overview

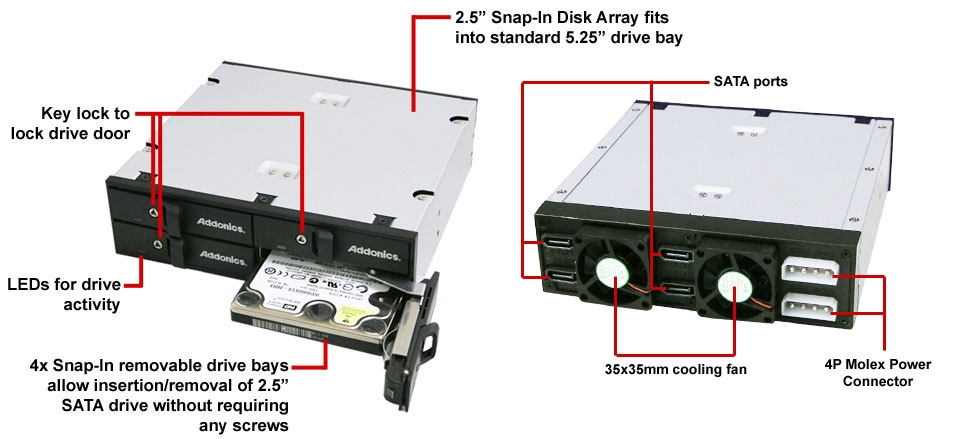

The new Addonics 2.5" Snap-In Disk Array is a high density removable hard drive system that supports installing up to four 2.5" SATA hard drives or SSDs into one standard 5.25"
drive bay. This compact form factor makes this Disk Array an ideal solution for increasing hard drive storage in small computers, mini ATX systems or for applications that require large number of drives.
Installing hard drives into the 2.5" Snap-In Disk Array is similar to using a VHS cassette. Simply unlatch to open the door on each drive slot, slide in the hard drive and close the drive door to engage power and data connection. When the drive door is opened, the hard drive will automatically be ejected out of the drive slot. Designed to accommodates any 2.5" SATA hard drive or SSD with drive height up to 12.7 mm. Eeach drive slot is equipped with its own power and drive access LEDs as well as a lock on the drive door to secure each hard drive in the Disk Array unit.
Model without cooling fan
(consuming less power and suitable for low power storage devices suchas SSD)
Features
- Install as many as four 2.5" SATA hard drives or SSDs into a standard 5 1/4" drive bay
- Support SATA I / II / III or SSD with drive height up to 12.7 mm
- Drive is added and removed directly like VCR cassette without any special tool
- Choice of model
- With two cooling fans - for 2.5" HDD or SSD
- Without cooling fan - for SSD
- Point to point connection
- High throughput up to 600 MB/sec with SATA 3.0 drive
- Sturdy steel metal construction
- Hot swap support when connects to SATA port that supports this feature

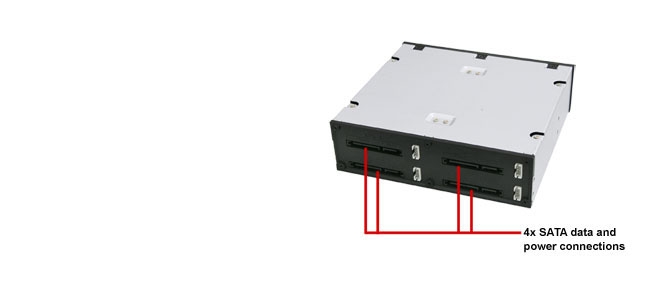

- Four separate 7-pin SATA data connections and four 15-pin SATA power connections
- Power and drive activity LED for each drive slot
- OS independent
Specifications:
|
Interface
|
SATA / /SAS
|
|
Construction material
|
Steel |
|
Hard Drive type
|
2.5" SATA I, SATA II or SATA III HDD/SSD |
|
Maximum Number of Drives
|
4 |
|
Maximum drive height
|
12.7 mm |
|
Cooling fans
|
Two 35 x 35 mm low noise cooling fans - for model AESN4DA25 only
no cooling fan on model AESN4DA25-N
|
|
Maximum Data Transfer Rate
|
6Gbps |
|
Power Connection
|
four 15-pin SATA power connectors |
|
Connections
|
four 7-pin SATA connectors
|
|
LED's
|
Power and drive Activity LEDs for each drive slot
|
|
Lock
|
key lock for each drive slot
|
|
Hard Drive Connection
|
Point to point, no cable required for installing hard drive
|
|
Weight (with no hard drive)
|
~1.46lb (662g)
|
|
Dimensions (L x W x H)
|
5.5 x 5.75 x 1.65 in.(140 x146 x 42 mm) |
|
Operating Temperature and Humidity:
|
5C - 60 C, 10% - 90% RH
|
|
Storage Temperature and Humidity:
|
-20C - 70 C, 5% - 95% RH non condensing
|
|
File Systems
|
File system Independent |
|
Warranty
|
One Year |
