All stock codes associated to this product
SE100S37/400G, 2108933, 740617201994

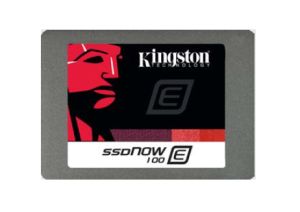

SE100S37/400G
SSDNow E100
Enterprise-class SSD delivers outstanding performance and endurance.
Kingston’s enterprise-class E100 solid-state drive is ideal for mission-critical environments such as data centres, which need to be up and running 24 hours a day, 7 days a week. E100 combines impressive endurance and reliability with power-failure support to ensure uninterrupted operation.
E100 offers 10X endurance over typical client SSDs, with 30K program/erase cycles on E100 vs. 3K program/erase cycles on client SSDs. It features an SF-2500 enterprise-class processor, DuraWrite™ for maximum read/write performance and endurance and RAISE™ for advanced error correction.
E100’s power failure support uses tantalum capacitors so existing writes are committed and/or retired during a power loss to prevent the loss of data. The capacitors can hold a charge at temperatures of up to 85 degrees (other companies use SuperCaps which can hold a charge at temperatures of up to 75 degrees). Additionally, the drive shuts down properly during unexpected power interruptions.
With read/write performance delays often associated with large data sets, E100 helps solve these IO latency bottlenecks in servers. It enables larger enterprise virtualisation projects by increasing the number of virtual systems supported using the existing hardware infrastructure.
E100 is backed by a three-year warranty and legendary Kingston® reliability.
Boost performance, productivity and endurance
Power failure support for data integrity protection on critical server applications
SSDNow E100
Specifications:
FEATURES/BENEFITS
Performance — higher IOPS for multi-user environments
Endurance — Data Integrity Protection featuring DuraClass™ Technology
Dependable — RAISE™ for advanced data reliability
Secure — self-encrypting drive
Durable — DuraWrite optimises writes to extend endurance
Warranty/support — three-year warranty with free technical support
SPECIFICATIONS
Form factor: 2.5"
Interface: SATA Rev. 3.0 (6Gb/s), SATA Rev. 2.0 (3Gb/s), SATA Rev. 1.0 (1.5Gb/s)
Capacities: 100GB, 200GB, 400GB
Sequential reads
SATA Rev. 3.0 — 100GB, 200GB, & 400GB - 535MB/s
SATA Rev. 2.0 — 100GB, 200GB, & 400GB - 270MB/s
Sequential writes
SATA Rev. 3.0 — 100GB, 200GB, & 400GB - 500MB/s
SATA Rev. 2.0 — 100GB & 200GB - 255MB/s 400GB - 260MB/s
Sustained random 4k read/write
100GB – 47,000/81,000 IOPS
200GB – 59,000/72,000 IOPS
400GB – 52,000/37,000 IOPS
Maximum random 4k read/write
100GB – 55,000/83,000 IOPS
200GB – 59,000/73,000 IOPS
400GB – 52,000/37,000 IOPS
Enterprise SMART tools Reliability Tracking, Usage Statistics, Life Remaining, Wear Levelling, Temperature, Drive Life Protection
Power consumption
100GB — 0.5W (TYP) idle / 1.2W (TYP) read / 2.7W (TYP) write
200GB — 0.5W (TYP) idle / 1.2W (TYP) read / 3.1W (TYP) write
400GB — 0.5W (TYP) idle / 1.2W (TYP) read / 5.0W (TYP) write
Dimensions
69.9mm x 100mm x 7mm
Weight
96.6 grams
Storage temperature
-40°C ~ 85°C
Operating temperature
0°C ~ 70°C
TRIM Not supported
MTBF 10,000,000 hrs
Total Bytes Written (TBW)
100GB – 428TB
200GB – 857TB
400GB – 1714TB
