All stock codes associated to this product
WD2003FZEX, HAWD2003FZEX, II17090, WD2003FZEX-00Z4, 718037810553

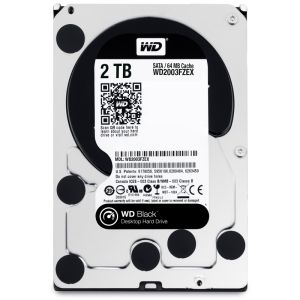

Desktop 3.5-inch Hard Drives
WD Black
Features
Inspiring performance and capacity
For the creators, the gamers and those that demand the best, we delivered the next generation of hard drives to enlarge your PC playground. The latest WD Black desktop hard drives offer enhanced features that maximize system performance, allowing you to spend more time doing what you love most and less time waiting. WD Black is designed to intensify your PC experience with generous capacity and incredible performance, pushing the boundaries of personalization.
For the Gamer…
Smarter than the average drive
Performance and workstation PCs equipped with high-end components often emit vibrations and acoustics that can reduce the precision and performance of your hard drive. Even the best chassis on the market cannot always compensate against this. The new generation of WD Black hard drives feature Vibration Control Technology (VCT) which allows the disks inside the drive to adapt to any mounting problems or vibration conditions that are inside your case, resulting in increased data accuracy, performance and reliability over time. Put simply, this means you can game harder, faster and longer.
For the Enthusiast…
Action meets stable traction
In addition to VCT, WD Black is also equipped with StableTrac Technology, which secures the motor shaft inside the drive at both ends to help reduce additional system-induced vibrations. StableTrac confidently stabilizes the platters inside, resulting in more accurate tracking in a particular sector during read and write operations and delivers increased performance. (2 TB models and above)
For the Creative Pro…
High resolution for a high definition world
Underlying its athletic stance of performance and capacity, WD Black features a new High Resolution Controller (HRC) with an improved architectural design, resulting in increased data precision across the hard drive. This translates to superior responsiveness evolving your high definition world to the next level.
Protecting your moments
The worst thing that can happen during a rendering process is losing data due to power fluctuation or power failure. The new generation of WD Black hard drives is equipped with Corruption Protection Technology (CPT), which helps to protect and limit the potential problem of data loss during power failure or power loss to the hard drive. Overall, CPT can save you time and money on your project.
Industry-leading 5-year limited warranty
Our engineers have a relentless dedication to keeping your data safe. This passion is reflected in the industry-leading 5-year limited warranty we stand behind on all WD Black drives. The evidence for our success lies in our capability to continually deliver next-generation technologies and in our ability to stand behind these products with industry-leading 5-year limited warranty coverage. WD Black is tested to a higher standard than conventional hard drives with more strenuous and aggressive testing over a longer period of time. This is our story of innovation, refinement and passion for performance hard drives.
Recommended use:
WD Black hard drives are tested and recommended for use in PCs, high-performance workstations, all-in-one PCs, gaming PCs, game consoles, home media PCs and notebook computers.
Desktop drives are not recommended for use in RAID environments, please consider using WD Red hard drives for home and small office, 1 to 5 bay NAS systems and WD Datacenter hard drives for 6 bay and greater NAS systems.
Upgrading your drive is easy
WD Acronis True Image, available as a free download on the WD Support site, enables you to copy all your data to a new drive so you don't have to reinstall your operating system to get all the benefits of a new drive.
Dynamic Cache
WD's dynamic caching algorithm improves performance in real time by optimizing cache allocation between reads and writes. For example, if there's an overwhelming percentage of read traffic as opposed to write traffic, the drive automatically allocates more cache for read data, which reduces congestion and improves overall drive performance.
NoTouch Ramp Load technology
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
The WD advantage
WD puts our products through extensive Functional Integrity Testing (F.I.T) prior to any product launch. This testing ensures our products consistently meet the highest quality and reliability standards of the WD brand. WD also has a detailed Knowledge Base with more than 1,000 helpful articles as well as helpful software and utilities. Our customer support lines have longer operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines are here to help or you can access our WD Support site for additional details.
Efficient dual processing
When it comes to processing power, more is always better. WD Black features a dual core processor that offers twice the processing power to maximize drive performance. Adding additional value, WD's Dynamic Cache technology increases performance by improving caching algorithms in real time and optimizing the cache allocation between reads and writes. This results in the drive automatically allocating more cache for read data, which reduces data congestion and increases overall performance.
Specifications
| Product Specifications |
|
 |
Interface |
SATA 6 Gb/s |
|
| Performance Specifications |
|
|
Rotational Speed |
7,200 RPM (nominal) |
|
Buffer Size |
64 MB |
|
Load/unload Cycles |
300,000 minimum |
|
| Transfer Rates |
|
Buffer To Host (Serial ATA) |
6 Gb/s (Max) |
|
| Physical Specifications |
|
|
Formatted Capacity |
2,000,398 MB |
|
Capacity |
2 TB |
|
User Sectors Per Drive |
3,907,029,168 |
|
| Physical Dimensions |
|
| English |
|
Height |
1.028 Inches |
|
Depth |
5.787 Inches |
|
Width |
4.00 Inches |
|
Weight |
1.66 Pounds |
|
| Metric |
|
Height |
26.1 mm |
|
Depth |
147 mm |
|
Width |
101.6 mm |
|
Weight |
0.75 kg |
|
| Environmental Specifications |
|
| Shock |
|
Operating Shock (Read) |
30G, 2 ms |
|
Non-operating Shock |
300G, 2 ms |
|
| Acoustics |
|
Idle Mode |
29 dBA (average) |
|
Seek Mode 0 |
34 dBA (average) |
|
Seek Mode 3 |
30 dBA (average) |
|
| Temperature (English) |
|
Operating |
32 F to 140 F |
|
Non-operating |
-40 F to 158 F |
|
| Temperature (Metric) |
|
Operating |
5 C to 55 C |
|
Non-operating |
-40 C to 70 C |
|
| Electrical Specifications |
|
| Current Requirements |
|
Power Dissipation |
|
Read/Write |
9.50 Watts |
|
Idle |
8.10 Watts |
|
Standby |
1.30 Watts |
|
Sleep |
1.30 Watts |
|
| Compatibility |
|
| Operating System |
|
Compatibility |
Windows/Mac |
