All stock codes associated to this product
CBN-18RU-66FS, CBN18RU66FS, 9350784000996

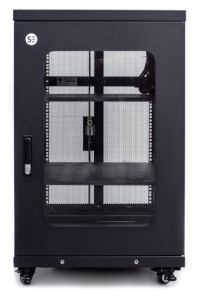

Serveredge CBN-18RU-66FS fully assembled server racks are a perfect solution for securely storing your standard 19" rack
mount equipment. This free-standing rack has been especially designed for use with Servers, Switches, AV Equipment, Security
Systems, Telephone Systems, Patch Panels and other Networking Equipment. This Serveredge rack is packed with features designed to simplify rack equipment installations and maintenance. The server rack comes with a 25-year manufacturer’s
warranty*.
PRODUCT SPECIFICATION
* Rack Height : 18RU
* Unit Dimensions : 600mm (W) x 600mm (D) x 988mm (H)
* Unit Weight : 53kg
* Shipping Dimensions : 660mm (W) x 660mm (D) x 1000mm (H)
* Shipping Weight : 55kg
* Colour : Black
* Weight Capacity - Stationary : 1000kg
* Grounding lug : Front and Back Door Frames
* Fixed Shelves Depth : 310mm
* Preset Mounting Distance (front to rear mounting rails) : 315mm
* Maximum Mounting Distance (front to rear mounting rails) : 550mm
* Minimum Mounting Distance (front to rear mounting rails) : 145mm
Product Includes
(1) Free Standing Server Rack
(1) 8 Way Horizontal PDU [8] 3 Pin AUS GPO Output; [1] 3 Pin Aus Plug Input, 10A, 240V
(1) 2 Way Roof Mount Fan
(2) Fixed Shelves (310mm deep)
(4) Lockable Castors
(4) Stabilizing Feet
(4) Adjustable 19" Mounting Rails
(2) Keys
(40) M6 screws
(40) M6 cage nuts
(40) M6 washers
(1) Split Perforated Mesh Door
(1) Front Tempered Glass Door
(2) Lockable Side Panels
Grounding Lugs - Front Door, Rear Door, Side Panels
Earth Straps - Front Door &Rear Door
PRODUCT FEATURE
• Designed for IT, Audio Visual, Security and Data equipment
• 1000kg of stationary load capacity
• Pre-installed lockable castors
• Levelling feet extend to allow enclosure to be positioned on
uneven floors and are removable when not required
• Convenient grounding system with grounding lugs on doors
and side panels
• Earth straps on front and rear doors
• Built in baying tabs allow enclosures to be combined securely
in rows (*Baying kit needs to be purchased separately)
• Includes (2) fixed shelves with 310mm depth
• Locking front glass door and rear split perforated mesh door
• Locking and removable side panels for easy access
• Nylon Bush lined cable entry glands at top and bottom to
protect cables from wear and tear
• Conforms to Standard ANSI/EIA RS-31 -D, IEC297-2, DIN4191;
PART1, DIN 4194;PAT7, GB/T3 47M 2-92*
• 25-year warranty* See T&s
