IMG 1 of 1
Our Price:
$95.55
RRP:
$110.95
You Save:
$15.40
or quickly purchase this product
In stock for shippingShips from our warehouse in 1-3 business days

Part Number:
315514
(?) Brand:
Manuf No:
SED-100MSC
SED100MSC
Shipping Weight:
0.5 KG (Includes product packaging)
Estimate Shipping
All stock codes associated to this product
SED100MSC, SED-100MSC, 9350784002785

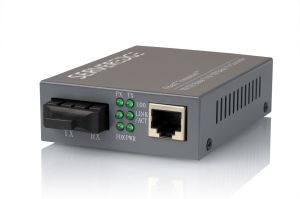

Serveredge 10/100Base-TX to 100Base-FX Multimode SC Fibre Media Converter (2km)



The built-in 10/100 switch enables the fiber cable connection to operate at 100 Mbps connected to either a 10BaseT or a 100BaseTX network, while remaining completely 100BaseFX standard-compliant.

Fiber connection can also operate in full duplex mode whether the RJ-45 port is connected to a full duplex switch or a half duplex hub, with the built-in switch providing the network segmentation that permits the maximum fiber distance. Each Media Converter provides a 10/100BaseT/TX auto-negotiating RJ-45 twisted-pair connector port featuring store-and-forward switching architecture. Auto-MDIX capability on the twisted-pair port allows for convenient connections.

PRODUCT SPECIFICATION


4.2 s (LIFO)
Latency: < 4.2 s (LIFO)

Throughput @ 100Base: 148,809 pps (64-byte packets)

Speed:

100BaseTX: 100/200 Mbps for half/full duplex
10BaseT: 10/20 Mbps for half/full duplex

Switching Method: Store-and-Forward

Maximum MAC Addresses: 1,024 entries

Memory: 256 KB

FIBER INTERFACE, MULTIMODE MODELS

Type: LED

Wavelength: 1300 nm nominal (1270 nm maximum, 1380 nm minimum)

Maximum Output Power: - 14.0 dBm

Minimum Output Power: - 20.0 dBm

Sensitivity: -33.0 dBm

Maximum Input Power: - 8.0 dBm

Link Power Budget: 13.0 dB

PHYSICAL CHARACTERISTICS

Case dimensions: 110mm x 81mm x 23mm

Weight: 150 grams

ENVIRONMENTAL CHARACTERISTICS

Operating Temperature: 32F ~ 104F (0C ~ 40C)

Storage Temperature: -13F ~ 158F (-25C ~ 70C)

Relative Humidity: 10 ~ 90%, non-condensing

POWER


External power adapter: 12 Volts DC; 600 mA

Power Consumption: 5 Watts Maximum

PRODUCT FEATURE

  • Built - In Twisted - Pair Port 10/100 Switch
  • Auto- Negotiation RJ45 Connector with Auto-MDIX
  • SC,ST,MTRJ or LC Connector
  • LEDs for Functions, Links & Activity
  • Link Fault Signaling For Use with Managed Switches
  • 1024 Mac Address Capacity
  • Store and Forward Architecture
  • Full and Half Duplex Operation
  • Singlemode Spans up to 100Km
  • Wall or Chassis Mountable
  • IEEE 802.3 10BaseT and IEEE 802.3u 100BaseTX & IEEE 802.3u 100BaseFX Compliant
  • Compliant to FCC part 15 Class A, CISPR Class A, VCCI Class A, CE Mark, CTick
  • Lifetime Warranty

No additional files, specification sheets, guides or documentation found for product.

Warranty: 1 Year Return to Base

Full manufacturers warranty details are available at the manufacturers web site.

Unless otherwise specified Techbuy is normally your first point of contact for warranty related returns, further information regarding our warranty policies and consumer guarantees is available on our policies and service & support pages.

To apply for return of a product just go to our returns page.

These terms are in addition to and do not affect any terms, conditions, guarantees and warranties implied by law.
