All stock codes associated to this product
AP7557, 1036202, 731304254102

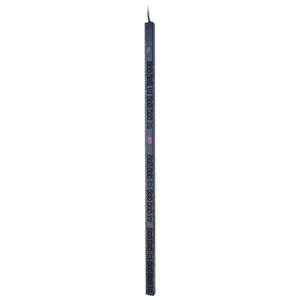

Basic Rack PDU
Rack PDU, Basic, Zero U, 11 kW, 230V, (36) C13 & (6) C19
APC Basic Rack PDU, Input: 400V 3PH, Input Connections: IEC 309 16A 3P+N+PE, Cord Length:3 feet ( 0.91 meters ), Output: 230V, Output Connections: IEC 320 C13,IEC 320 C19
AP7557
Product Overview
AP7557 Features
Toolless Rack Mounting Capabilities
Server cases do not require additional tools to mount into NetShelter Enclosures, which allows the users to quickly and easily mount units in the rear of the enclosure.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Vertical Mounting Capabilities
Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.
Basic Rack PDU Features & Benefits
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Low Cost Power Distribution
Provides a number of outlets to bring power to rack equipment at an affordable price.
Specifications:
Nominal Output Voltage
230V
Maximum Total Current Draw per Phase
16A
Output Connections
| (36) IEC 320 C13 |
 |
| (6) IEC 320 C19 |
 |
Nominal Input Voltage
400V 3PH
Cord Length
3feet (0.91meters)
Maximum Input Current per phase
16A
Net Weight
12.00lbs. (5.45kg)
Maximum Height
70.00inches (1778mm)
Maximum Width
2.19inches (56mm)
Maximum Depth
1.73inches (44mm)
Shipping Weight
19.50lbs. (8.86kg)
Shipping Height
84.00inches (2134mm)
Shipping Width
6.00inches (152mm)
Shipping Depth
5.00inches (127mm)
Operating Environment
23 - 113F (-5 - 45C)
Operating Relative Humidity
5 - 95%
Operating Elevation
0-10000feet (0-3000meters)
Storage Temperature
-13 - 149F (-25 - 65C)
Storage Relative Humidity
5 - 95%
Storage Elevation
0-50000feet (0-15000meters)
Regulatory Approvals
C-tick, CE, GOST, MIC, Queensland Australia, VDE
Standard Warranty
2 years repair or replace
PEP
Available in Documentation tab
EOLI
Available in Documentation tab
Other Environmental Compliance
China RoHS
