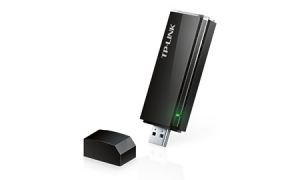

TP-LINKs Archer T4U comes with the next generation Wi-Fi standard 802.11ac, 3 times faster than wireless N speeds. With 867Mbps wireless speeds over the crystal clear 5GHz band or 300Mbps over the 2.4GHz band, the Archer T4U is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
AC1200 Wireless Speed
The 5GHz 867Mbps is perfect for HD video streaming and lag-free online gaming, while using 2.4GHz 300Mbps Wi-Fi for normal use such as web surfing
USB 3.0 - Up to 10X faster than USB 2.0
Experience blazing speed data transfers of up to 4.8Gbps with USB 3.0 - the latest USB connectivity standard. USB 3.0 transfers data up to 10X faster than USB 2.0 and is also backward compatible with USB 2.0. This high-speed transfer rate combine with 802.11ac ideal for HD streaming, online gaming and large file downloads.
The Best of Both Bands
TP-LINKs Archer T4U is an AC1200 Wireless Dual Band USB Adapter giving users the ability to access crystal clear 5GHz connections or legacy 2.4GHz connections to upgrade their notebook or PCs wireless capabilities to operate with new 5GHz band wireless networks, while ensuring that they can still access legacy 2.4GHz band wireless networks.
Bundled USB Extension Cable
Archer T4U equipped with the 1m USB 3.0 extension cable, which extend the USB connection length, making it more convenient to plug the USB device in & out of the USB socket. Its elegant and stylish design is suitable for home deployment and will even improve the look of your home and office.
Features
- Supports 802.11ac standard- The next generation of Wi-Fi
- SuperSpeed USB 3.0 portUp to 10x faster than USB 2.0
- Dual Band connections for lag-free HD video streaming and gaming
- Maximum speed up to 5GHz 867Mbps or 2.4GHz 300Mbps
- Backward compatible with 802.11 a/b/g/n products
- Supports ad-hoc and infrastructure mode
- Easy wireless security encryption at a push of the WPS button
- Supports Windows 8/7/XP 32/64bit
- Easy Wireless Configuration Utility
- Equipped with a USB 3.0 1.0m Extension Cable for flexible deployment
Specifications
HARDWARE FEATURES |
Interface |
USB 3.0 |
Button |
WPS button |
Dimensions (W X D X H) |
3.61.20.6 in. (92.22914.6mm) |
Antenna Type |
Omni Directional |
WIRELESS FEATURES |
Wireless Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Frequency |
5GHz 2.4GHz |
Signal Rate |
5GHz 11ac: Up to 867Mbps(dynamic) 11a: Up to 54Mbps(dynamic) 2.4GHz 11n: Up to 300Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
EIRP |
<20dBm (EIRP) |
Reception Sensitivity |
5GHz 11a 6Mbps: -88dBm 11a 54Mbps: -71dBm 11ac HT20: -65dBm 11ac HT40: -60dBm 11ac HT80: -56dBm 2.4GHz: 11b 11Mbps: -90dBm 11g 54Mbps: -73dBm 11n HT20: -71dBm 11n HT40: -68dBm |
Wireless Modes |
Ad-Hoc / Infrastructure mode |
Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
OTHERS |
Certification |
CE, FCC, RoHS |
Package Contents |
Wireless Adapter Archer T4U Resource CD Quick Installation Guide USB Extension Cable |
System Requirements |
Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
Environment |
Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
