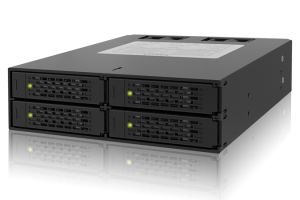

Introducing the Icy Dock ToughArmor MB994SP-4SB-1 Full Metal Quad Bay 2.5" SATA 6Gbps Hard Drive/SSD Hot Swap Mobile Rack Cage for use in a single 5.25" device bay. The MB994SP-4SB-1 is predicated off the incredibly popular MB994SP-4S, while taking its general concept but, with a SATA only interface and adding the fan power switch. In addition, there is only one 4 pin power connector that will reduce the amount of cables required. The MB994SP-4SB-1 allows for many more users to use this backplane in their homes with the reduced cost. The dual 40mm cooling fans to in addition to the power switch for the fans allow for the best flexibility Turn off when using SSDs and on when using mechanical SATA hard drives. Furthermore, this device utilizes Active Power Technology, so that the device only power up if there are drives installed.
The MB994SP-4SB-1 is constructed of full metal to hold up in the toughest of conditions. It includes ventilation slots on the front and back for maximum airflow to keep your drives running cool, and an LED is placed on the front of each drive tray to give the user drive status at all times. The ToughArmor's full metal design is also perfect for industrial and medical devices that may require a flammability rating as the full metal material is considered to already comply with flammability requirements.
The MB994SP-4SB-1 utilizes our EZ Slide Mini Trays, making drive interchangeability and maintenance completely hassle free. The trays are built using full metal so that they are durable for many lifetimes, but will not weigh you down when transporting your data from system to system. And featuring a full cage design, the added top drive cover provides added protection while moving the drive. The trays are also designed to accommodate 9.5mm, 12.5mm & 15mm drives giving you the ultimate universal 2.5" hot swap bay.
Utilizing its small form factor, the MB994SP-4SB-1 is perfect for use in gaming PCs, small form factor cases where 5.25 bays are limited and large drive capacity or SSDs are needed. This also will benefit compact RAID 5 systems. It is built to function in the most demanding environments including military and law enforcement deployment, as well as manufacturing conditions such as embedded control systems and factory automation systems. The heavy metal design makes it ideal for placement in rugged environments.
Interchangeable hard drive tray with:
Drive Tray
EZ Slide Mini Tray MB991TRAY-B Drive Tray for ToughArmor MB991, MB994 Series
Key Features
- Heavy duty full metal construction with commercially designed for Medical & Military systems
- Media servers, and IPCs, approved & used by Tier 1 companies.
- Perfect for rugged applications and complies to flammability requirements.
- Fits 4 x 2.5" SATA I / II / III HDD/SSD.
- Accommodates Drives with up to 15mm Height.
- Fits 4 Drives into a Single 5.25" Device Bay.
- 1 x 4 pin power connector to reduce cable connections.
- Status LED on Front for Each Drive.
- Full Metal EZ Slide Mini Tray System with Full Cage Design.
- Small Form Factor Perfect for IPC, Servers, and Small Form Factor Cases.

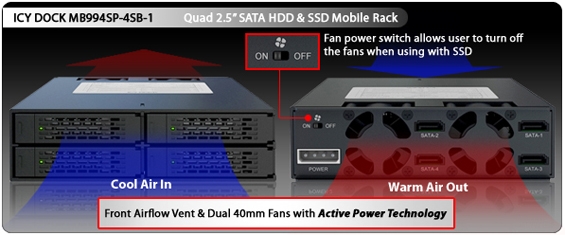

- Fan Power Switch Allow User to turn off the fans when using SSD.
- Dual 40mm Cooling Fans.
- Heavy Duty Full Metal Construction.
- Support SATA 6Gbps.
- Top Cover for the Tray Adds Extra Drive Protection.
- Active Power Technology – Device only power up if there are drive installed.
3 Years Warranty
Specifications
ICY DOCK ToughArmor MB994SP-4SB-1 4 x 2.5" SATA 6Gbps HDD / SSD Mobile Rack / Cage in 1 x 5.25” bay
|
Model Number :
|
MB994SP-4SB-1
|
|
|
|
|
Host Interface :
|
4 x 7pin SATA
|
|
|
Drive Fit :
|
4 x 2.5" SATA I / II / III SSD or hard drive
|
|
|
Drive Bay :
|
Single 5.25" half height device bay
|
|
|
Transfer Rate :
|
Up to 6 Gb/sec. (depending on hard drive speed)
|
|
|
Power Input :
|
Single 4pin Molex power port
|
|
|
Insert& Extract connection Via :
|
Direct SATA hard drive connection
|
|
|
Structure :
|
Aluminum & SECC
|
|
|
Drive Cooling :
|
Dual 40mm rear cooling fan + fan power switch
Metal heat dispersion
|
|
|
Power Indicator :
|
Solid Green LED
|
|
|
HDD Access Indicator :
|
Flashing Amber LED
|
|
|
Dimension (L x W x H) :
|
6.70" x 5.75" x 1.63"
|
|
|
|
