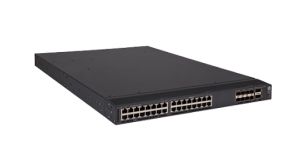

HP FlexFabric 5700-32XGT-8XG-2QSFP+ Switch (JG898A)
Overview
The HP FlexFabric 5700 Switch Series provides an open door for expanding your enterprise network by adding capacity with local switching and L2/L3 support. Take advantage of IRF enhancements for spine/leaf configurations, to simplify network management and expand server connectivity. Resilience and ease of management come handin-hand with the FlexFabric 5700.
While IRF reduces management complexities by up to 88%, it also delivers <50msec convergence time. You can rely on the FlexFabric 5700 to lower TCO with up to a 25% lower cost than competing devices.
Features
Expand Your Data Center Network with Confidence
The HP FlexFabric 5700 Switch Series expands your enterprise network by adding local switching capacity for better scalability, so that you can support more customers.
Up to thirty (30) HP FlexFabric switches can be added to the network and managed by one Controlling Bridge (CB) switch improving server connectivity. (future)
The FlexFabric 5700 Switch Series gives you choices that fit your budget and environment by offering 1/10GbE ports supporting SFP and BASE-T with 10/40GbE uplinks.
High-Performance Data Center Switching
The HP FlexFabric 5700 Switch Series delivers 960Gbps switching capacity for the most demanding applications.
Provides local switching and participates in the network unlike competing port multiplexers.
Low latency, under 1.5us 10GbE latency, provides improved throughput and fewer lost packets.
Business Agility and Resilience with Comware 7
The HP FlexFabric 5700 Switch Series delivers IRF <50msec convergence time enabling faster application response time.
The 5700 Switch Series supports spine/leaf IRF to enhance network agility with ECMP and faster convergence.
In Service Software Update (ISSU) enables high availability with updates accomplished without a reboot or power cycle, in the background.
Simplicity and Lower TCO
The HP FlexFabric 5700 Switch Series simplifies switch management by up to 88% with IRF.
No extra hidden costs with simple one license per switch for all OS features.
Up to 25% lower cost than competing port multiplexers for lower TCO.
Automate tedious tasks with software defined network (SDN) and reclaim wasted resources.
Specifications
Ports
-
- 32 RJ-45 1/10GBASE-T ports
- 8 fixed 1000/10000 SFP+ ports
- 2 QSFP+
- Included
Memory and processor
512 MB flash; packet buffer size: 9 MB; 2 GB SDRAM
Latency
-
Throughput
714.2 Mpps
Routing/switching capacity
960 Gbps
Stacking capabilities
-
Management features
-
- IMC - Intelligent Management Center
- command-line interface
- out-of-band management
- SNMP Manager
- Telnet
- FTP
Power and operating requirements
Power consumption
350 W (maximum)
Input voltage
100 - 240 VAC; -48 to -60 VDC (depending on power supply chosen)
Operating temperature range
0 to 45C
Operating humidity range
10 to 90% (noncondensing)
Dimensions and weigh
Minimum dimensions (W x D x H)
43.99 x 66 x 4.37 cm
Weight
13 kg
What's included
Differentiator
The HP FF 5700-32XGT-8XG-2QSFP+ Switch has 32 100/1000/10000 Copper ports, 8 SFP+ ports and 2 QSFP+-ports, dual hot-pluggable power supplies and fan trays. It is ideally suited for deployment at the server access layer in large enterprise data center
What's in the box
-
- (1) HP Flex Fabric 5700-32XGT-8XG-2QSFP+ Switch
-
Warranty
1 year warranty: with advance replacement and 10 calendar day delivery (available in most countries);Electronic and telephone support: limited electronic and telephone support is available from HP refer to www.hp.com/networking/support for details on the support provided and the period during which support is available;Software releases: refer to www.hp.com/networking/support for details on the software releases provided and the period during which software releases are available for your product(s)
