ADM2PX4
M2 PCIe SSD - PCIe 3.0 4-Lane Adapter
ADM2PX4
Overview
This M2 PCIe SSD adapter enable installing the M2 PCI SSD into a PCIe 4 lane slot of any Desktop system or server. Designed to accommodate M2 PCIe SSD in 42, 60 or 80 mm length, the SATA - M2 SSD adapter is a simple economical solution to replace a mechanical hard drive with a low power, shock resistant and high performance Solid State Drive. Once installed, the M2 PCIe SSD becomes a high-speed solid state drive to the OS.
The adapter can accommodate M2 PCIe SSD in length of 30, 42, 60 and 80 mm.

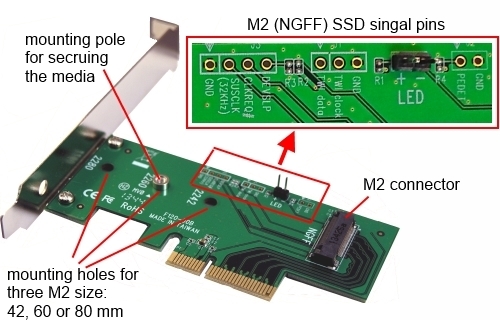

M2 PCIe SSD installation
( a 42 mm length M2 PCIe SSD is shown for illustration purpose and is not part of the adapter)
Features
- Install M2 PCIe SSD* into PCIe 4-Lane slot
- Support M2 PCIe Gen3 and PCIe Gen2 SSD in length of 30, 42, 60 and 80 mm
- Supports dual-sided SSD module with 1.5mm component height on the top and bottom side
- Support PCIe 1.0, 2.0 or 3.0 slot
- Maximum transfer rate depends on the speed of the M2 PCIe SSD
- Installable in standard height or low profile system (low profile bracket included)
- Replace any SATA hard drive in Desktop or server equipment with a low power and shock resistant M2 PCIe SSD
- M2 PCIe SSD can be the primary bootable device containing the OS and applications (requires support in the system BIOS)
- Industrial operating temperature: -40 C to + 85 C
- OS independent. No software driver required
M2 PCIe SSD is not the same as the M2 SATA SSD. M2 SATA SSD can be installed into this adapter but will not be operable.
Specifications
- 1 M2 (NGFF) card connector plus one mounting pole
- Mounting pole can be moved to lock down media in the length of 30, 42, 60 and 80 mm
- Power from PCIe slot
- Industrial operating Temperature: -40 C to + 85 C
- Operating Humidity: 5% - 95% (non condensing)
- Storage Temperature: -40 C to + 85 C
- Storage Humidity: 5% - 95%
- Warranty: One Year
