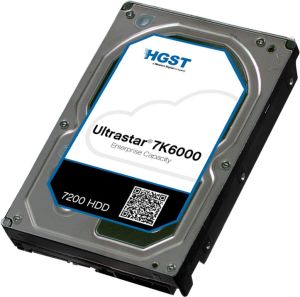

When you are looking for economical, high-capacity enterprise-class storage,
look to the Ultrastar® 7K6000. It delivers the value and performance you need
for data center storage. For best-in-class random write and sequential
performance, the Ultrastar® 7K6000 delivers 6TB of capacity in a 3.5-inch form
factor. Innovations like patented Rotational Vibration Safeguard (RVS) sensor
technology optimize drive reliability in multi-drive RAID arrays and
rack-mounted systems. Engineered for the highest quality, the Ultrastar 7K6000
passes stringent reliability testing. The ultra-reliable Ultrastar 7K6000
reduces downtime, eliminates service calls and minimizes TCO. Rely on the
Ultrastar® 7K6000 to deliver value and performance to the cost-sensitive data
center.
Best-in-class random write and sequential
performance
Reliable, field-proven, 7th generation
5-disk design
Compared to prior generation 7K4000
- - 50% more capacity (6TB vs. 4TB)
- - 33% better power efficiency (Watts/TB)
- - Up to 3X faster random write performance
thanks to media cache architecture
- - 25% faster sequential read/write
performance
2M hours MTBF2 rating and 5-year limited
warranty
6Gb/s SATA &12Gb/s SAS provides
compatibility with next gen data centers
12Gb/s SAS backwards compatible with 6Gb/s
SAS
128MB cache buffer improves response time
and data management
Secure erase and Self-Encrypting Drive
(SED) options
Advanced format 4Kn and 512e models
512n format available in 4TB and 2TB
capacities supports legacy systems
General | |
Interface | SATA
6Gb/s |
Capacity
(GB) | 4TB |
Sector Size (Variable,
Bytes/sector) | 4Kn: 4096 / 512e:
512 |
Max Areal Density
(Gbits/sq. in.) | 512e/4Kn: 703 (6TB),
599 (<6TB) 512n*: 623 |
Form
Factor | 3.5-inch
HDD |
| |
Performance | |
Data Buffer
(MB) | 128 |
Rotational Speed
(RPM) | 7200 |
Latency Average
(ms) | 4.16 |
Interface Transfer Rate
(MB/sec, max) | 600 |
Sustained Transfer Rate
(MB/sec, typ.) | MB/s: 227 (6TB), 202
(<6TB) / MiB/s: 216 (6TB), 192 (<6TB) |
Seek Time (read, ms,
typical) | 7.6 (Read), 8.0
(Write) |
| |
Reliability | |
Error Rate
(non-recoverable, bits read) | 1 in
10^15 |
MTBF (M
hours) | 2 |
Load/Unload
Cycles | 600,000 (at
40C) |
Availability (hrs/day x
days/wk) | 24x7 |
Reliability - Warranty
(yrs) | 5 |
| |
Acoustics | |
Idle
(Bels) | 2.9 (Idle), 3.6
(Operating) |
| |
Power | |
Requirement | +5 VDC, +12
VDC |
Operating (W,
typical) | 9.1 |
Low Power Idle (W,
avg) | 7.1 |
Power Consump.
Efficiency Index (W/GB) | 1.2W/TB / 0.0012W/GB
(6TB) |
| |
Physical
Size | |
Z-Height
(mm) | 26.1 |
Dimensions (width x
depth, mm) | 101.6 (+/-0.25) x
147 |
Weight (g,
max) | 715 |
| |
Environmental
(operating) | |
Ambient
Temperature | 5 to
60C |
Shock (half-sine
wave) | 70 |
Vibration (5 to 500
Hz) | 0.67
(XYZ) |
| |
Environmental
(non-operating) | |
Ambient
Temperature | -40 to
70C |
Shock (half-sine
wave) | 300 |
Vibration (5 to 500
Hz) | 1.04 (XYZ)
