All stock codes associated to this product
ArcherT9E, Archer T9E, 6935364080150

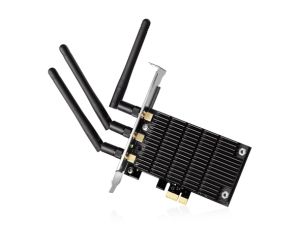

- Easy Installation Upgrade your desktop system easily by plugging the Archer T9E Wi-Fi adapter into an available PCI-E slot.
- Hi-Speed Wi-Fi Up to 1900Mbps Wi-Fi speeds (1300Mbps on 5GHz band or 600Mpbs on 2.4GHz band)
- 802.11ac Dual Band 3 times faster than the 802.11n standard, perfect for hi-intensity network usage
- Backward Compatibility With support for 802.11 a/b/g/n standards
- Beamforming Technology Receives more directional Wi-Fi signals, improving speed and reliability
- Ultimate Range 3 external antennas ensure a greater range of Wi-Fi connection and stability
802.11ac - The Next Generation of Wi-Fi?
TP-LINK’s Archer T9E comes with the next generation Wi-Fi standard – 802.11ac, 3 times faster than wireless N speed. With 1300Mbps wireless speeds over the crystal clear 5GHz band or 600Mbps over the 2.4GHz band, the Archer T9E is the superior choice for seamless HD streaming, online gaming and other bandwidth-intensive tasks.
AC1900 Wireless Speed
The 5GHz 1300Mbps is perfect for HD video streaming and lag-free online gaming, while using 2.4GHz 600Mbps Wi-Fi for normal use such as web surfing.
The Best of Both Bands
TP-LINK’s Archer T9E is an AC1900 Wireless Dual Band PCI Express Adapter, giving users the ability to access crystal clear 5GHz connections or legacy 2.4GHz connections to upgrade their PC’s wireless capabilities to operate with new 5GHz band wireless networks, while ensuring that they can still access legacy 2.4GHz band wireless networks.
Beamforming Technology for Efficient Wi-Fi
Archer T9E utilizes beamforming technology to receive more directional Wi-Fi signals for improved performance.
WPA/WPA2 Encryptions – Advanced Security
WPA/WPA2 encryption standards ensure your wireless connection is safe from intruders.
Specifications
HARDWARE FEATURES
|
Dimensions (W X D X H) |
4.5 4.8 0.8 in. (115.2 120.8 21.5 mm) |
Interface |
PCI Express |
Antenna Type |
Omni Directional |
WIRELESS FEATURES
|
Wireless Standards |
IEEE 802.11ac, IEEE 802.11a, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
Wireless Security |
Support 64/128 bit WEP, WPA-PSK/WPA2-PSK, 802.1x |
Frequency |
5GHz 2.4GHz |
Modulation Technology |
DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
Signal Rate |
5GHz 11ac: Up to 1300Mbps(dynamic) 11a: Up to 54Mbps(dynamic) 2.4GHz 11n: Up to 600Mbps(dynamic) 11g: Up to 54Mbps(dynamic) 11b: Up to 11Mbps(dynamic) |
Reception Sensitivity |
5GHz 11a 6Mbps: -85dBm 11a 54Mbps: -68dBm 11ac HT20: -59dBm 11ac HT40: -54dBm 11ac HT80: -51dBm 2.4GHz: 11b 11Mbps: -80dBm 11g 54Mbps: -68dBm 11n HT20: -64dBm 11n HT40: -61dBm |
Transmit Power |
<20dBm (EIRP) |
Wireless Modes |
Ad-Hoc / Infrastructure mode |
OTHERS
|
Certification |
CE, FCC, RoHS |
Package Contents |
Wireless Adapter Archer T9E Resource CD Quick Installation Guide |
System Requirements |
Windows 8.1 (32/64bits), Windows 8 (32/64bits), Windows 7 (32/64bits), Windows XP(32/64bits) |
Environment |
Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
