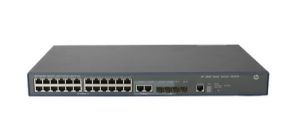

HP 3600-24 v2 SI Switch (JG304B)
The HP 3600 SI Switch Series delivers resiliency, security, and reliability at the enterprise edge. This Basic Layer 3 Fast Ethernet switch series supports IRF stacking, Static & RIP Routing, ACLs, IPv6 and PoE+.
The HP 3600 SI Switch Series can be managed with the optional HP Intelligent Management Center (IMC) Software Platform for a single view of your entire network and includes Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support.
Features
Resilient Basic Layer 3 Fast Ethernet Access Layer Switches
The HP 3600 SI Switch Series delivers resiliency, security, and reliability at the enterprise edge.
The 3600 SI Switch Series come with 24- or 48-ports switching at10/100 and four SFP Gigabit Ethernet ports for stacking and uplinks and up to 720W of PoE+ power with external EPS/RPS.
The HP Intelligent Resilient Framework (IRF) virtualizes up to nine physical switches into one logical device for simpler, flatter, more agile networks.
Basic Layer 3 features include support for static and RIP routing.
Limited Lifetime Warranty 2.0 with 3 years 24x7 phone support and no software licensing required.
Enhanced Quality of Service (QoS)
The HP 3600 SI Switch Series supports advanced classifier-based QoS which classifies traffic using multiple match criteria based on Layer 2, 3, and 4 information; applies QoS policies such as setting priority level and rate limit to selected traffic on a per-port or per-VLAN basis.
Provides traffic prioritization with congestion actions: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ), and weighted random early discard (WRED).
Integrated and Distributed Security Enforcement
The HP 3600 SI Switch Series supports flexible authentication methods including 802.1X, MAC, and Web Authentication for greater security and policy-driven application authentication.
Identity-driven security and access control with automatic VLAN assignment and per-user ACLs allows access to specific network services without risking network security.
Security features include: IP source guard, STP BPDU port protection, and RADIUS/HWTACACS.
Single View of the Network
The HP 3600 SI Switch Series can be seamlessly managed with the optional HP Intelligent Management Center (IMC) Software Platform to provide end-to-end network transparency with consistent network experience through comprehensive configuration, compliance and policy management.
RMON and sFlow provides advanced monitoring and reporting capabilities for statistics, history, alarms, and events.
Specifications
Differentiator
-
- HP 3600-24 SI Switch with 24 10/100Base-T ports, 4 SFP GE ports and 2 10/100/1000TX(combo) ports
Ports
-
- (24) RJ-45 autosensing 10/100 ports
- (2) SFP dual-personality 10/100/1000 ports
- (2) SFP 1000 Mbps ports
Memory and processor
-
- storage: 256 MB SDRAM, 128 MB flash
- Packet buffer size: 2 MB
Latency
-
- 100 Mb Latency: < 6 s
- 1000 Mb Latency: < 5 s
Throughput
-
Routing/switching capacity
-
Stacking capabilities
-
Management features
-
- Imc - intelligent management center
- Command-line interface
- Web browser
- Snmp manager
Dimensions and weight
Dimensions (W x D x H)
17.32 x 10.24 x 1.72 in (43.99 x 26.01 x 4.37 cm)
Weight
11.02 lb (5 kg)
What's included
What's in the box
-
- (1) HP 3600-24 v2 SI Switch
Warranty
-
- Limited Lifetime warranty: Advance hardware replacement with next-business-day delivery (available in most countries). See www.hp.com/networking/warrantysummary for duration details.
- Electronic and telephone support: limited electronic and telephone support is available from HP- for details on the duration of support provided with your product purchase
- refer to www.hp.com/networking/warrantysummary.;Software releases: for details on the software releases available with your product purchase
- refer to www.hp.com/networking/warrantysummary.
